MA273 (de_en)
Montageanleitung
PV-Kupplungsbuchse PV-KBT4-EVO 2-UR
PV-Kupplungsstecker PV-KST4-EVO 2-UR
MC4-Evo 2
Inhalt
Einleitung �������������������������������������������������������������������������������������1
Sicherheitshinweise ���������������������������������������������������������������������2
Erforderliches Werkzeug ��������������������������������������������������������������3
Leitfaden zur Konfiguration der Steckverbinder ����������������������������4
Vorbereitung der Leitung ��������������������������������������������������������������5
Crimpen ��������������������������������������������������������������������������������������6
Montageprüfung ��������������������������������������������������������������������������7
Stecken und Trennen �������������������������������������������������������������������8
Hinweise zur Installation ���������������������������������������������������������������9
Technische Daten ����������������������������������������������������������������������10
Notizen ������������������������������������������������������������������������������11 – 12

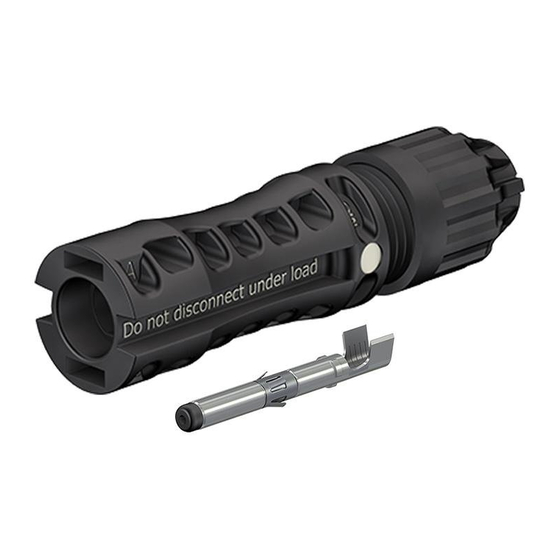

Kupplungsbuchse
Female coupler
PV-KBT4-EVO 2/...
Einleitung
MC4-Evo 2 Steckverbindungen garantieren hohe Schutzgrade
nach IP65 und IP68 nach IEC 60529� Die Verriegelung der Steck-
verbinder nach NEC 2020 durch den Locking type-Verschluss
garantiert höchste Sicherheit gegen unbeabsichtigtes Trennen
und ist nur mit dem Werkzeug PV-MS-PLS/2 entriegelbar�
MA273 (de_en)
Assembly instructions
PV female coupler PV-KBT4-EVO 2-UR
PV male coupler PV-KST4-EVO 2-UR
MC4-Evo 2
Content
Introduction ���������������������������������������������������������������������������������1
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Guideline for configuring the connectors ��������������������������������������4
Cable preparation ������������������������������������������������������������������������5
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Mating and disconnecting ������������������������������������������������������������8
Notes on installation ��������������������������������������������������������������������9
Technical Data ���������������������������������������������������������������������������10
Notes ��������������������������������������������������������������������������������11 – 12
Verschlusskappen/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
Introduction
MC4-Evo 2 connectors guarantee high ingress protection of IP65
and IP68 according to IEC 60529� The locking system of the
connectors in accordance with NEC 2020 guarantees optimum
prevention against unintended disconnection� Unlocking can be
realized only using the tool PV-MS-PLS/2�
Kupplungsstecker
Male coupler
PV-KST4-EVO 2/...
1 / 12

Werbung

loading

Inhaltszusammenfassung für Staubli PV-KBT4-EVO 2-UR

  • Seite 1 MA273 (de_en) MA273 (de_en) Montageanleitung Assembly instructions PV-Kupplungsbuchse PV-KBT4-EVO 2-UR PV female coupler PV-KBT4-EVO 2-UR PV-Kupplungsstecker PV-KST4-EVO 2-UR PV male coupler PV-KST4-EVO 2-UR MC4-Evo 2 MC4-Evo 2 Inhalt Content Einleitung �������������������������������������������������������������������������������������1 Introduction ���������������������������������������������������������������������������������1 Sicherheitshinweise ���������������������������������������������������������������������2 Safety Instructions �����������������������������������������������������������������������2 Erforderliches Werkzeug ��������������������������������������������������������������3 Tools required ������������������������������������������������������������������������������3...
  • Seite 2 Dokument beschrieben anwendbar werden� For more information, contact Stäubli • Für mehr Informationen Stäubli kontaktieren www�staubli�com/electrical • www�staubli�com/electrical Anforderungen an das Personal Requirements for personnel Die Montage und Installation dürfen ausschließlich von einer...
  • Seite 3 Order no. 1.5/2.5/4/6 mm² PV-AZM-156 32.6027-156 (14/12/10 AWG) 4/6/10 mm² PV-AZM-410 32.6027-410 (12/10/8 AWG Hinweis: Note: Bedienungsanleitung MA267, Operating instructions MA267, www�staubli�com/re-downloads�html www�staubli�com/re-downloads�html (ill. 2) (ill. 2) Crimpzange PV-CZM��� und Lokator� Crimping pliers PV-CZM��� and locator� Crimpbereich Crimpzange Lokator Crimping range Crimping pliers Locator 2.5/4/6 mm²...
  • Seite 4 Leitfaden zur Konfiguration der Steckverbinder Guideline for configuring the connectors 1. MC4-Evo 2 Produktkonfiguration unter TÜV Rheinland 1. MC4-Evo 2 product configuration along with Zertifizierung TÜV Rheinland certifcation An den Steckverbindern angeschlossene Leitungen müssen für Cables connected to the connector shall be suitable for use in die Verwendung in photovoltaischen Systemen geeignet sein und photovoltaic systems and shall comply with the requirements of den Anforderungen von IEC 62930 entsprechen�...
  • Seite 5 Es sind, verzinnte Leiter zu verwenden� Keine blanken* oder Use tinned copper conductors� Do not use uncoated (bare*) bereits oxidierte Leiter verwenden� Alle Staubli PV-Leitungen nor already oxidized conductors� All Staubli PV cables have haben hochwertige, verzinnte Leiter� Aus Sicherheitsgründen high-quality, tinned conductors� For safety reasons, Stäubli untersagt Stäubli die Verwendung von PVC-Leitungen sowie...
  • Seite 6 Crimpen Crimping (ill. 9) (ill. 9) Klemmbügel (K) öffnen und festhalten� Open clamp (K) and hold tight� • • Kontakt in den passenden Quer- Insert the contact in the appropriate • • schnittsbereich einlegen� cross-section range� Crimplaschen (C) nach oben drehen� Turn the crimping flaps (C) upwards�...
  • Seite 7 Montageprüfung Assembly check (ill. 13) (ill. 13) Angecrimpten Kontakt von hinten in die Insert the crimped contact into the Isolation bis zum Einrasten einführen� insulator of the male or female coupler Es ertönt ein „Klick“-Geräusch, sobald until engaged� dieser vollständig eingeführt ist� You will typically hear a “click”...
  • Seite 8 Stecken und Trennen Mating and disconnecting (ill. 16) (ill. 16) Stecken: Mating: Leitungskupplungen zusammenstecken Mate the cable coupler until a „click“ bis ein „Klick“ hörbar ist� Korrektes can be heard� Check correct engage- Einrasten durch Ziehen an der Leitungs- ment by lightly pulling on the connector kupplung kontrollieren (Zugkraft max�...
  • Seite 9 Hinweise zur Installation Notes on installation Hinweis Note Wenn der Steckverbinder in Niederspannungs-Gleichstrom If the connector is to be used in low-voltage DC applications Anwendungen für andere Zwecke als in einem Photovoltaik- other than those in a photovoltaic array, please consult the infor- System verwendet werden soll, befolgen Sie bitte die Hinweise mation as provided in the Stäubli Technical Description Report�...
  • Seite 10 Technische Daten Technical Data MC4-Evo 2 Typenbezeichnung Type designation Ø 4 mm Steckverbindersystem Connector system DC 1500 V (IEC 62852:2014+Amd.1:2020) DC 1500 V (UL 6703) Bemessungsspannung Rated voltage DC 1500 (JET) 39 A (2.5 mm²) 45 A (4.0 mm²) Bemessungsstrom (IEC) Rated current (IEC) 53 A (6.0 mm²) 69 A (10.0 mm²)
  • Seite 11 Notizen/Notes: MA273 11 / 12...
  • Seite 12 Notizen/Notes: Hersteller/Manufacturer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 12 / 12 MA273...
