How to use

I. Method for remote control type
Operate using a remote control (each button on the remote control is the same as that of an actual fan):
ON/OFF:
When this button is pushed, the fan will start at a low speed; by pressing this button again, the fan will stop
working.
Timing selection:
When the fan is under working, if this button is pushed, it will enter timing status and the setting at this time is 1
hour. The timing can be selected from 1h to 12h. When the timer is set to 12h, if this button is pushed, the

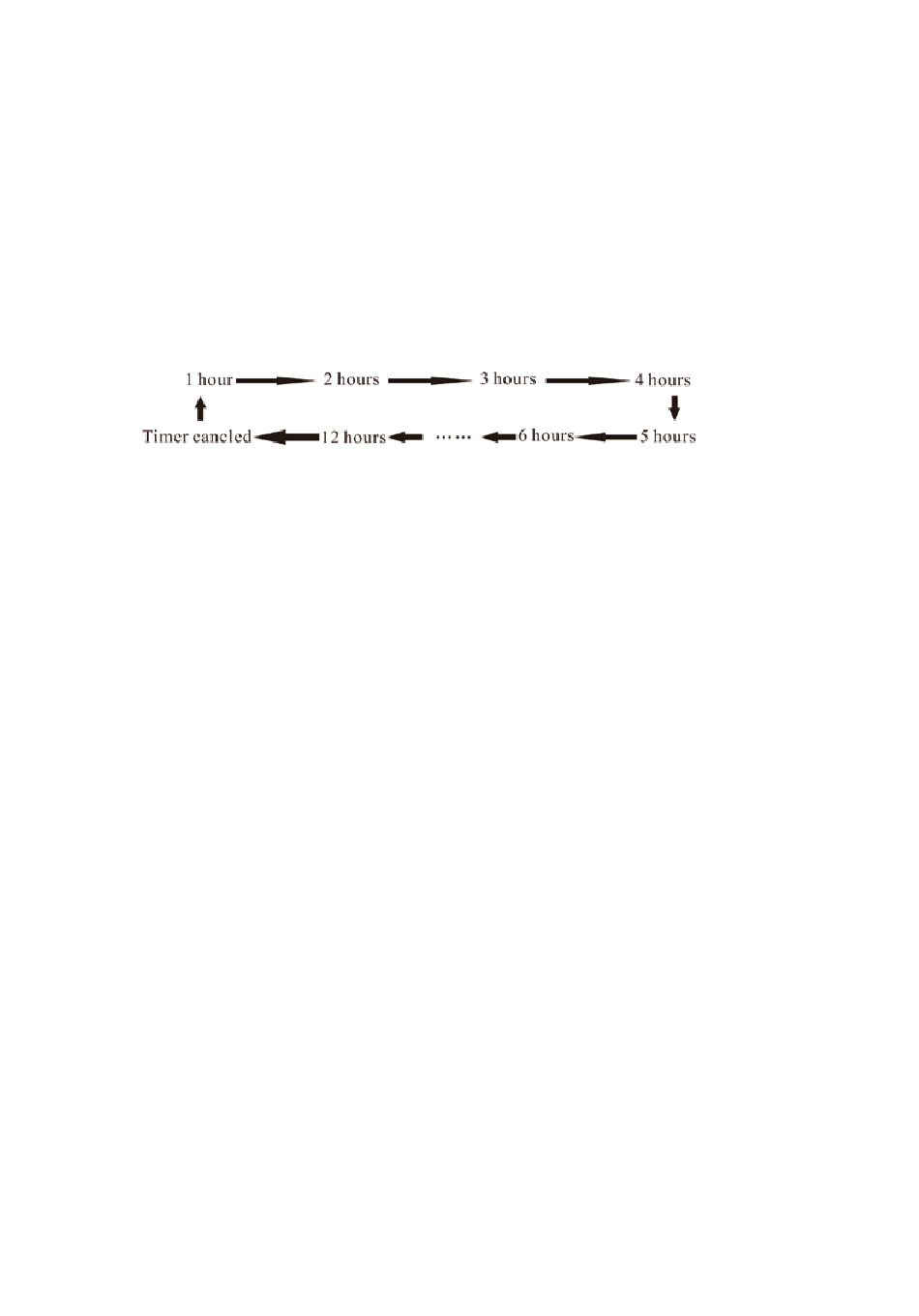

timing selection will be canceled. The timing hours change as per the way shown below:
Selection of wind:
This button is to select the wind mode. When this button is repeatedly pushed, the wind mode will change
from normal wind, natural wind, sleep wind and normal wind in turns; the three different wind modes have
following features:
Normal wind: the normal wind mode is simply the Low, Medium & High fan speed speeds.
Natural wind: the natural wind mode automatically selects wind speed randomly as you would find outdoors.
The natural wind also has low, medium and high speeds.
Sleeping wind: the sleeping wind allows you to set a speed at low, medium and high.
The wind speed of these three sleeping wind modes changes as below:
1. High sleeping wind: the air flows with high speed for half an hour, then drops to medium speed for half an
hour, and finally drops to low speed.
2. Medium sleeping wind: the air flow begins with medium speed for half an hour and finally drops to low
speed.
3. Low sleeping wind: the air flows at a low natural wind speed, till the preset time is reached or the fan is
turned off.
Wind speed:
When this button is pushed, three different wind speeds of low, medium and high can be set.
Oscillation:
When this button is pushed, the fan starts to oscillate the wind by pressing this button again, the fan stops
oscillate the wind.
※ The above operation can also be carried out on the control panel of the fan body, with the
method same as the one described above.
Note: only when "ON/OFF" is pushed, the fan can send wind.
Proper usage of the remote control and battery replacement
1. When the remote control is used, make sure that the head of the front of the remote control is aligned with
the receiving window on the fan body.
2. The remote control can be about 5m from the front of the fan body; it can be normally operated if the
deviation is within 30 degrees.
3. Avoid direct sunlight on the receiving window, so as not to affect the effect of the receiver.
4. If the remote control is not used for a long time, remove the battery and handle it properly.
5. When using the remote control, install the battery. The remote control operates on one lithium battery, with
the insertion method as shown below:
a. Open the battery cover. b. Insert a new battery, pay attention to the polarity of the battery (+ and -). c. Close
the battery cover.
