Product features

First of all, welcome to use our products. The series of luxurious tower fans manufactured by us is
featured with beautiful appearance, novel structure, lightweight and convenience, three-dimensional
wind supply, softness and comfort, and the motor has low temperature rise and little noise, easy
maintenance, suitable to be used in houses, hotels and other places, which is an ideal home appliance
for you to remove summer heat and enjoy the cool air.

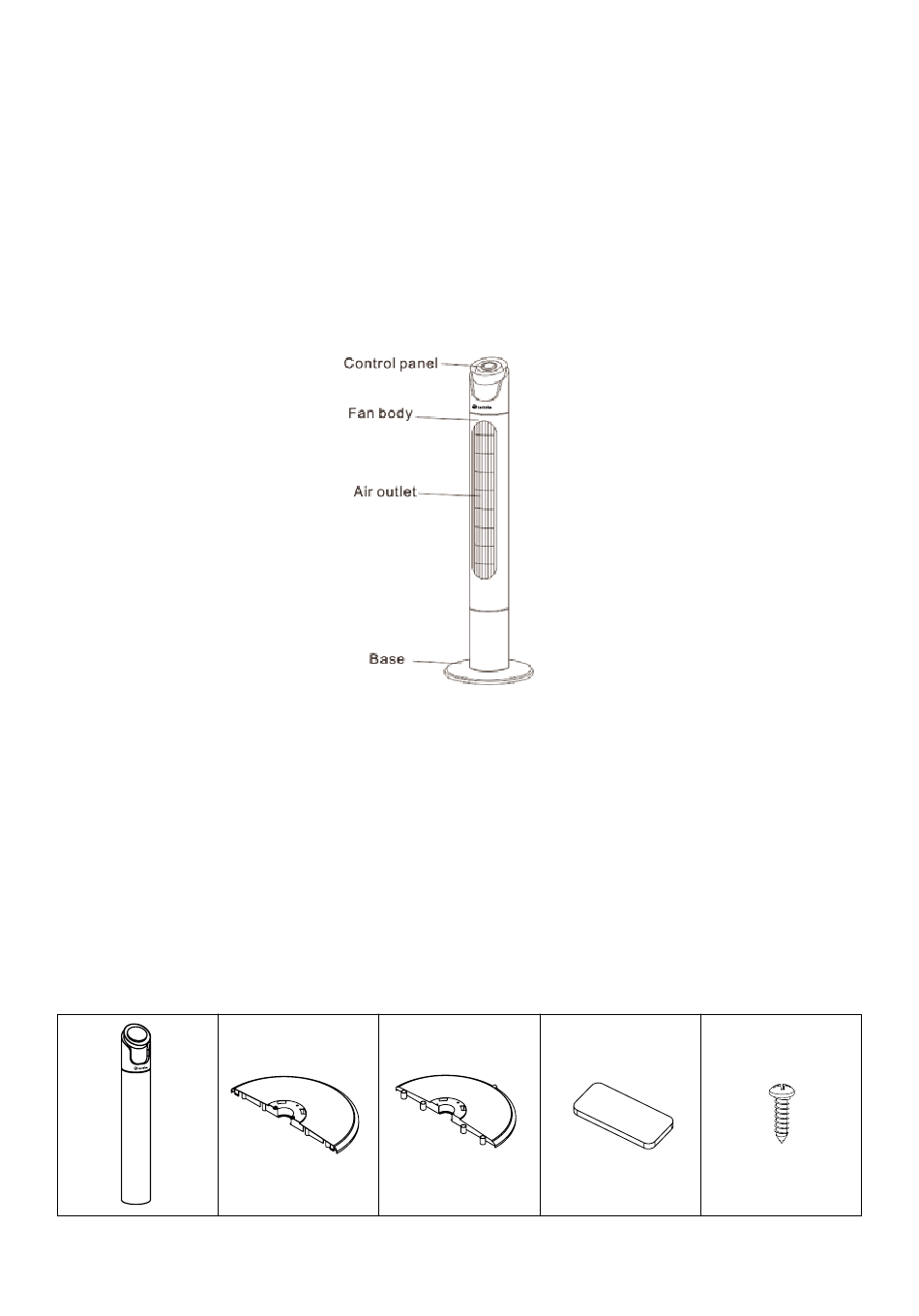

Parts list (schematic)
How to assembly
1. Remove the two parts of the base from the box, so that the holes of the two-part base are aligned and the two
parts are formed into a complete base. (As shown in Fig. 1)
2. Run the power cord through the base, align the base with the holes on the fan body, then secure the power
cord under the base clip to tighten the base with the fan body. (As shown in Fig. 2)
3. When the base is disassembled, screw out the screws first, and then take the base out. (The method to
disassemble the base is as shown in Fig. 3)

PARTS LIST

A B C D E
1pc 1pc 1pc 1pc
2pcs
3
