NORAUTO NO3193 Hinweise Zur Bedienung Seite 27

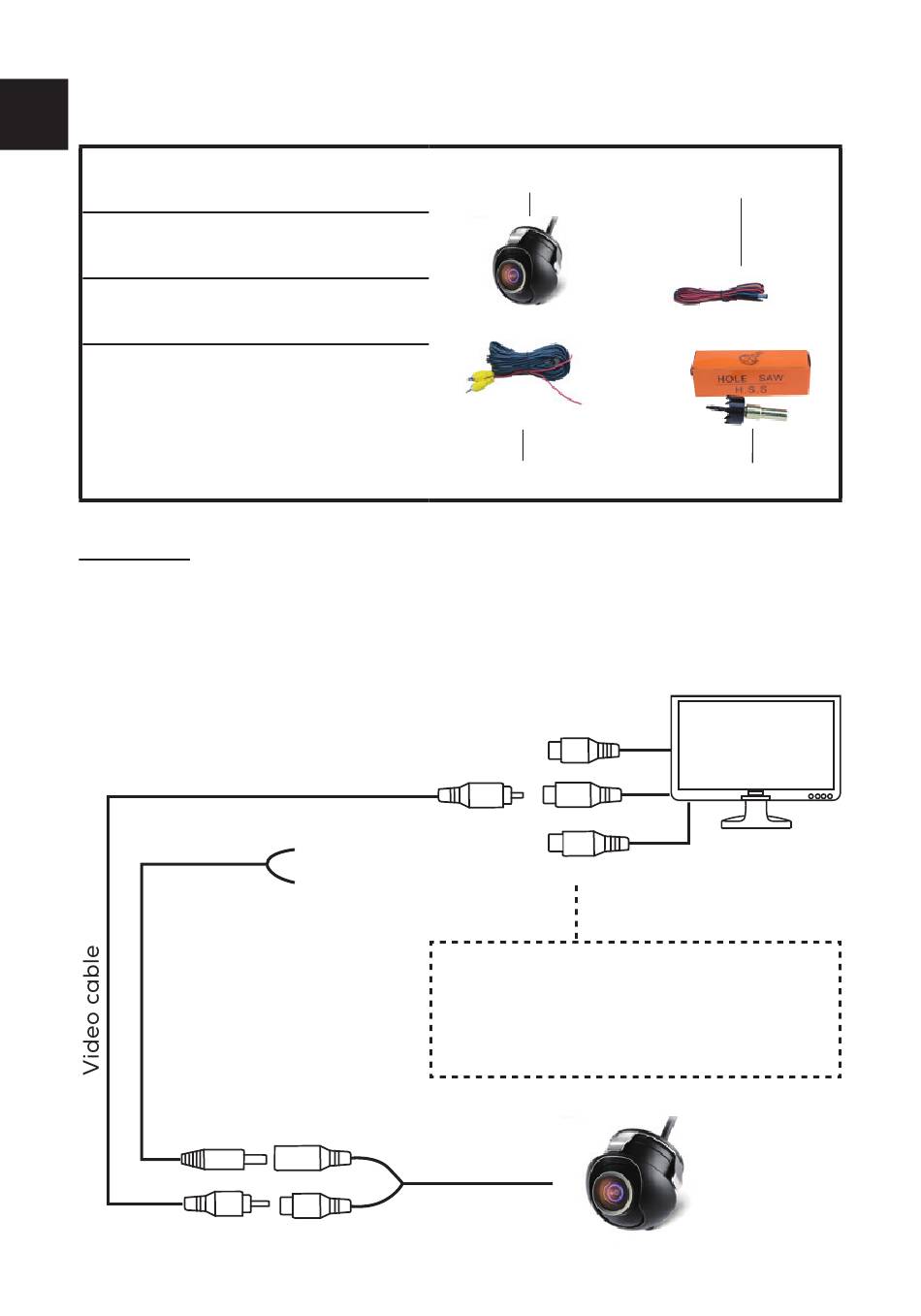

PARTS LIST
EN
1. Rear camera
2. Power cable
3. RCA cable
4. Hole saw
INSTALLATION
Connection diagram of parking assistant
Link to Camera
and Monitor
Power Cable
Connect the power
cable to the Red port
of the camera.
Yellow
26
+Red Wire to Power+
Reverse light
-Black to GND
Black Red
Yellow
1
3
Yellow
Video (Out)
Yellow
White
Red
Red connects to another power
cable (need to buy separately or
use your existing one).
Power cable connects with DC 12V.
2
4
Monitor (not
included)
