GF-4646HT (B)
©)
FOR
A COMPLETE
DESCRIPTION
OF THE
OPERATION
OF THIS
UNIT,
PLEASE
REFER
TO THE
OPERATION
MANUAL.
SPECIFICATIONS
GENERAL
TAPE
RECORDER
Power source:
AC 110V~120V and 220V ~240V,
Tape:
Compact cassette tape
50/60Hz
Frequency response:
50Hz ~ 10,000Hz
DC 9V (UM/SUM.-1 type x 6)
Signal/noise ratio:
45dB
Speakers:
10cm (4'') woofer x 2
Input sensitivity and impedance:
_Ceramic type tweeter x 2
External mic.;
600 ohms
Output power:
MPO;
6.8W (3.4W + 3.4W)
Record/playback
(DIN 45 324)
(AC operation)
socket (AMP);
0.6mV/5.6 kohms
RMS;
4.6W (2.3W + 2.3W)
Loaded impedance:
(DC operation, 10% distortion)
Headphones;
8 ohms ~ 25 ohms
Semiconductors:
5 ICs
4 transistors
RADIO
12 diodes
Frequency range:
FM;
64 MHz — 77 MHz
2 LEDs
LW;
150 kHz — 285 kHz
Dimensions:
Width;
426mm (16-3/4'')
MW;
520 kHz — 1,620 kHz
Height;
212mm (8-3/8")
SW;
5.95 MHz — 18.0 MHz
Depth;
96mm (3-3/4'")
Weight:
2.8 kg (6.1 Ibs.) without batteries
prior notice.
NAMES
OF
PARTS
1. Built-in Microphone (L-ch)
13. Rewind Button
2. Power/Battery Indicator
14. Playback Button
3. FM Stereo Indicator
15. Fast-forward Button
4. Band Selector
16. Stop Button
5. Function Selector
17. Eject Button
6. Volume Control
18. Headphones Jack
7. Tone Control
19. AC Power Supply Socket
8. Balance Control
20. FM/SW Telescopic Rod Antenna
9. Tuning Control
21. Beat Cancel Switch
10. Built-in Microphone (R-ch)
22. Input/Output (DIN) Socket
11. Cassette Compartment
23.
External Microphone Jacks
12.
Record Button
24. Battery Compartment Lid

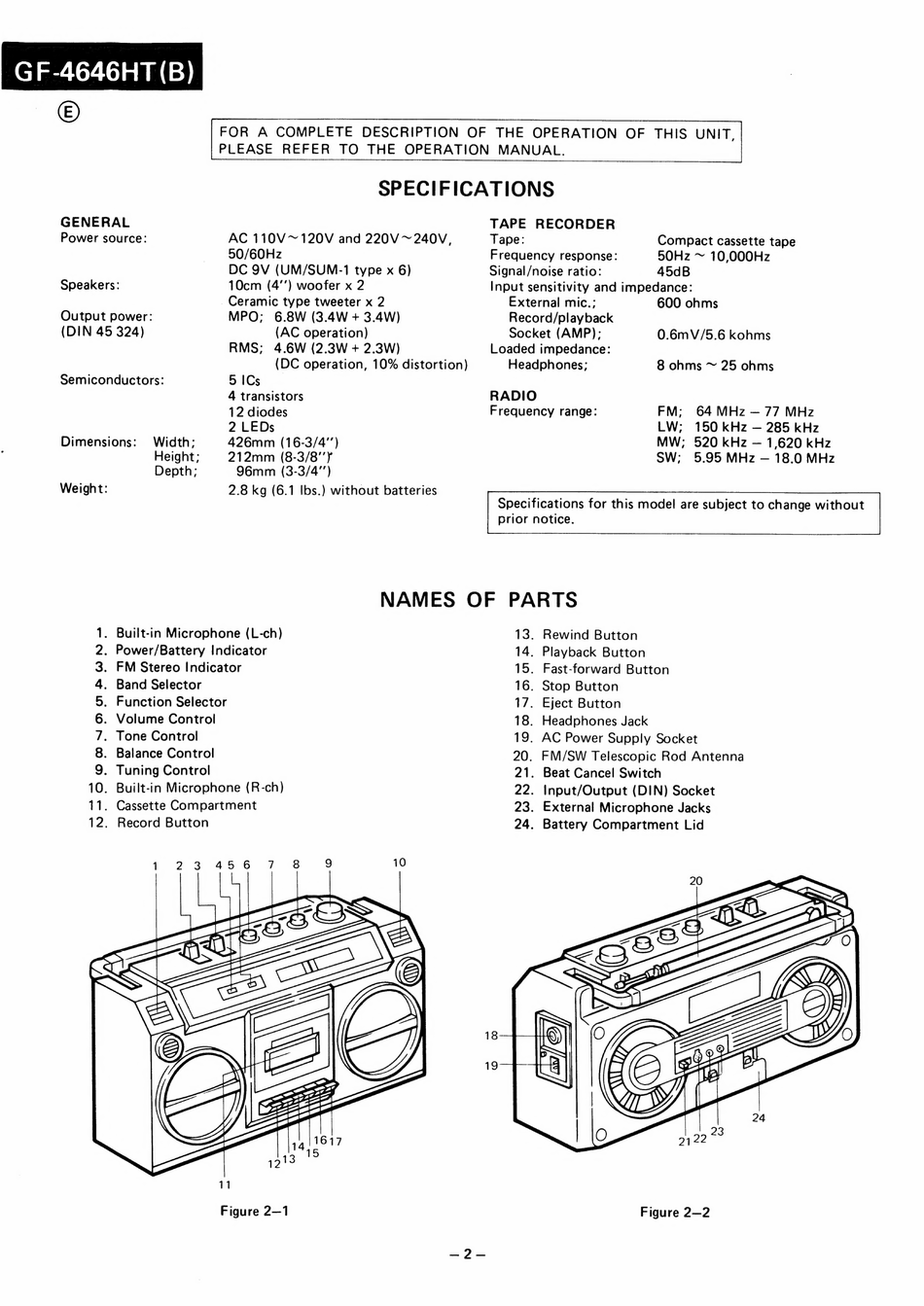

Figure 2—1
Figure 2—2
