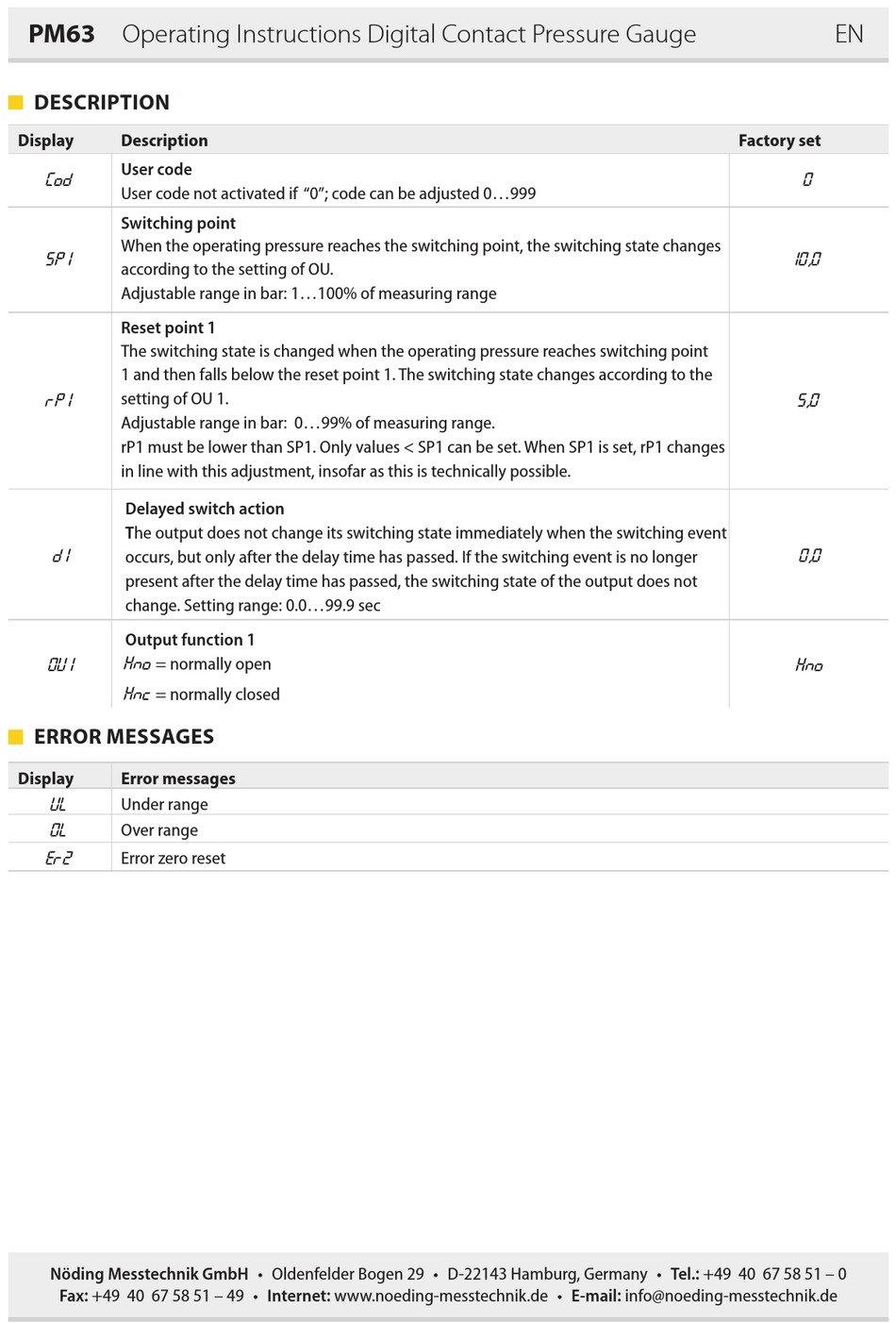

PM63 Operating Instructions Digital Contact Pressure Gauge
DESCRIPTION
Display Description
User code
Cod
User code not activated if "0"; code can be adjusted 0...999
Switching point
When the operating pressure reaches the switching point, the switching state changes
SP 1
according to the setting of OU.
Adjustable range in bar: 1...100% of measuring range
Reset point 1
The switching state is changed when the operating pressure reaches switching point
1 and then falls below the reset point 1. The switching state changes according to the
setting of OU 1.
rP 1
Adjustable range in bar: 0...99% of measuring range.
rP1 must be lower than SP1. Only values < SP1 can be set. When SP1 is set, rP1 changes
in line with this adjustment, insofar as this is technically possible.
Delayed switch action
The output does not change its switching state immediately when the switching event
occurs, but only after the delay time has passed. If the switching event is no longer
d 1
present after the delay time has passed, the switching state of the output does not
change. Setting range: 0.0...99.9 sec
Output function 1
Hno = normally open
0U 1
Hnc = normally closed

ERROR MESSAGES

Display Error messages
Under range
UL
Over range
0L
Error zero reset
Er2
Nöding Messtechnik GmbH • Oldenfelder Bogen 29 • D-22143 Hamburg, Germany • Tel.: +49 40 67 58 51 – 0
Fax: +49 40 67 58 51 – 49 • Internet: www.noeding-messtechnik.de • E-mail: info@noeding-messtechnik.de
EN
Factory set
0
10,0
5,0
0,0
Hno
