PM63 Operating Instructions Digital Contact Pressure Gauge

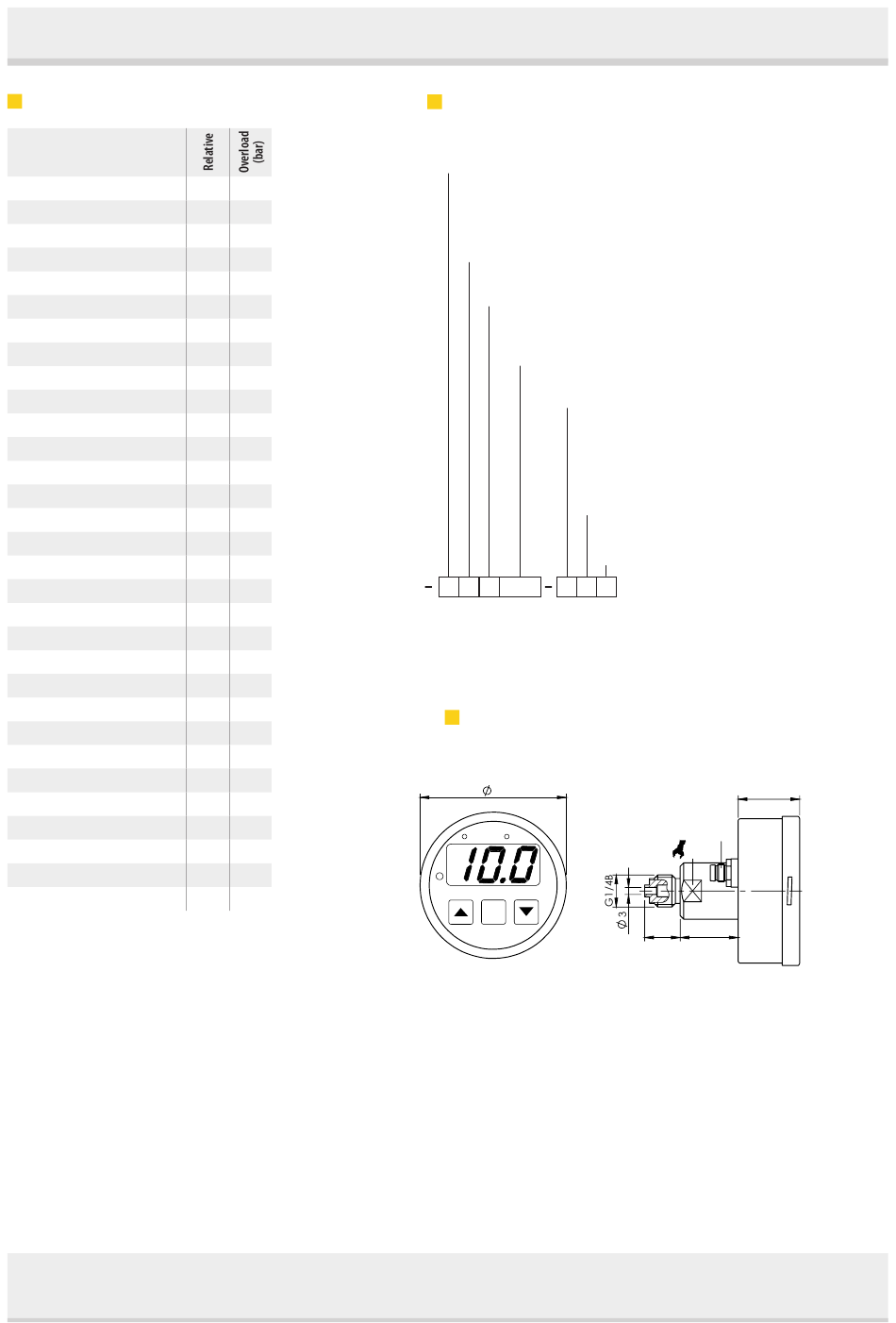

MEASURING RANGES

Measuring ranges
0...250 mbar / 0...25 kPa *
0...400 mbar / 0...40 kPa
0...500 mbar / 0...50 kPa
0...600 mbar / 0...60 kPa
0...1 bar / 0...100 kPa
0...1,6 bar / 0...160 kPa
0...2 bar / 0...200 kPa
0...2,5 bar / 0...250 kPa
0...4 bar / 0...400 kPa
0...5 bar / 0...500 kPa
0...6 bar / 0...600 kPa
0...10 bar / 0...1 MPa
0...16 bar / 0...1,6 MPa
0...20 bar / 0...2 MPa
0...25 bar / 0...2,5 MPa
0...40 bar / 0...4 MPa
0...50 bar / 0...5 MPa
0...60 bar / 0...6 MPa
0...100 bar / 0...10 MPa
0...160 bar / 0...16 MPa
0...200 bar / 0...20 MPa
0...250 bar / 0...25 MPa
-1...0 bar / -100...0 kPa
-1...0,6 bar / -100...60 kPa
-1...1 bar / -100...100 kPa
-1...1,5 bar / -100...150 kPa
-1...3 bar / -100...300 kPa
-1...5 bar / -100...500 kPa
-1...9 bar / -100...900 kPa
-1...15 bar / -100...1500 kPa
-1...19 bar / -100...1900 kPa
* Accuracy 1%
Nöding Messtechnik GmbH • Oldenfelder Bogen 29 • D-22143 Hamburg, Germany • Tel.: +49 40 67 58 51 – 0
Fax: +49 40 67 58 51 – 49 • Internet: www.noeding-messtechnik.de • E-mail: info@noeding-messtechnik.de
02 -0,15/1
03 -0,15/1
B7 -0,2/2
04 -0,2/2
05 -0,4/4
06 -0,4/4
B3 -0,4/4
07 -0,8/8
08 -0,8/8
F1 -0,8/8
09 -1/20
10 -1/40
11 -1/40
B5 -1/40
12 -1/100
13 -1/100
F3 -1/100
14 -1/200
15 -1/200
16 -1/400
F5 -1/400
17 -1/600
D4 -1/4
D5 -1/4
D6 -1/4
D7 -1/4
D8 -1/10
D9 -1/10
E1 -1/40
E2 -1/40
E3 -1/40

ORDERING CODE

Type
A Axial connection
Analog output
0 None
1 0...10 V 3-wires
2 0...20 mA 3-wires
3 4...20 mA 3-wires (signal range 3,8...20,5 mA)
Contact output
1 1 contact
Ranges
Measuring ranges see table
99 Non-standard range (on request)
PM63
DIMENSIONS
63
mbar bar
Enter
PM 63
Process connection and material
DD G 1/4 B, EN 837-1, 1.4404
Sensor seal
1 FPM (Viton), standard
2 NBR (Perbuan)
3 EPDM
5 FFKM (Chemraz / Kalrez)
9 Others (on request)
Options
0 Display 3 digits (standard)
1 Display reduced to 2 digits
M8x1
22
15 24,5
EN
26
