INSTALLATION
1. Mark two fixation holes through wall-mounting bracket on the wall. The distance between the holes needs to be 60 mm. Make sure all the
cables can be passed from the middle of wall-mounting bracket.
2. Take down the bracket, then using a 6 mm hand drill make the two fixation holes on the wall you marked before.
3. Use two ST4X20 crosshead screws to fix the wall-mounting bracket on the wall.
4. Once the fixation holes are made, insert the two plastic wall anchors provided.
5. Make sure all the cables are in the 86 embedded box.
6. Fix the wall-mounting bracket on the 86 embedded box with two M4X30 crosshead screws.
7. Connect the wires according to Figure 3.
Note
PLC-1 and PLC-2 aren't polarized.
8. Align the device with the wall-mounting bracket. Push down to fix the device securely (Figure 4).
Figure 4: Device mounting
4

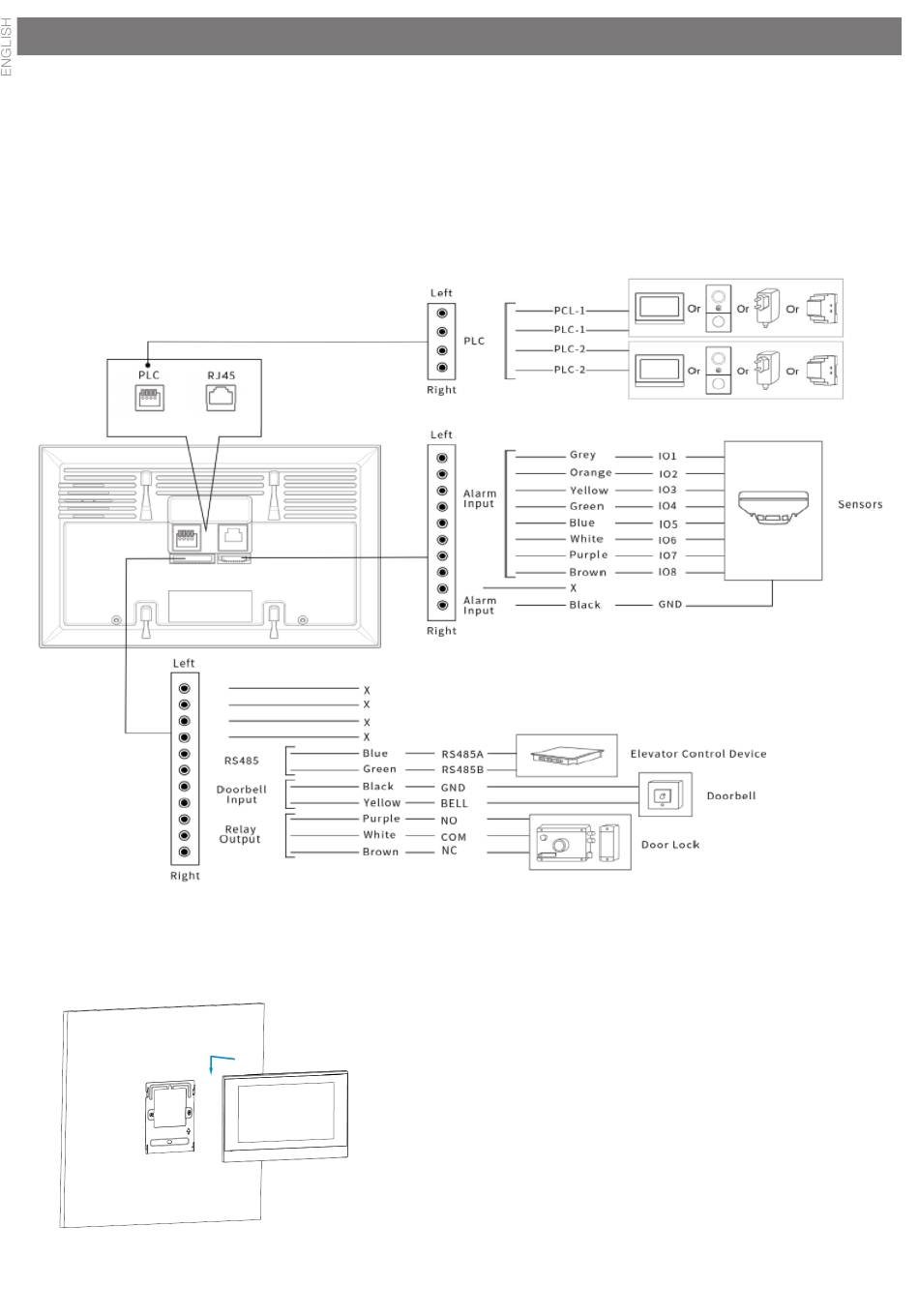

Figure 3: MyBell 2-Wire Indoor Monitor - wiring
