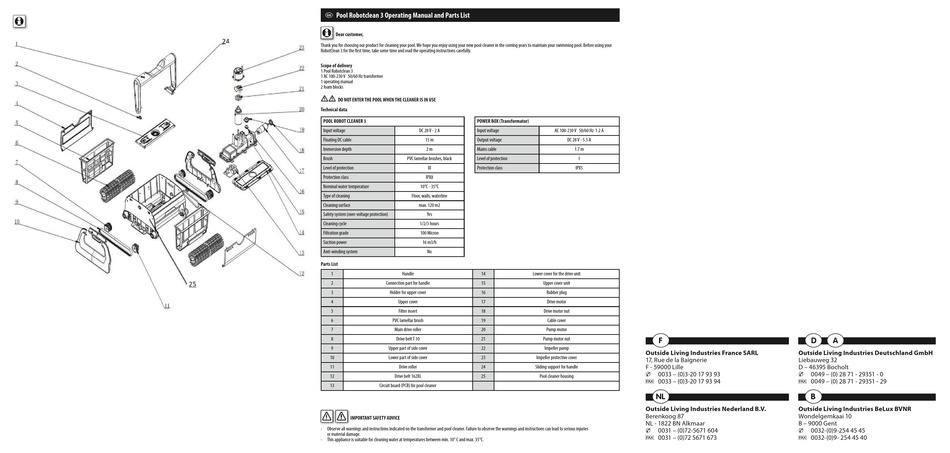

1 Pool Robotclean 3 Operating Manual and Parts List
Dear customer,
Thank you for choosing our product for cleaning your pool. We hope you enjoy using your new pool cleaner in the coming years to maintain your swimming pool. Before using your
RobotClean 3 for the first time, take some time and read the operating instructions carefully.
Scope of delivery
1 Pool Robotclean 3
1 AC 100-230 V 50/60 Hz transformer
1 operating manual
2 foam blocks

DO NOT ENTER THE POOL WHEN THE CLEANER IS IN USE
Technical data
POOL ROBOT CLEANER 3
POWER BOX (Transformator)
Input voltage
DC 28 V - 2 A
Input voltage
Floating DC cable
15 m
Output voltage
Immersion depth
2 m
Mains cable
Brush
PVC lamellar brushes, black
Level of protection
Level of protection
III
Protection class
Protection class
IPX8
Nominal water temperature
10°C - 35°C
Type of cleaning
Floor, walls, waterline
Cleaning surface
max. 120 m2
Safety system (over-voltage protection)
Yes
Cleaning cycle
1/2/3 hours
Filtration grade
100 Micron
Suction power
16 m3/h
Anti-winding system
No
Parts List
1
Handle
14
2
Connection part for handle
15
3
Holder for upper cover
16
4
Upper cover
17
5
Filter insert
18
6
PVC lamellar brush
19
7
Main drive roller
20
8
Drive belt T 10
21
9
Upper part of side cover
22
10
Lower part of side cover
23
11
Drive roller
24
12
Drive belt 162XL
25
13
Circuit board (PCB) for pool cleaner
IMPORTANT SAFETY ADVICE
- Observe all warnings and instructions indicated on the transformer and pool cleaner. Failure to observe the warnings and instructions can lead to serious injuries
or material damage.
- This appliance is suitable for cleaning water at temperatures between min. 10° C and max. 35°C.
AC 100-230 V 50/60 Hz 1.2 A
DC 28 V - 5.5 A
1.7 m
I
IPX5
Lower cover for the drive unit
Upper cover unit
Rubber plug
Drive motor
Drive motor nut
Cable cover
Pump motor
Pump motor nut
F
Impeller pump
Outside Living Industries France SARL
Impeller protective cover
17, Rue de la Baignerie
F - 59000 Lille
Sliding support for handle
0033 – (0)3-20 17 93 93
Pool cleaner housing
0033 – (0)3-20 17 93 94

NL
Outside Living Industries Nederland B.V.
Berenkoog 87
NL - 1822 BN Alkmaar
0031 – (0)72-5671 604

0031 – (0)72 5671 673
D
A
Outside Living Industries Deutschland GmbH
Liebauweg 32
D – 46395 Bocholt
0049 – (0) 28 71 - 29351 - 0
0049 – (0) 28 71 - 29351 - 29

B
Outside Living Industries BeLux BVNR
Wondelgemkaai 10
B – 9000 Gent
0032-(0)9-254 45 45

0032-(0)9- 254 45 40
