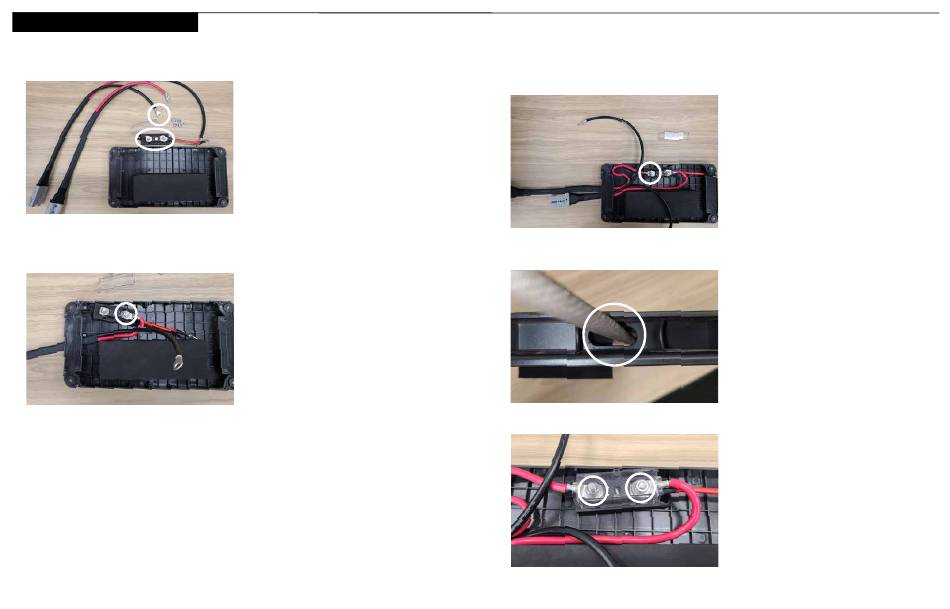

Lid Assembly
1. New cables and the new fuse holder to be used. Note: The new fuse holder has a black base . Remove the clear
plastic lid from the new fuse holder.
2. Orient the new fuse holder with the connected red cable on the right. Insert the shorter "To Exp Tank" cable through
the hole in the lid.. The red positive ring terminal connects to the right side of the fuse block with the red battery
cable . Remove the nuts on the new fuse holder and replace on top of the ring terminals in this step and the next step.
14
3. Insert the longer "To Yeti Link" cable through the hole in the lid and connect the red ring terminal to the left side of
the fuse holder. Note: Red cables MUST be connected as described to ensure correct operation of fuse in event of
an incident.
Note: New cables will be inserted through this opening. It may be necessary to use a round file to enlarge the
opening for the new cables.
4. Tighten the nuts on the fuse holder and attach the clear cover.
