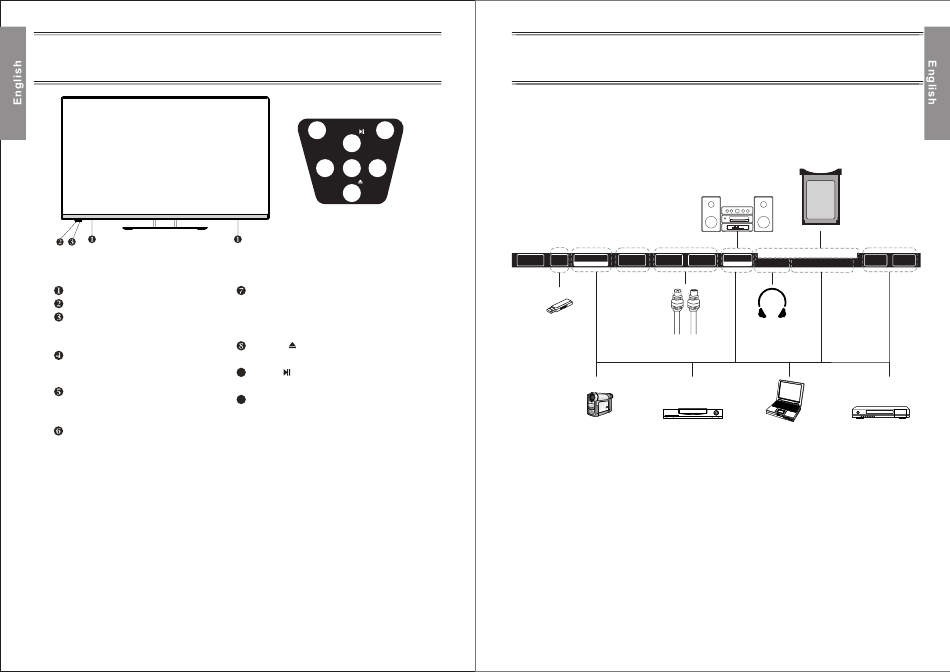

Overview
SPEAKER
REMOTE CONTROL SENSOR
POWER INDICATOR
Green: In power on mode.
Red: In standby mode.
SOURCE
Toggles between all the available input
sources
MENU
Press to see an on-screen menu of your
TV's features.
CH+/-
Press to change channels.
In the on-screen menu, use the CH +/-
buttons as up/down arrow buttons.
6
CH+ /
POWER SOURCE
VOL+ MENU VOL-
CH- /
VOL+/-
Press to increase or decrease the volume.
In the on-screen menu, use the VOL +/-
buttons as left/right arrow buttons.
EJECT /
Eject DVD.
9
PLAY /
Play/stop DVD (in DVD mode).
10
POWER
Press POWER button to toggle between
normal and standby mode.
Overview
DVB-S2 & CI+ will not be available in Australia
CI+ will not be available in New Zealand
USB1
L R
DC 12V SCART DVB-S2 DVB-T2
USB2
OUT
USB
Antenna feeder
Camcorder DVD
Player
1. USB1/2
USB input.
2. L/R OUT
Connect to the audio output jacks on your
amplifier/home theater.
3. SCART
Connecting for SCART signal.
4. DVB-S2
Connected to external SATELLITE to receive.
5. DVB-T2
Connected to external antenna to receive the
ATV/DTV program in ATV/DTV mode.
6. COAXIAL OUT
Coaxial Digital audio output.
CI+ module
Digital Audio System
CI+
COAXIAL
HDMI1
EARPHONE MINI AV MINI YPbPr
OUT OUT IN IN
Headset
PC(HDMI-output) Blu-ray disc player
7. EARPHONE OUT
Connecting for headphone.
8. MINI AV IN
Connecting for VIDEO signal input in
Composite mode.
9. MINI YPbPr IN
Connecting for the Y/Pb/Pr Input in Component
mode.
10. CI+
Used to insert the CI card.
11. HDMI 1/2
Connecting for HDMI signal.
HDMI2
7
