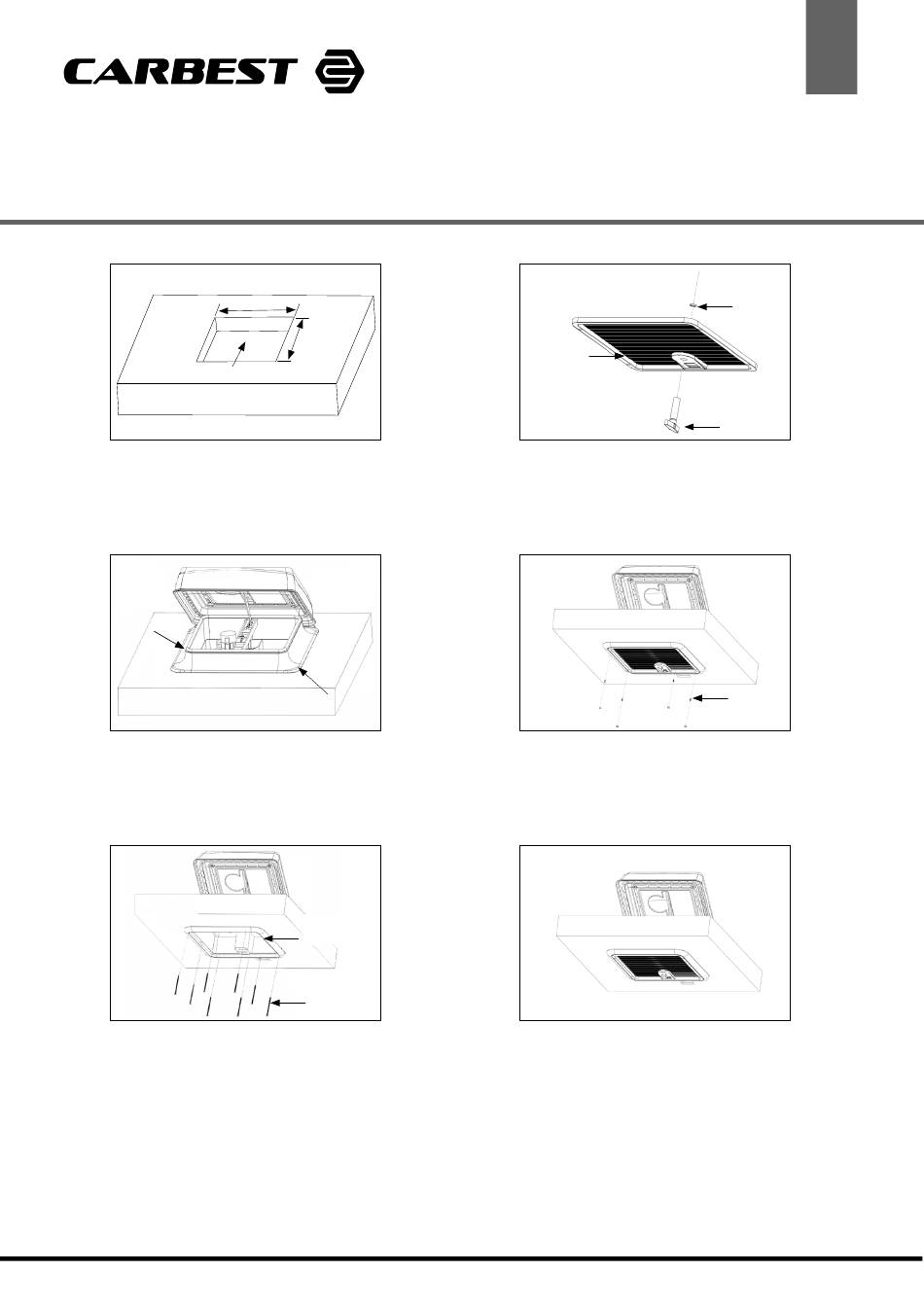

POWER VENT Installation Manual
31853 /318530
01
280 mm
Roof Cut Out Size
The roof cut out size is 280 x 280 mm
02
External
frame
Apply the sealant onto the external frame and then
place it into the hole.
03
Place the inner frame on the position to make it
match the hole of external frame before fix them with
(PA-4X75) tapping screw.
REIMO REISEMOBIL-CENTER GMBH · 63329 EGELSBACH · Boschring 10 · GERMANY · WWW.REIMO.COM · MADE IN CHINA · © REIMO 09/2024
280 mm
Apply sealant
Inner frame
Screw
04
Mesh
screen
Insert the rotary knob into the hole of mesh screen.
And then place the »O« shape rubber ring to the
knob and it will secure the knob to the mesh screen.
05
Line up the mesh screen in the position of the inner
frame and secure it with screws. Then cover the
screw holes with white rubber caps.
0 6
Finished!
EN
O-ring
Rotary knob
Cap
