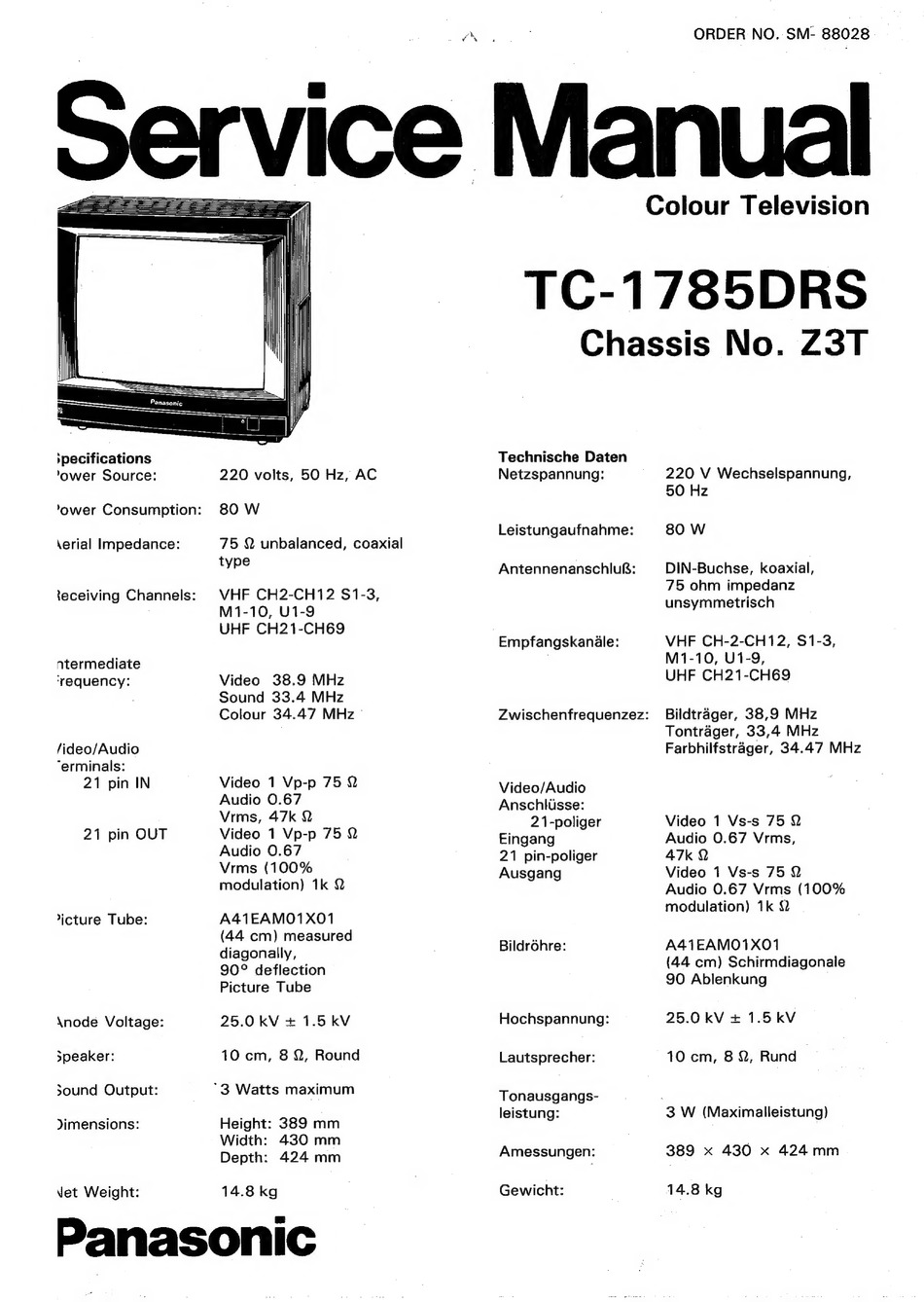

Colour Television
ipecifications
ower Source:
ower Consumption:
\erial Impedance:
teceiving Channels:
ntermediate
'requency:
/ideo/Audio
"erminals:
21 pin IN
21 pin OUT
icture Tube:
\node Voltage:
speaker:
sound Output:
Jimensions:
et Weight:
220 volts, 50 Hz, AC
80 W
75 Q unbalanced,
coaxial
type
VHF CH2-CH12 $1-3,
M1-10, U1-9
UHF CH21-CH69
Video
38.9 MHz
Sound 33.4 MHz
Colour 34.47 MHz ©
Video
1 Vp-p 75 Q
Audio 0.67
Vrms, 47k Q
Video
1 Vp-p 75 Q
Audio 0.67
Vrms (100%
modulation)
1k Q
A41EAM0O1X01
(44 cm) measured
diagonally,
90° deflection
Picture Tube
25.0 kV + 1.5 kV
10 cm,
8 2, Round
*3 Watts maximum
Height: 389 mm
Width:
430 mm
Depth:
424 mm
14.8 kg
Panasonic
ORDER NO. SM- 88028
TC-1785DRS
Chassis No. Z3T
Technische Daten
Netzspannung:
Leistungaufnahme:
Antennenanschluf:
Empfangskandale:
Zwischenfrequenzez:
Video/Audio
Anschlusse:
21-poliger
Eingang
21 pin-poliger
Ausgang
Bildrdéhre:
Hochspannung:
Lautsprecher:
Tonausgangs-
leistung:
Amessungen:
Gewicht:
220 V Wechselspannung,
50 Hz
80 W
DIN-Buchse,
koaxial,
75 ohm impedanz
unsymmetrisch
VHF CH-2-CH12, S1-3,
M1-10, U1-9,
UHF CH21-CH69
Bildtrager, 38,9 MHz
Tontrager,
33,4 MHz
Farbhilfstrager, 34.47 MHz
Video
1 Vs-s 75 Q
Audio 0.67 Vrms,
47k Q
Video
1 Vs-s 75 Q
Audio 0.67 Vrms (100%
modulation)
1k &
A41EAM01X01
(44 cm) Schirmdiagonale
90 Ablenkung
25.0kV + 1.5 kV
10 cm,
8 2, Rund
3 W (Maximalleistung)
389
x 430
x 424mm
14.8 kg
