ATOMSTACK R5 Benutzerhandbuch Seite 11

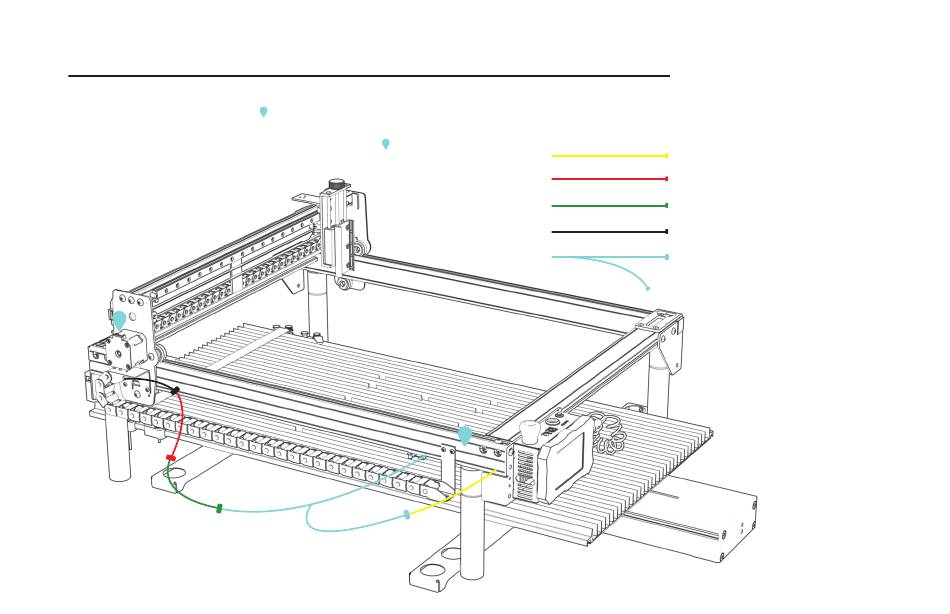

Wiring method two ：
1.Pull out the conveyor harness.
2.Unplug the wiring at location
to reverse.It is necessary to connect another sequence conversion line to the motor line).
3.Pull out the wire at the limit switch and connect it
1
（When your engraving machine does not have a Y-axis switching port）
,Use an adapter cable to connect certain models (the engraving machine will cause the conveyor
1
2
2
10
Limit switch wire
Reverse sequence motor line
Motor link cable
Machine line connector
conveyor line
