Connect the cable

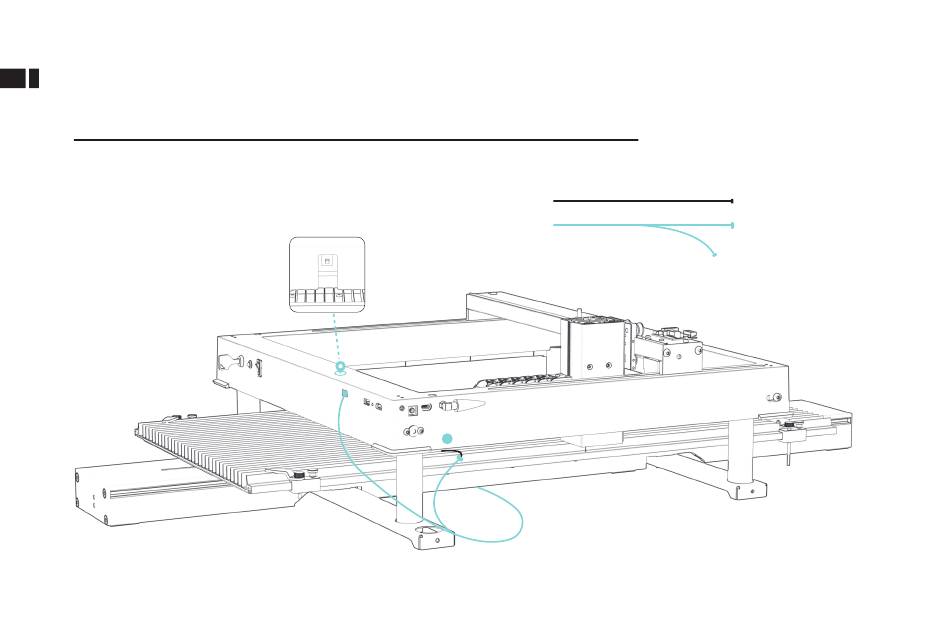

Wiring method 1：
（When your engraving machine has a Y-axis switching port）
1.Locate the switch on lower right corner of engraver, unplug the connector.
2.Pull out the conveyor harness. Position switch and Y-axis switching port
connecting the conveyor and engraving machine.
3.After plugging in the cable, flip the Y-axis switch downward.
1
09
Machine line connector
Conveyor line connector
