Kress MISSION Schnellstartanleitung Seite 9

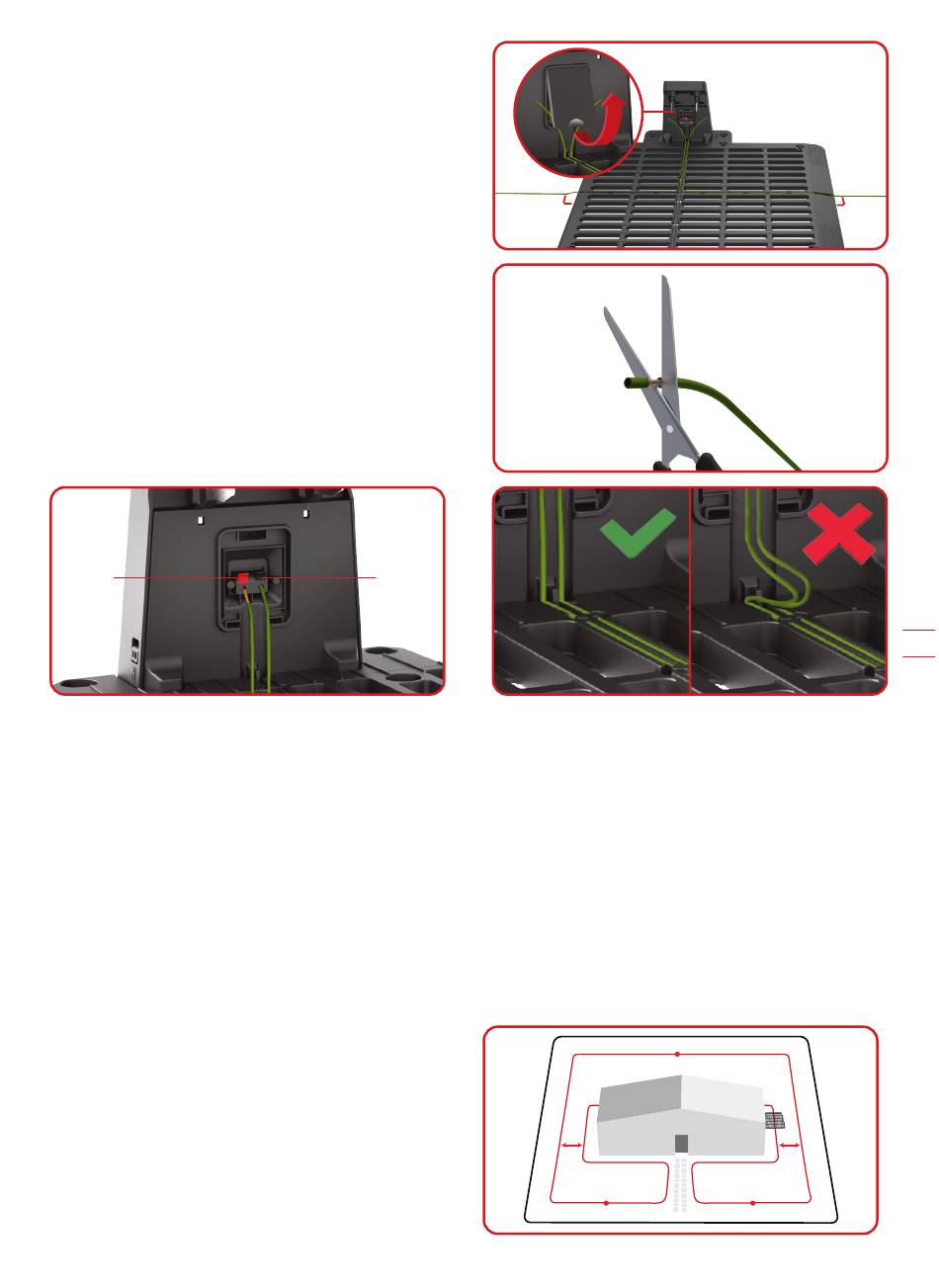

After pegging the boundry wire, please take your
Mission away from the charging station and
TM
remove the plug from the power source. Lead the
boundary wire back to the charging station, leave a
length of the boundary wire (OUT-wire) around 80cm
and cut it off. Insert both wire ends into the grooves
on the charging station.
Peel off the plastic skin at the end of both wires
(around 1cm), and connect the naked metal wire
end of the IN-wire to the BLACK terminal and the
end of OUT-wire to the RED terminal.
OUT
Multi-Zone
If your yard has more than one area and these areas are separated by a narrow opening or corridor (see figure
below), then it may be necessary to establish user-defined zones in order to aid Mission
part of your yard. The term narrow is defined as any passageway that is less than 60 cm in width. A zone is
essentially a starting point along the boundary wire that the Mission
allows the mower to get to those hard to reach areas. These starting points are defined as a distance from
the charging station to the zone starting point. Once the starting points are defined, you will also be able to
define how frequently Mission
reach areas more frequently, ensuring that every square inch of your yard is mowed. It is necessary to define
zone frequency because Mission
Mission starts mowing from a particular zone starting point, it will mow randomly according to its normal
TM
algorithm. Zones are set up via the control panel or Mission
IN
travels to each starting point. This will allow Mission
TM
does not stay within a specific zone for a specified amount of time. Once
TM
OUT WIRE
90
o
travels to before starting to mow. This
TM
App.
TM
Zone 2 starting point
Zone 2
<60cm
Zone 3
Zone 3 starting point
IN WIRE
90
in reaching every
TM
to travel to the hard to
TM
<60cm
Zone 1
Zone 1 starting point
o
9
En
