JC-272H
FOR A COMPLETE
DESCRIPTION
OF THE OPERATION
OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.

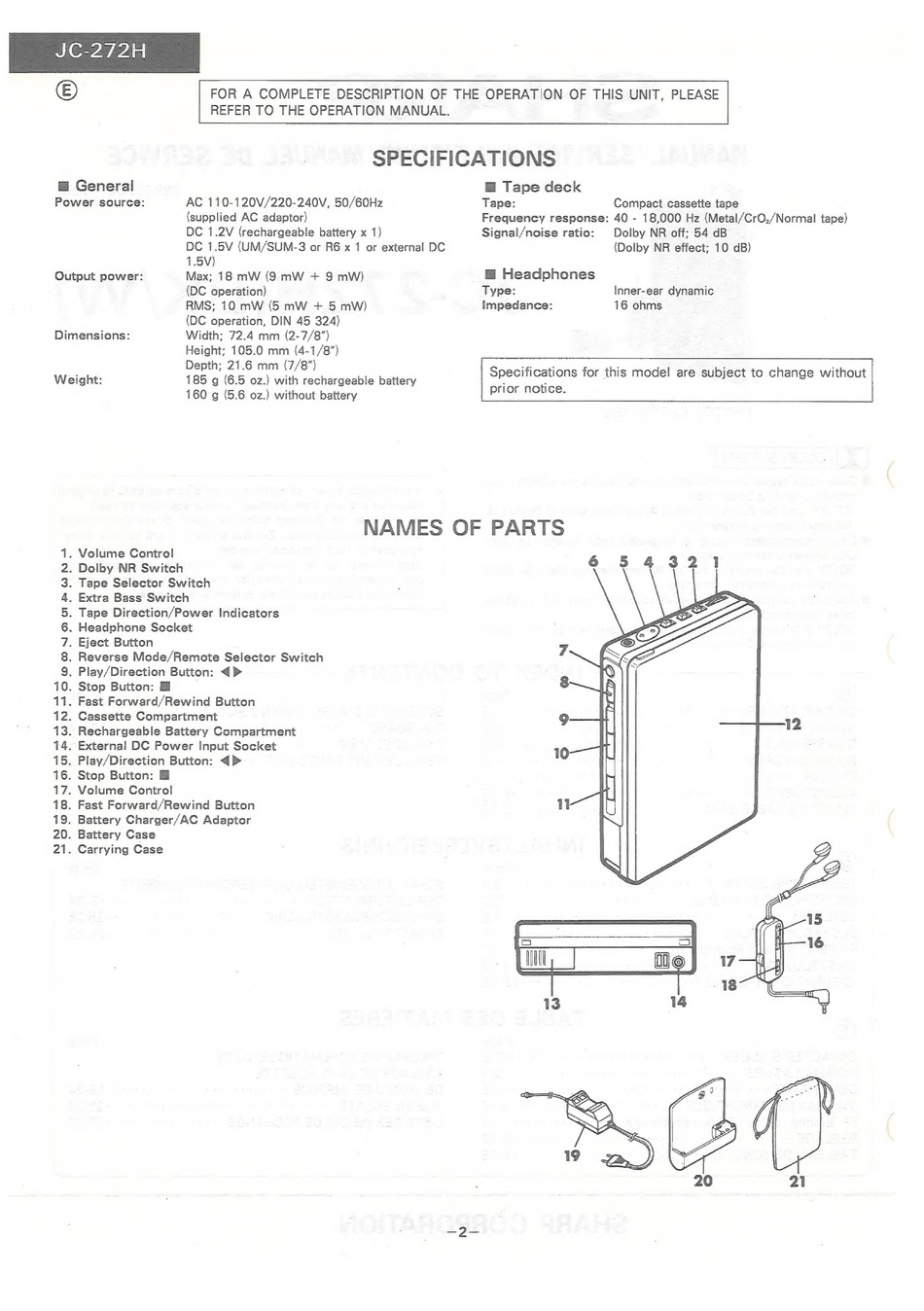

SPECIFICATIONS
©
& General
Power source:
Output power:
Dimensions:
AC 110-120V/220-240V,
50/60Hz
(supplied AC adaptor)
DC 1.2V (rechargeable battery x 1)
DC 1.5V (UM/SUM-3 or R6 x 1 or external DC
1.5V)
Max; 18 mW
(9 mW
+ 9 mW)
(DC operation)
RMS; 10 mW (5 mW
+ 5 mW)
(DC operation, DIN 45 324)
Width; 72.4 mm
(2-7/8")
Height; 105.0 mm (4-1/8")
Depth; 21.6 mm
(7/8")
B Tape deck
Tape:
Compact cassette tape
Frequency response: 40 - 18,000 Hz (Metal/CrO./Normal tape)
Signal/noise ratio:
Dolby NR off; 54 dB
(Dolby NR effect; 10 dB)
B Headphones
Type:
Impedance:
Inner-ear dynamic
16 ohms
Specifications for this model
are subject to change without
prior notice.
NAMES
OF PARTS
Weight:
185 g (6.5 oz.) with rechargeable battery
160 g (5.6 oz.) without battery
1. Volume Control
2. Dolby NR Switch
3. Tape Selector Switch
4. Extra Bass Switch
5. Tape Direction/Power Indicators
6. Headphone Socket
7. Eject Button
8. Reverse Mode/Remote
Selector Switch
9. Play/Direction Button: <>
10. Stop Button: H
11. Fast Forward/Rewind Button
12. Cassette Compartment
13. Rechargeable Battery Compartment
14. External DC Power Input Socket
15. Play/Direction Button: <P>
16. Stop Button: H
17. Volume Control
18. Fast Forward/Rewind Button
. Battery Charger/AC Adaptor
. Battery Case
. Carrying Case
O/
UT
ane
GE
ans
Di
U
:
