ASSEMBLY
STEP BY STEP
HANDLEBAR ASSEMBLY
1
1
2
*1. Wing nut / 2. Lower Handlebars

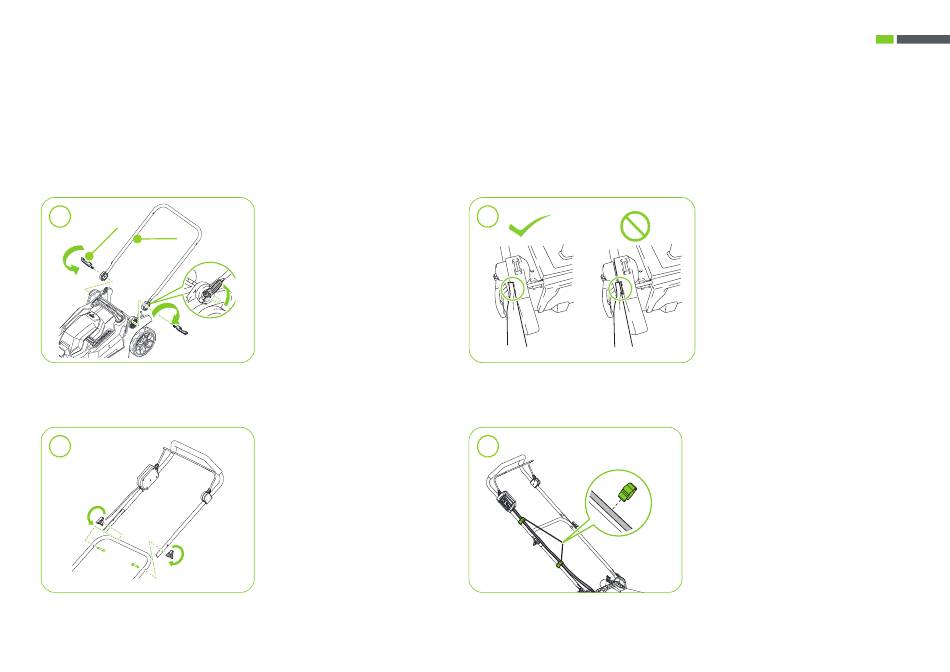

COUPLING OF THE HANDLEBARS
3
Place the two ends of the lower
handlebars into the slots in the
mower body, then fold down the
wing nuts.
Attach the bracket to the handle
and position the cable as shown in
the figure.
Note: Hold the upper handle firmly
to prevent it from falling off.
LOWER HANDLEBAR ATTACHMENT
2
PLACEMENT OF THE CABLE CLIPS
4
68
Align the hole in the upper handlebar
with the hole in the lower handlebar,
insert the fixing bolt from the inside and
tighten the wing nut from the outside.
Perform the same procedure on the
other side.
Note: Make sure that there is no gap
between the lower handle and the
mower body after folding down the
clamping levers.
Place the cable clips so that the cable is
securely fastened to the handlebars and
does not drag. This will prevent the blade
from snagging the cable and damaging it.
