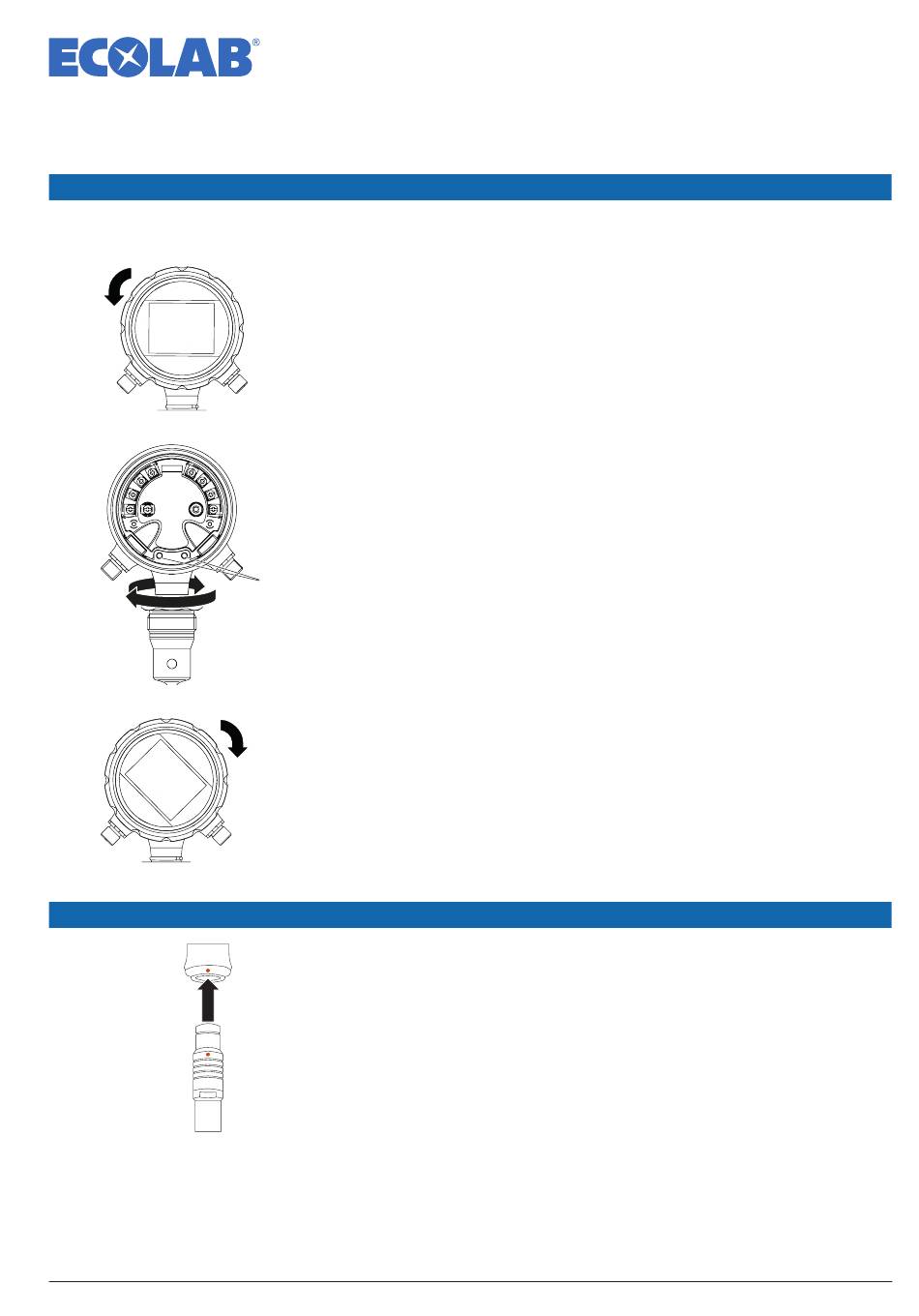

5.3 Changing orientation of the display
Depending on the mounting location and orientation of the sensor, the facing and orientation of the display
can be adjusted accordingly.
0...345°
5.4 Mounting and dismounting the AFI5 cable
www.baumer.com
1
Operating Instructions
LMIT10 AFI4/AFI5
Inductive conductivity transmitter
Open housing by unscrewing the cover.
f
Lift display from housing.
f
If desired, turn head of sensor:
f
Loosen the 2 screws (1) inside with a 2 mm
„
Allen key.
Turn head of sensor to the left (max. 345°).
„
Tighten the 2 screws (1) inside with a 2 mm
„
Allen key.
Make sure not to damage connecting ribbon
f
cable and put the display back in housing in the
desired orientation.
Close housing by screwing on the cover.
f
Mounting the AFI5 cable
To plug the cable in, align the 2 red points.
f
A locking mechanism ensures that the cable
cannot be pulled out unintentionally.
Conductivity measurement
7 / 68
