Network Bullet Camera·Quick Start Guide
2.2 Cable Description
Cables
Power Supply
Alarm In/Out
Network
Note:
ALARM_IN1 and ALARM_OUT1 (ALARM_IN2 and ALARM_OUT2) should be used
in pairs for alarm input and output.
3 Installation
Before you start:
●
Make sure the device in the package is in good condition and all the
assembly parts are included.
●
The standard power supply is 100 VAC to 240 VAC, PoE (802.3 at, 42.5 to 57
VDC), 0.2 to 0.3 A, please make sure your power supply matches with your
camera.
●
Make sure all the related equipment is power-off during the installation.

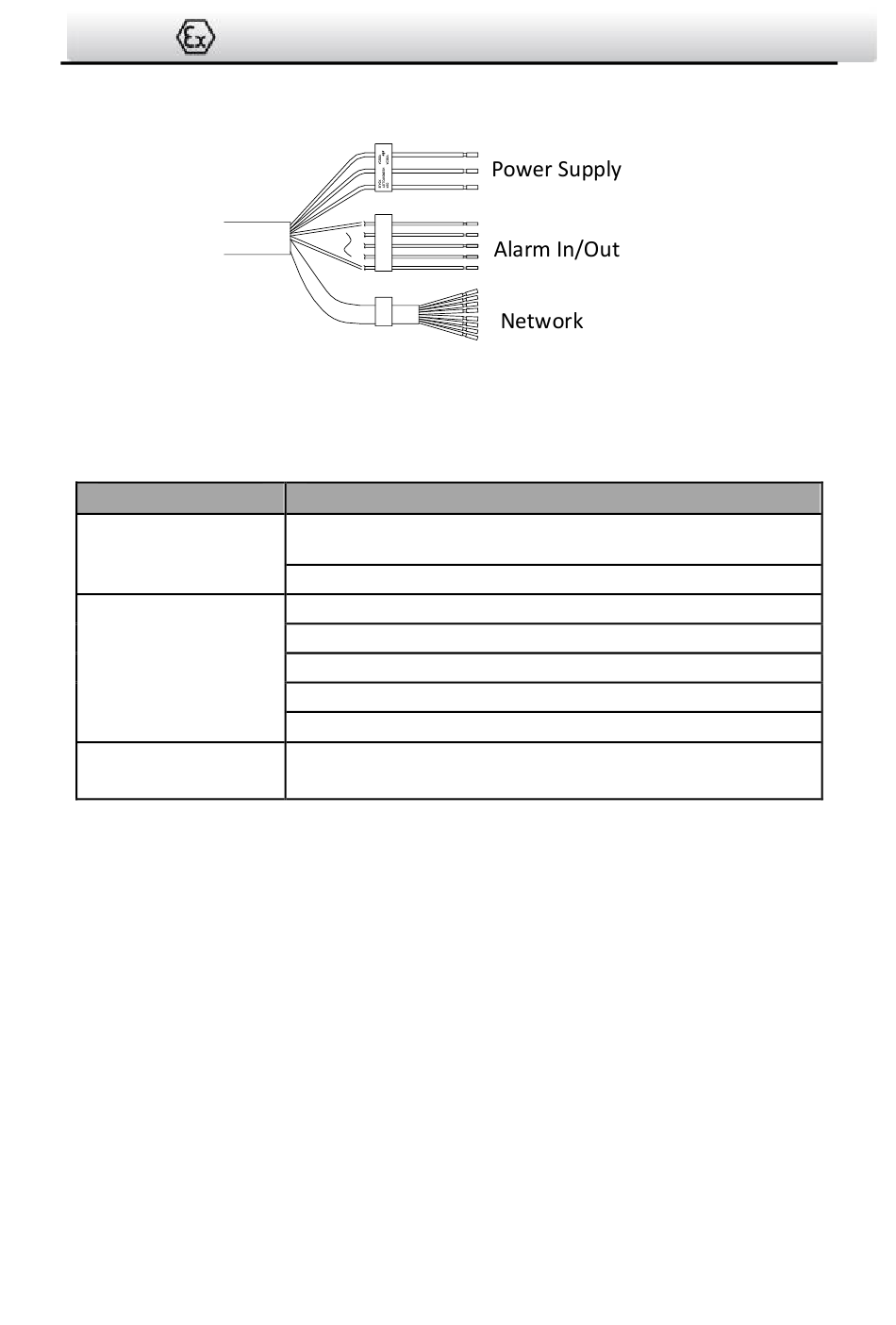

Figure 1-5
Overview of Cables
Table 1-2
Description of Cables
Description
Voltage: 100 VAC to 240 VAC (RED/BLACK)
YELLOW/GREEN: for grounding
YELLOW/BLUE: ALARM_IN1
WHITE/RED: ALARM_OUT1
YELLOW/ORANGE: ALARM_IN2
WHITE/PURPLE: ALARM_OUT2
YELLOW/BLACK: ALARM_GND
For network communication
PoE (802.3 at, 42.5 to 57 VDC), 0.2 to 0.3 A
