Care
• Double diaphragm over until the slot can be seen in the
diaphragm fork
• Pull diaphragm out of diaphragm fork in slot direction
• Check diaphragm for damage, replace if necessary
Assembly
• Push diaphragm head of diaphragm into slot of dia-
phragm fork
• Fit diaphragm into diaphragm groove
• Push silver clip in, pressing both operating buttons at
the same time
• Slide cap on until it catches positively on the catch
hooks
• Again push silver clip in, pressing both operating but-
tons at the same time
• Slide on handwheel till stop
• Perform tightness check and initiating pressure check
2.5 Visual and Function Check
• Perform visual check of AutoMaXX and check all oper-
ating functions
2.6 Tightness Check
The AutoMaXX should be checked without as well
as with medium pressure.
Without Medium Pressure
• Switch off AutoMaXX with red operating button
• Connect AutoMaXX to a leak tester with the connecting
adapter (see Ordering Information)
• Create a positive pressure of +7.5 mbar at the leak
tester and maintain it for 60 seconds, observing the
pressure change
The pressure change must not exceed 0.3 mbar within
a time period of 60 seconds.
With Medium Pressure
• Switch off AutoMaXX with red operating button
• Connect medium pressure line to a pressure reducer
• Open cylinder valve
• Connect AutoMaXX to a leak tester with a connecting
adapter and observe pressure change
The pressure must not increase more than
1 mbar during 60 seconds.
2.7 Closing Pressure Check
• Switch off lung governed demand valve and connect to
a pressure reducer
• Connect lung governed demand valve directly or via the
hose of the test adapter to the test equipment. Close all
lines of the test device.
In order to prevent damage to unsecured test
equipment from positive pressure, use the hose of
the test adapter and close the connection between
the AutoMaXX and the test equipment.
• Switch on lung governed demand valve by pushing the
flushing button
• In the case of using the hose of the test adapter: Please
open this hose. Using venting device of test equipment
release a volume flow of 5 l/min
• After closing the venting device, the static pressure
must be less than 3.9 mbar
If the closing pressure should be greater than 3.9
mbar, the positive pressure spring of the diaphragm
must be replaced.
2.8 Overhaul
• Overhaul of the AutoMaXX may only be performed by
MSA or service personnel authorized by MSA
2.9 Storage
• The AutoMaXX should be stored switched on in a dry,
dust-free and clean room at approx. 20°C
2.10 Malfunction
• In case of malfunctions the AutoMaXX must be checked
by MSA or trained service personnel
Data
3.1 Technical Data
Operating pressure
5 – 8 bar dynamic
Operating temperature
-30°C to +60°C
3.2 Ordering Information
Regulator:
10023687 AutoMaXX-AE,
Regulator Assy, M45x3
10036271 AutoMaXX-AE-G,
Regulator Assy, M45x3, with
rubber medium pressure line
Diaphragm:
10032083 Diaphragm,
5pcs, Spare
Closing Cap:
D0010444 Cap,
Protective, dia 12
Filler Cap:
D0012961 Filler Cap AE
Desinfectant:
D2055765 AUER Cleaning
Agent, 2L
D2055766 AUER Cleaning
Agent, 6L
Adapter:
D4074833 Adapter M45x3
Test Line
10034364
The device described in these Instructions for Use is in
accordance with Directive 89/686/EEC.
©
Copyright MSA 2001, subject to change. MSA as-
sumes no liability for incorrect statements or inaccu-
racies.
This type series covers the
following Lung Governed
Demand Valves:
AutoMaXX-AE
AutoMaXX-AE-G

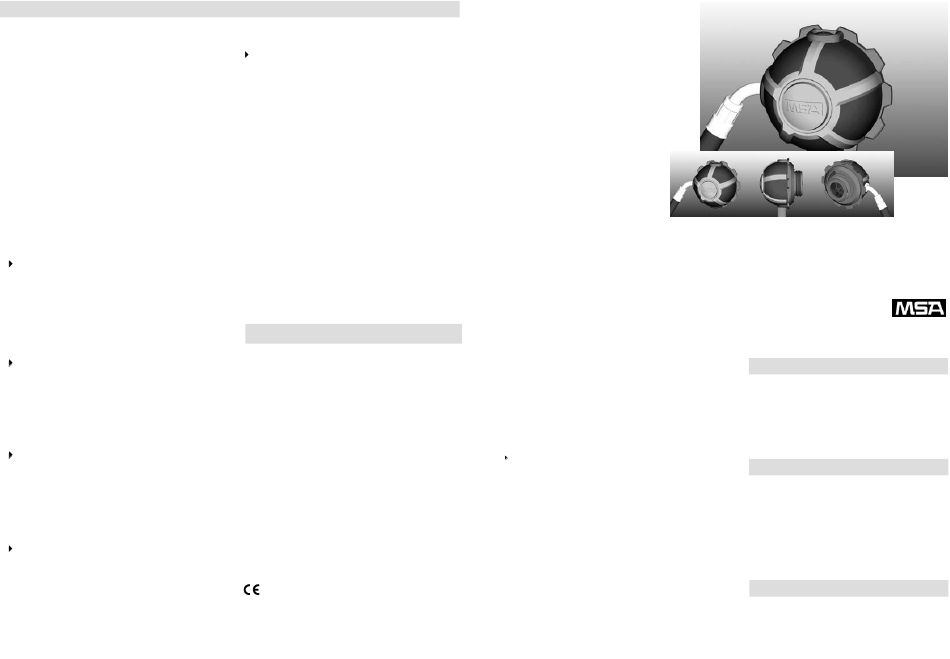

Instructions for Use
Positive Pressure
Lung Governed Demand Valve
Type Series AutoMaXX-AE
English: 10027734/03
Congratulations for choosing the type series MSA AutoMaXX-
AE, a high performance lung governed demand valve that
is easy to handle.
The type series AutoMaXX-AE is available in different ver-
sions as follows:
AutoMaXX-AE
(with silicone medium pressure line)
AutoMaXX-AE-G
(with rubber medium pressure line)
For your safety, please read the Instructions for Use
carefully prior to the first use.
This manual contains instructions for the optimal use of the
product. Like any piece of complex equipment, this product
will do the job it is designed to do only if it is used and
serviced according to the manufacturer's instructions. This
manual must be carefully read by all individuals who have
or will have the responsibility for using or servicing the
product.The warranties made by MSA with respect to the
product are voided if it is not used and serviced in accor-
dance with the instructions in this manual. Please protect
yourself and your employees by following them. Before
choosing and using the product, it is required to assess
whether the product is suitable for the application intended.
Choice and use are beyond the control of MSA. Therefore,
the liability of MSA covers only the consistent quality of this
product.The above does not alter statements regarding the
warranties and conditions of sale and deliveries of MSA.
Contents:
Operation
1.1
Remarks
1.2
Connecting to Medium Pressure
1.3
Connecting to Mask
1.4
Switching On
1.5
Switching Off
1.6
Disconnecting from Mask
1.7
Disconnecting from Medium Pressure
1.8
Supplementary Function Flushing
Care
2.1
Recommended Maintenance Intervals
2.2
Remarks
2.3
Disinfection / Cleaning
2.4
Diaphragm Check/Replacement
2.5
Visual and Function Check
2.6
Tightness Check
2.7
Closing Pressure Check
2.8
Overhaul
2.9
Storage
2.10
Malfunction
Data
3.1
Technical Data
3.2
Ordering Information
