Always unwind any extension cords
fully.
Have a damaged or worn cord
replaced immediately.
Do not use the machine when the
ON-OFF switch does not operate
correctly.
The use of accessories other than
those recommended in this manual
can create a safety hazard.
Make all machine adjustments or
maintenance with the machine
unplugged from the power source.
When installing a new sawblade
make sure that it matches the raving
knife.
The raving knife thickness must be in
between sawblade body thickness
and width of cut.
Make sure that the sawblade is
suitable for the work piece material
to be cut.
Use only sawblades according to
EN 847-1
Never use sawblades made from
High Speed Steel (HSS).
Remove defective sawblades
immediately.
A worn table insert must be replaced.

3.3 Remaining hazards

When using the machine according
to regulations some remaining
hazards may still exist
The moving sawblade in the work
area can cause injury.
Broken saw blades can cause
injuries.
Thrown workpieces can lead to injury
Wood chips and sawdust can be
health hazards. Be sure to wear
personal protection gear such as
safety goggles ear- and dust
protection.
Use a suitable dust exhaust system.
The use of incorrect mains supply or
a damaged power cord can lead to
injuries caused by electricity.

4. Machine specifications

4.1 Technical data

Machine Table
Rear table extensions
Sawblade diameter
Blade bore diameter
Blade body thickness
Raving knife thickness
Blade speed 50Hz
(Blade speed 60Hz
Cutting height & 90°/45° max90/60mm
Tilting range of blade
Dust port diameter
Working height
Weight
Mains
Motor input power
Reference current
Extension cord (H07RN-F) 3G1,5mm²
Installation fuse protection
Protection class
Mains
Motor input power
Reference current
Extension cord (H07RN-F) 4G1,5mm²
Installation fuse protection
Protection class
Mains
Motor input power
Reference current
Extension cord (H07RN-F) 3G2,5mm²
Installation fuse protection
Protection class

4.2 Noise emission

Determined according to
EN ISO 3744
(Inspection tolerance 4 dB)
Work piece plywood 16mm:
Acoustic power level
(according to EN ISO 3746):
Idling
Operating
Acoustic pressure level
(according to EN ISO 11202):
Idling
Operating
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels
This information is intended to allow
the user to make a better estimation
of the hazards and risks involved.
4.3 Content of delivery
Machine stand
Rear table extension
Rip fence
Sawblade dia 315mm
Raving knife
Saw guard
Dust connection hose and Y-adapter
2 Wheels
2 Carry handles
550x800 mm
Push stick
550x800 mm
Operating tools
315 mm
Operating manual
30 mm
Spare parts list
1,8-2,2 mm
2,3 mm
2990rpm
3550 rpm)
90°- 47°
100 mm
800 mm
74 kg
230V~ L/N/PE 50(60)Hz
1600W S1-100%
7,0 A
16A
I
400V ~3L/PE 50Hz
2000W S1-100%
3,5 A
16A
I
110V~ L/N/PE 50Hz
1600W S1-100%
18,6 A
25A
I
LwA 99,6 dB(A)
LwA 104,8 dB(A)
LpA 86,7 dB(A)
LpA 95,5 dB(A)
5

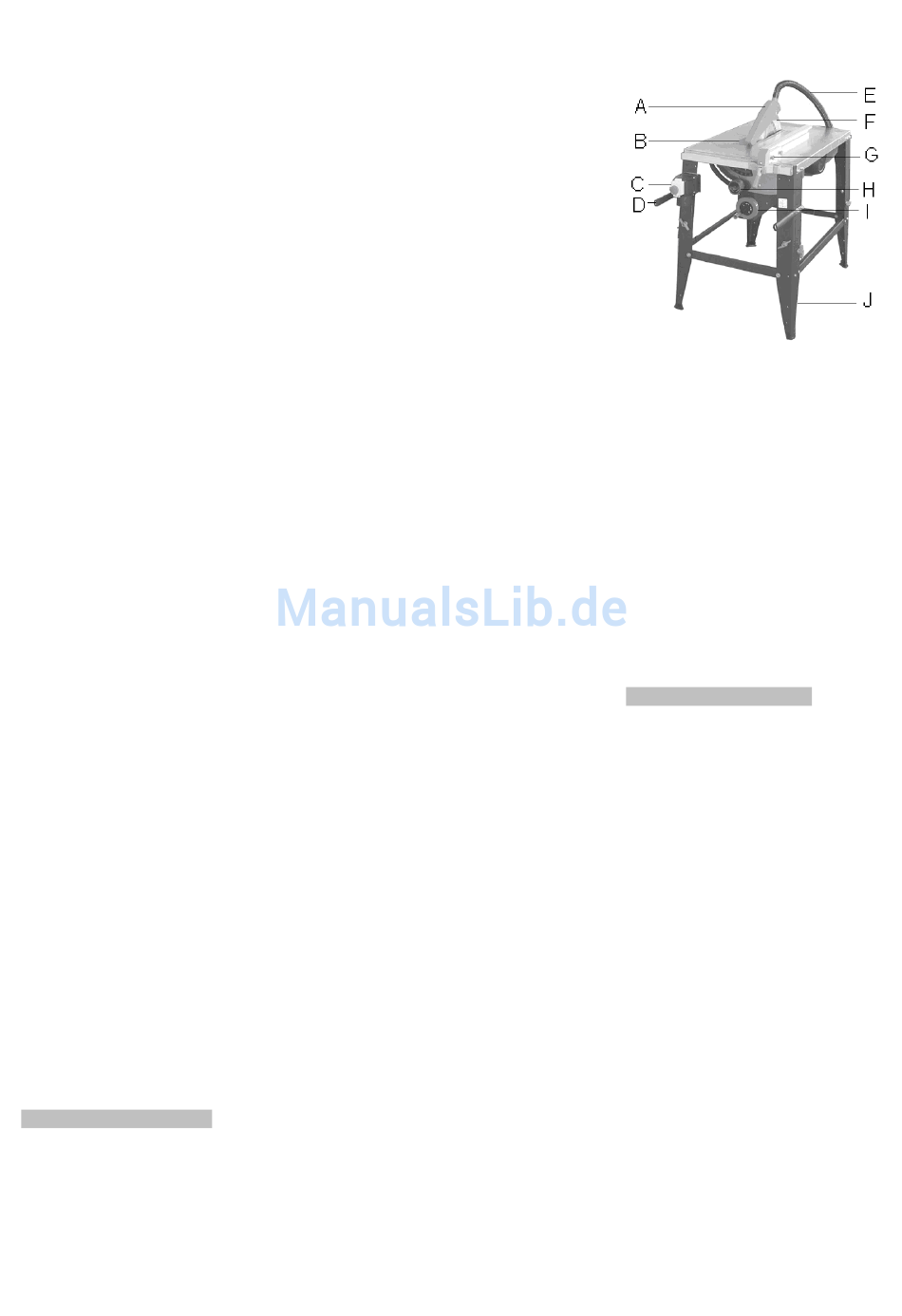

4.4 Description of machine

Fig 1
A......Saw guard
B.....Table insert
C....On/Off switch
D.....Carry handle
E..... Dust connection hose
F..... Raving knife
G..... Rip fence
H.... Tilting handle
I.... Blade rising handle
J......Foldable leg stand

5. Transport and start up

5.1 Transport and installation

Never lift the tool on it's guards.
The sawblade must be covered by
the saw guard during transport.
The machine is designed to operate
in dry rooms and must be placed
stable on firm and levelled ground.
For packing reasons the machine is
not completely assembled.
WARNING:
To avoid injury, if any parts are
missing, do not attempt to assemble
the machine, do not plug in the
power cord, do not turn the switch on
until the missing parts are obtained
and installed correctly.
5.2 Assembly
Assemble tool in strict accordance
with these instructions. Only if you
follow the instructions exactly does
the machine conform to the safety
regulations and can be safely
operated.
If you notice any transport damage
while unpacking, notify your supplier
