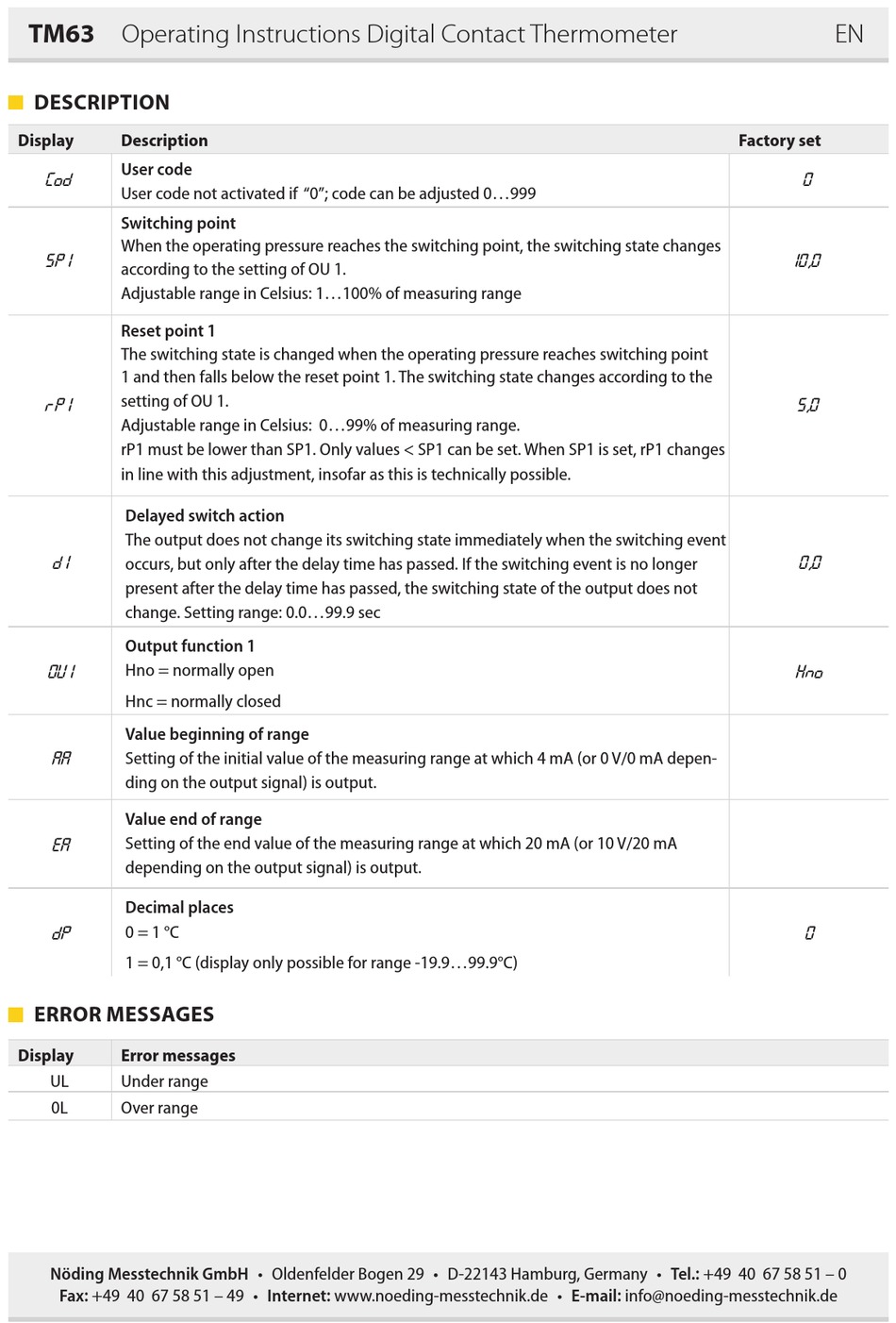

TM63 Operating Instructions Digital Contact Thermometer
DESCRIPTION
Display Description
User code
Cod
User code not activated if "0"; code can be adjusted 0...999
Switching point
When the operating pressure reaches the switching point, the switching state changes
SP 1
according to the setting of OU 1.
Adjustable range in Celsius: 1...100% of measuring range
Reset point 1
The switching state is changed when the operating pressure reaches switching point
1 and then falls below the reset point 1. The switching state changes according to the
setting of OU 1.
rP 1
Adjustable range in Celsius: 0...99% of measuring range.
rP1 must be lower than SP1. Only values < SP1 can be set. When SP1 is set, rP1 changes
in line with this adjustment, insofar as this is technically possible.
Delayed switch action
The output does not change its switching state immediately when the switching event
occurs, but only after the delay time has passed. If the switching event is no longer
d 1
present after the delay time has passed, the switching state of the output does not
change. Setting range: 0.0...99.9 sec
Output function 1
Hno = normally open
0U 1
Hnc = normally closed
Value beginning of range
Setting of the initial value of the measuring range at which 4 mA (or 0 V/0 mA depen-
AA
ding on the output signal) is output.
Value end of range
Setting of the end value of the measuring range at which 20 mA (or 10 V/20 mA
EA
depending on the output signal) is output.
Decimal places
0 = 1 °C
dP
1 = 0,1 °C (display only possible for range -19.9...99.9°C)
ERROR MESSAGES
Display Error messages
UL Under range
0L Over range
