Turbine gas meter Instruction Manual

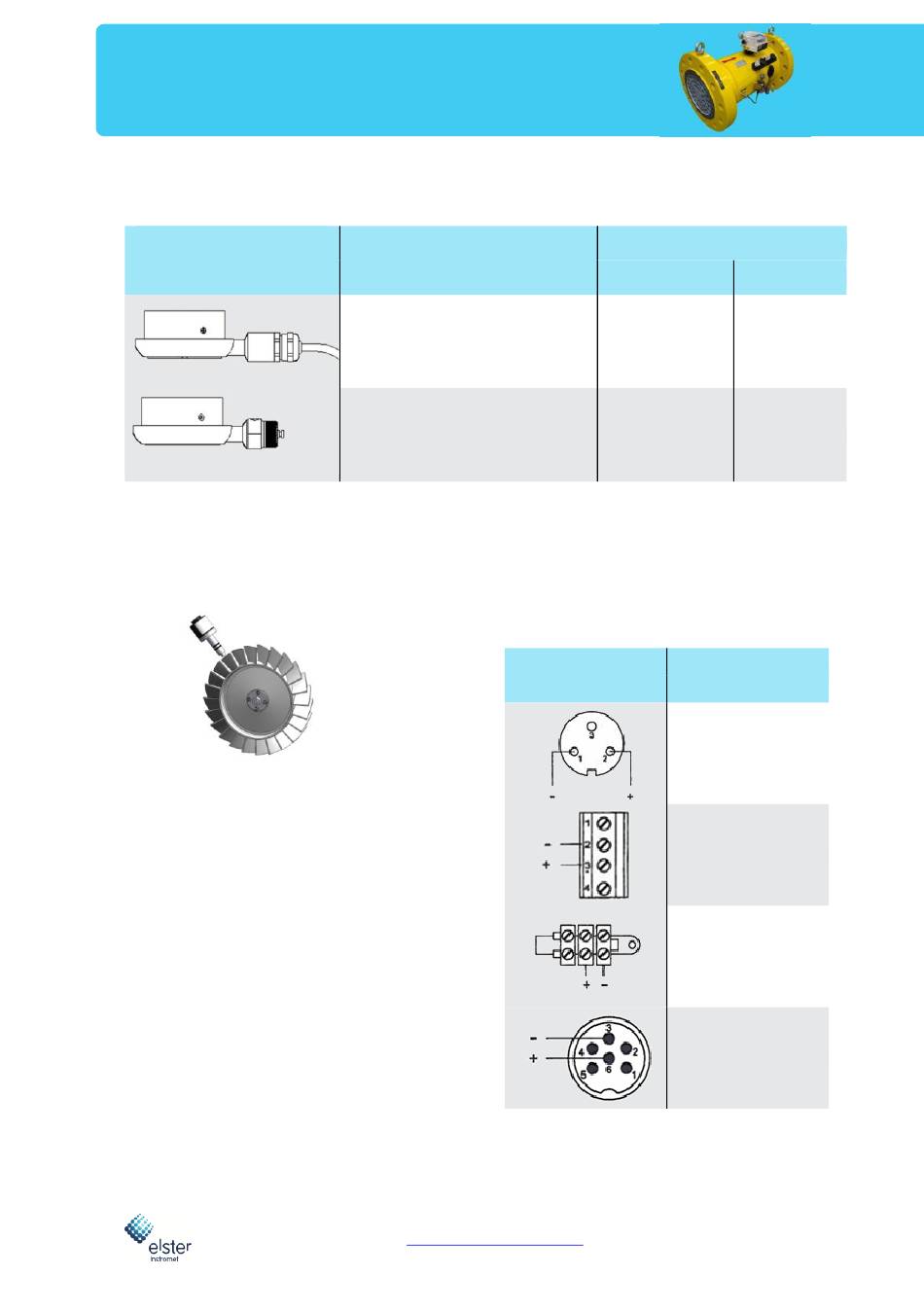

MF Pulse Generators

Table 3 MF options

HF Pulse Generators

You can use HF pulse generators for
higher frequencies. HF pulse generators
are screwed into the meter housing
pressure –tight. Pulse generators for
subsequent installation are also available
(only if housing is provided with bore
holes)
HF pulse generators can be fitted only by
the Customer service. You may connect
the connector yourself.
Elster-Instromet b.v.
Honeywell
Tel: +31 (0) 315 338911
Copyright © 2011 Elster.All rights
reserved.
MF type
(Index)
incl. 2.5m cable
(with open ends)
1x 6-pin
BINDER – plug (male)
(incl. 1x female connector)
Table 4 HF Connections
www.elster-instromet.com
Terminal connection pins
MF 1
-brown / +white
-1 / +4
Connection HF type
Souriau 840
ISM Conn. Box
BARTEC Conn. Box
BINDER 423 / 723
2.550.484 Rev. 2
ENG
MF 2
-black / +white
-2 / +5
