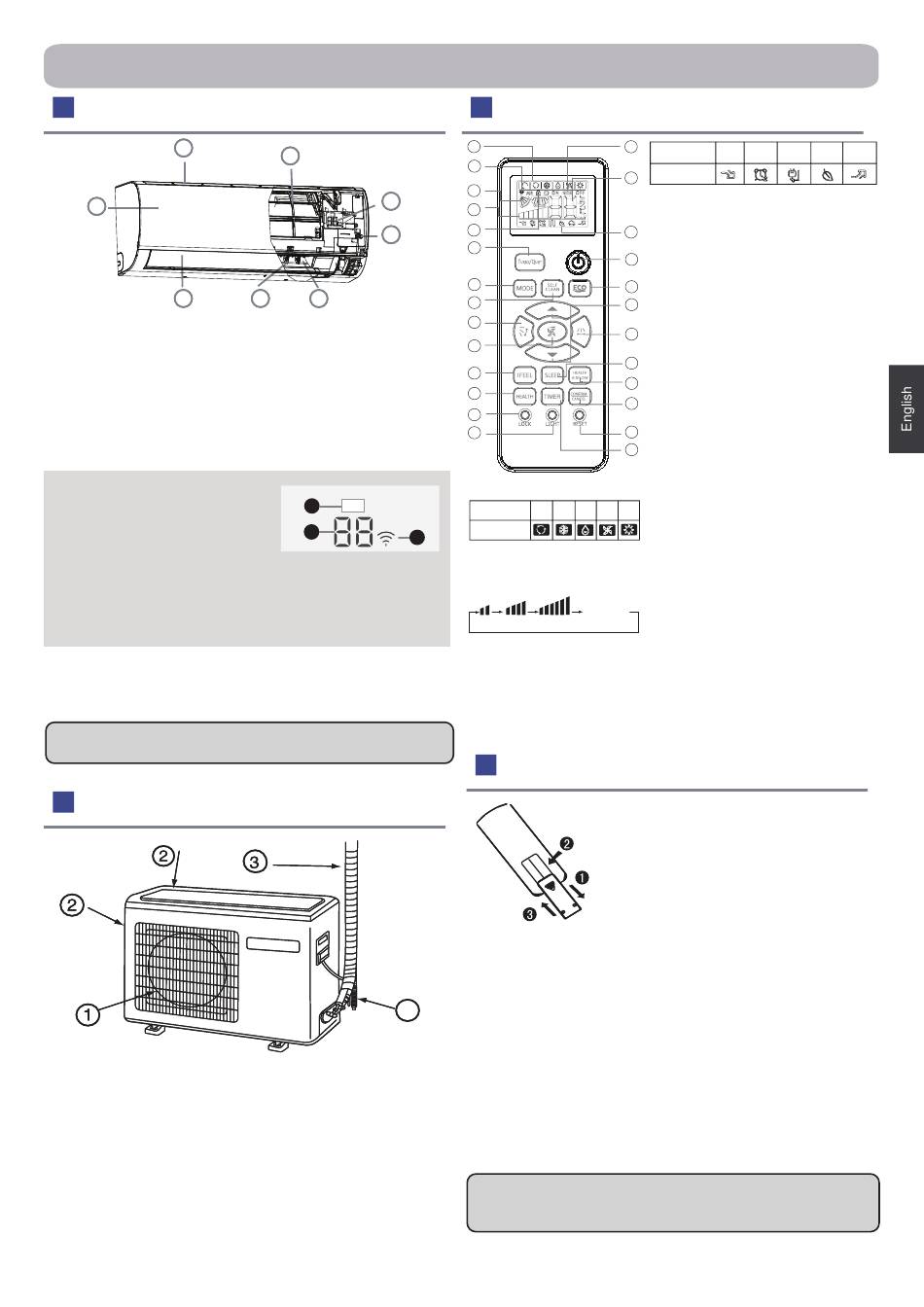

Parts and Functions
Indoor Unit
1
8
7
1.Inlet
2.Air Purifying Filter(inside)
3.Display board
4.Emergency Switch
5.Outlet
Display board
1.Signal receiver
2.Setting temp.display
3.Wi-Fi
Actual inlet grille may vary from the one shown in the manual
according to the product purchased
Outdoor Unit
1.
OUTLET
2.
INLET
3.
CONNECTING PIPING AND ELECTRICAL WIRING
4.
DRAIN HOSE
Please be subject to the actual produce purchased the above
picture is just from your reference.
2
3
4
6
5
6.Vertical blade (adjust left and
right air flow)
7.Horizontal flap (adjust up and
down air flow. Don't adjust it
manually)
8.Inlet grille
1
2
3
4
Remote controller
1
6
2
7
3
4
5
8
9
18
10
19
11
20
12
21
13
22
14
23
15
24
16
25
17
26
1.Mode display
Operation mode
AUTO COOL
DRY
FAN
HEAT
Remote
controller
2.Signal sending display
3.SWING display
4.FAN SPEED display
Display
circulated
LO
MED
AUTO
HI
5.LOCK display
6.TIMER OFF display
TIMER ON display
7.TEMP display
8.Additional functions
display
Loading of the battery
1.Remove the battery cover
2.Load the batteries as illustrated. 2 R-03
batteries, resetting key(cylinder); Be sure
that the loading is in line with the " + "/"-"
3.Load the battery, then put on the cover
back again.
Note
The distance between the signal transmission head and the
●
receiver hole should be within 7m without any obstacle as well.
When electronic-started type fluorescent lamp or change- over
●
type fluorescent lamp or wireless telephone is installed in the room,
the receiver can to be disturbed in receiving the signals,so, the
distance to the indoor unit should be shorter.
Full display or unclear display during operation indicates the
●
batteries have been used up. Please change batteries.
If the remote controller can't run normally during operation, please
●
remove the batteries and reload several minutes later.
Hint：Remove the batteries in case won't be in use for a long
period. If there is any display after taking-out, just press reset
key.
Operation mode
QUIET
ECO
HEALTH
SLEEP
Remote
controller
9. TURBO/QUIET button
10. MODE button
11. SELF CLEAN button
12. SWING up/down button
13. FAN SPEED button
14. I FEEL button
15. HEALTH button
16. LOCK button
17. LIGHT button
Control the lightening and
extinguishing of the indoor LED
display board.
18. POWER ON/OFF button
19. ECO button
20. TEMP button
21. SWING left/right button
22. SLEEP button
23. Healthy airflow button
24.CANCEL/CONFIRM button
Function: Setting and cancel to the
timer and other additional functions
25. RESET button
When the remote controller appears
abnormal, press this button 3s to
reset the remote.
26. TIMER button
TURBO
2
