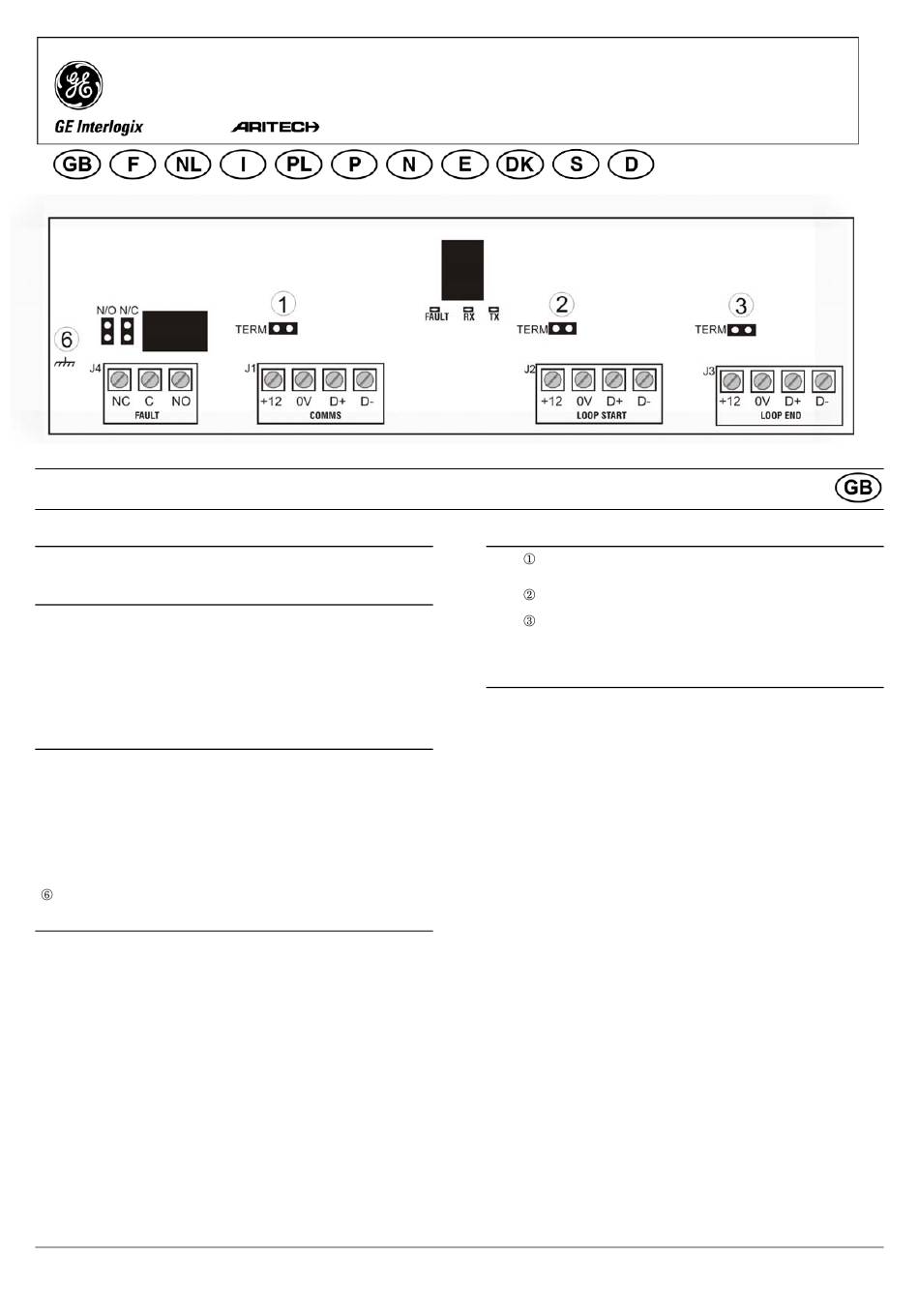

GE Interlogix ARITECH ATS1742 Kurzanleitung

RS485 Databus Loop Interface
M
OUNTING THE UNIT
The board has a standard ATS 'BB' footprint, mountable in existing
ATS metalwork.
C J1
ONNECTIONS COMMS
+12 12 VDC supply input.
0V 80 mA max. with no other peripheral devices connected.
D+ Positive and negative data connection of the RS485 databus.
D- Units can be up to 1.5 km from the 4 door DGP or control panel,
depending on the cable used. Recommended WCAT52/54;
2-pair twisted, shielded, data cable.
C J2
ONNECTIONS LOOP START AND
J2 LOOP START Primary side
J3 LOOP END Secondary side
+12 12 VDC supply output.
0 V
D+ Positive and negative data connection of the RS485 databus.
D- Units can be up to 1.5 km from the 4-door DGP or control panel,
depending on the cable used. Recommended WCAT52/54;
2-pair twisted, shielded, data cable.
Ground connector
LED'
S
Fault Red LED. On when RS485 loop is operating in fault tolerant mode.
TX Yellow LED. On when receiving data from Loop devices
RX Green LED. On when Loop devices are transmitting to the
control panel.
J3
LOOP END
© 2003 GE Interlogix B.V.
RS485 Databus Loop Interface
L
INKS
Refer to the ATS Control Panel installation guide.
TERM
System databus term link.
Loop start term link.
TERM
Loop end term link.
TERM
Refer to the ATS Control Panel installation guide LAN system and Earth
Connection Block Diagram.
C J4 F
ONNECTIONS
Faults Fault condition indicated by relay contacts.
NC
C
NO
N/O-4k7 When removed, a 4k7 resistance is placed in series with
the N/C contact.
N/C-4k7 When fitted a 4k7 resistance is placed in parallel with the
N/C contact.
A fault is registered when data returning to the Loop End connections
is different from the data sent out through the Loop Start connection.
In this case the ATS Control Panel can detect which, if any, peripherals
connected to the loop have failed. See ATS Control Panel installation
guide Databus Loop Fault Relay to the Control Panel. If a databus fault
occurs, the Fault Relay will be energized on the ATS1742 board, which
can be use to generate an alarm or other pre-programmed response.
Checks are performed every 2 minutes to determine the loop's state.
Once the loop fault is corrected, the relay will be de-energized after a
period of 1.5 to 2 minutes and all internal processes will be reset to
pre-fault conditions.
All rights reserved
ATS1742
AULT
Normally closed contact.
Closed contact.
Normally open contact.
MAINST-ATS1742
12/2003
