tart-up
rigid cable
flexible cable
[mm²]
without ferrule [mm²]
0,75 - 2,50
0,75 - 2,50
6.2
Selecting the supply voltage
Voltage supply of the blind actuator is
established only via the Homematic IP
Wired bus. The bus is supplied by the
Homematic IP Wired Access Point
(HmIPW-DRAP) (please refer to the
user manual of the HmIPW-DRAP).
The maximum total current consump-
tion of the blind actuator is as follows:
I
= 100 mA
ges
6.3
Mounting and installation
Please read this entire section
before starting to install the de-
vice.

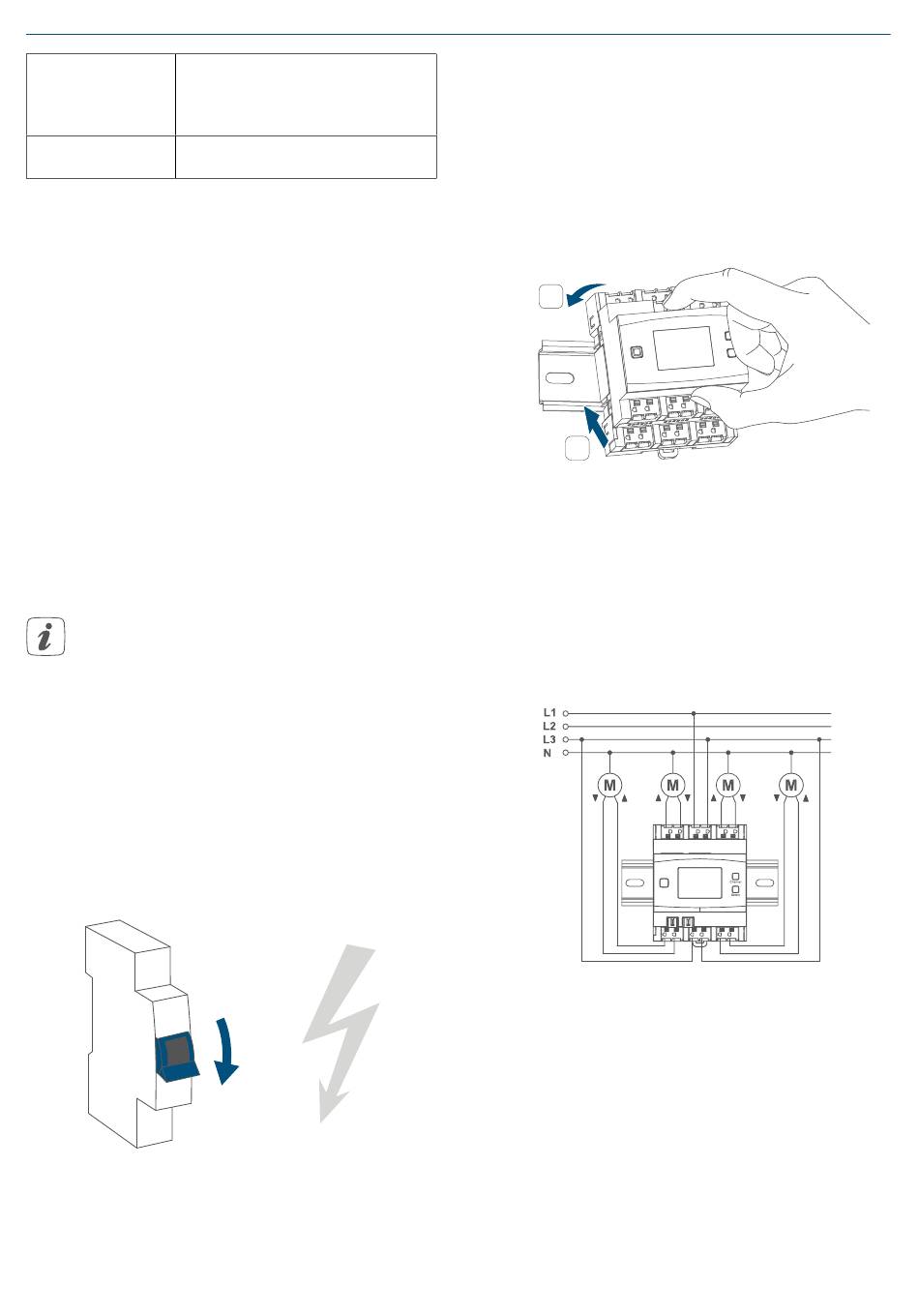

To install the blind actuator on a DIN
rail within a distribution board, please
proceed as follows:
• Disconnect the power distribution
panel and cover any live parts, if
required (see hazard information).
Figure 2
• Remove the cover of the power
distribution panel.
OFF
• Place the blind actuator onto the
DIN rail. Make sure that you can
read the letters on the device and
display and that the connecting
terminals of channel 1 and 2 are at
the top.
1
2
Figure 3
• Make sure that the catch spring en-
gages properly and that the device
is securely seated on the rail.
• Wire the device according to the
connecting diagram
Figure 4
• Connect the phase conductor for
the selected channel to the corres-
ponding terminal (G) (see figure 4).
Any types of phase conductors (L1,
L2, L3) can be connected to the
power input terminals.
• Connect the switched phase con-
ductor to move up the motor for the
selected channel to the correspon-
21
