EN
K000104 BW4+

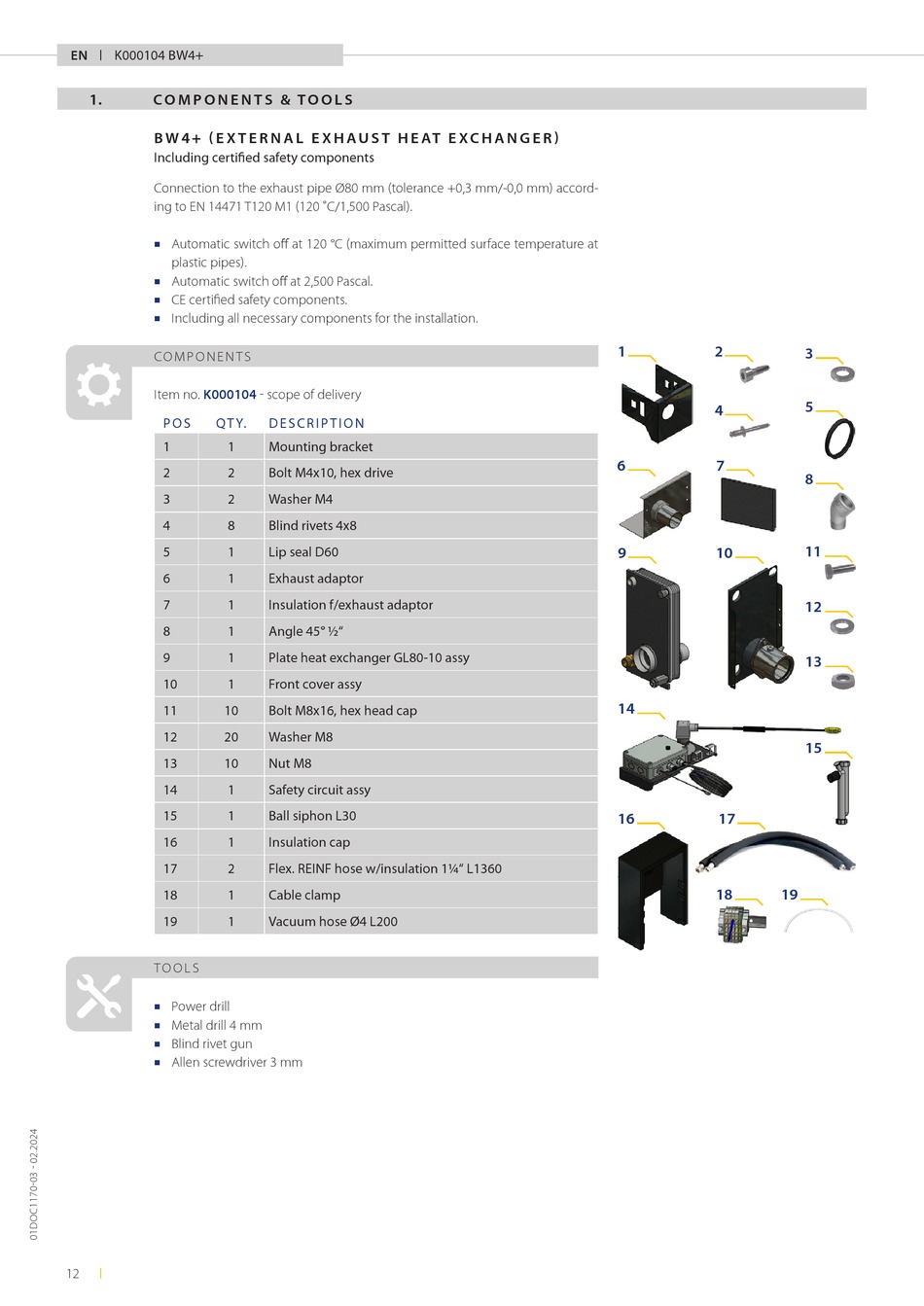

1.
C O M P O N E N T S & T O O L S
B W 4 + E X T E R N A L E X H A U S T H E AT E X C H A N G E R
Including certi ed safety components
Connection to the exhaust pipe Ø80 mm (tolerance +0,3 mm/-0,0 mm) accord-
ing to EN 14471 T120 M1 (120 ˚C/1,500 Pascal).
■
Automatic switch o at 120 °C (maximum permitted surface temperature at
plastic pipes).
■
Automatic switch o at 2,500 Pascal.
CE certi ed safety components.
■
Including all necessary components for the installation.
■
CO M P O N E N T S
K000104
Item no.
P O S
QT Y.
1
1
2
2
3
2
4
8
5
1
6
1
7
1
8
1
9
1
10
1
11
10
12
20
13
10
14
1
15
1
16
1
17
2
18
1
19
1
T O O L S
Power drill
■
Metal drill 4 mm
■
■
Blind rivet gun
■
Allen screwdriver 3 mm
12
scope of delivery
D E S C R I P T I O N
Mounting bracket
Bolt M4x10, hex drive
Washer M4
Blind rivets 4x8
Lip seal D60
Exhaust adaptor
Insulation f/exhaust adaptor
Angle 45° ½"
Plate heat exchanger GL80-10 assy
Front cover assy
Bolt M8x16, hex head cap
Washer M8
Nut M8
Safety circuit assy
Ball siphon L30
Insulation cap
Flex. REINF hose w/insulation 1¼" L1360
Cable clamp
Vacuum hose Ø4 L200
1
2
4
6
7
9
10
14
16
17
18
19
3
5
8
11
12
13
15
