DERBEE SKYSCRAPER Anleitung Seite 4

ASSEMBLY OF THE VERTICAL STABILIZER

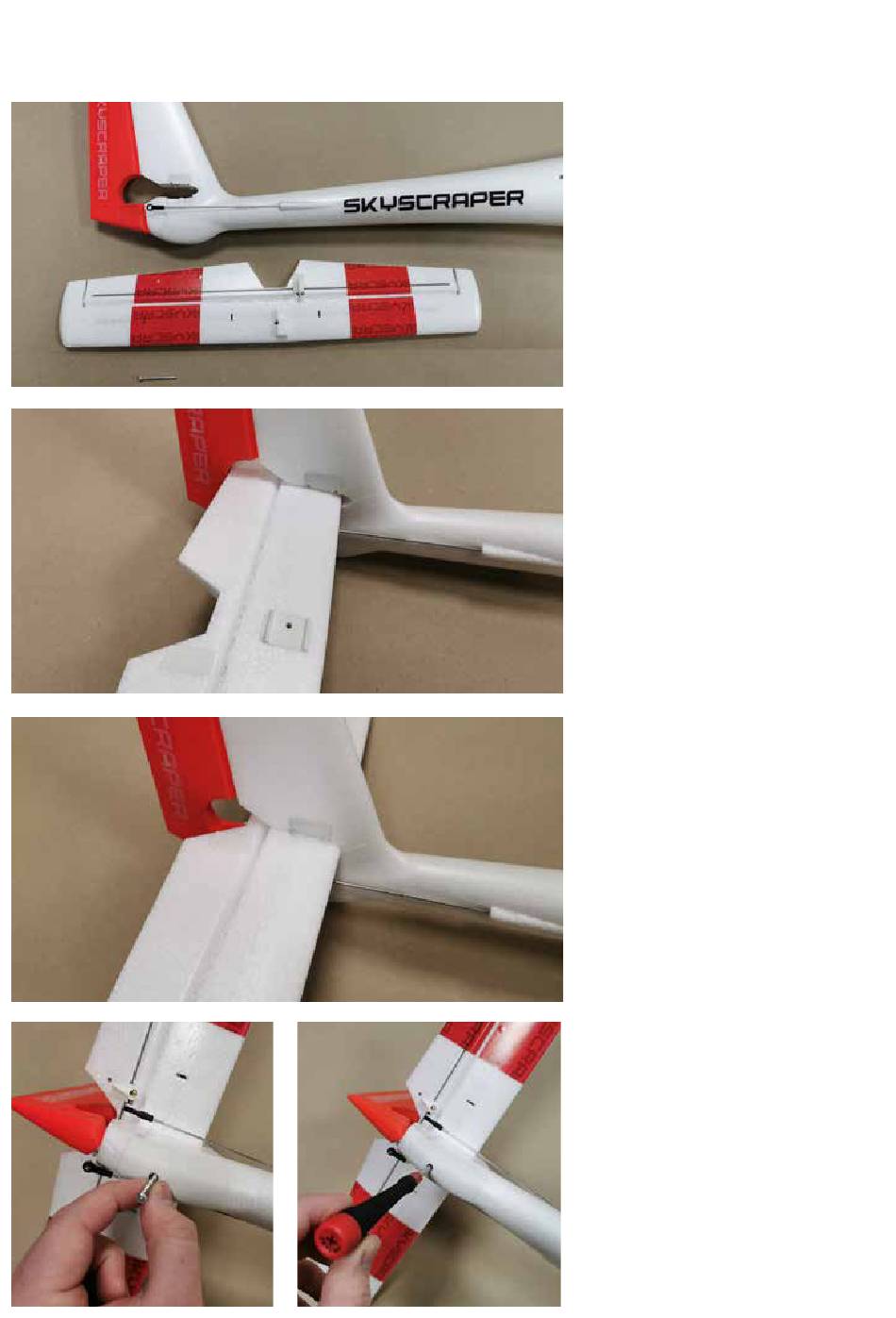

01
The fuselage, the tailplane,
the fixing screw and a sui-
table screwdriver and pliers
are required to assemble the
tailplane.
02
The tailplane is pushed from
the right through the recess
in the vertical stabilizer.
03
The position of the tailplane
is determined by the grooves
and splines on the tailplane
and in the fuselage. Carefully
push the tailplane as far as
it will go so that the grooves
are flush with the fuselage.
04
Then turn the fuselage over.
Insert the screw into the cor-
responding opening at the
rear of the fuselage as shown
in the picture. Carefully tight-
en the screw with the Phillips
screwdriver.
