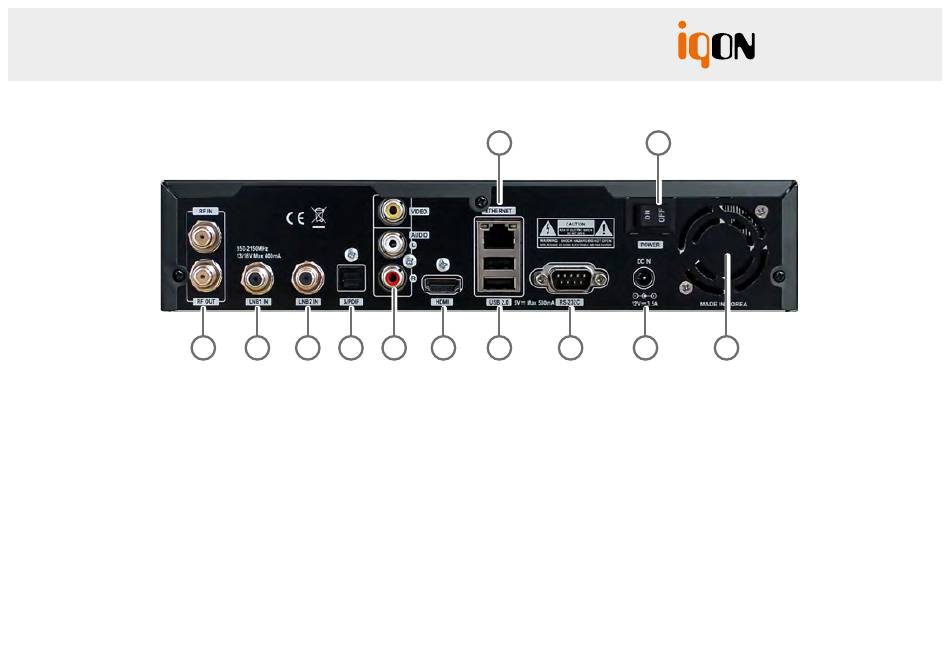

Rear view
1
1. RF IN/OUT Hybrid tuner input/loop-through for DVB T2/T and C signal. Turn the receiver OFF first before connecting.
2. LNB1 INPUT 1st Satellite tuner input from the LNB on a dish antenna. Turn the receiver OFF first before connecting.
3. LNB2 INPUT 2nd satellite tuner input from the LNB on a dish antenna. Turn the receiver OFF first before connecting.
4. S/PDIF Connect with an appropriate optical cable to your HiFi system.
5. Audio / Video Output Connect to TV using RCA cable.
6. HDMI To connect HDMI cable for your HD TV.
7. Ethernet Communication port via HTTP, FTP, NFS, Telnet and Samba to access your Hard Drive or to upload channel lists.
8. 2x USB Connect to the External HDD or USB storage with USB cable (max. 500 mA).
9. RS232 Serial data port.
10. External Power Supply Connect the power supply (12V/3.5A) that came with your device.
11. Power Switch Turn AC Power On/Off.
12. FAN Hole With speed control function.
2
3
4
5
7
6
8
9
force 1+
11
10
12
