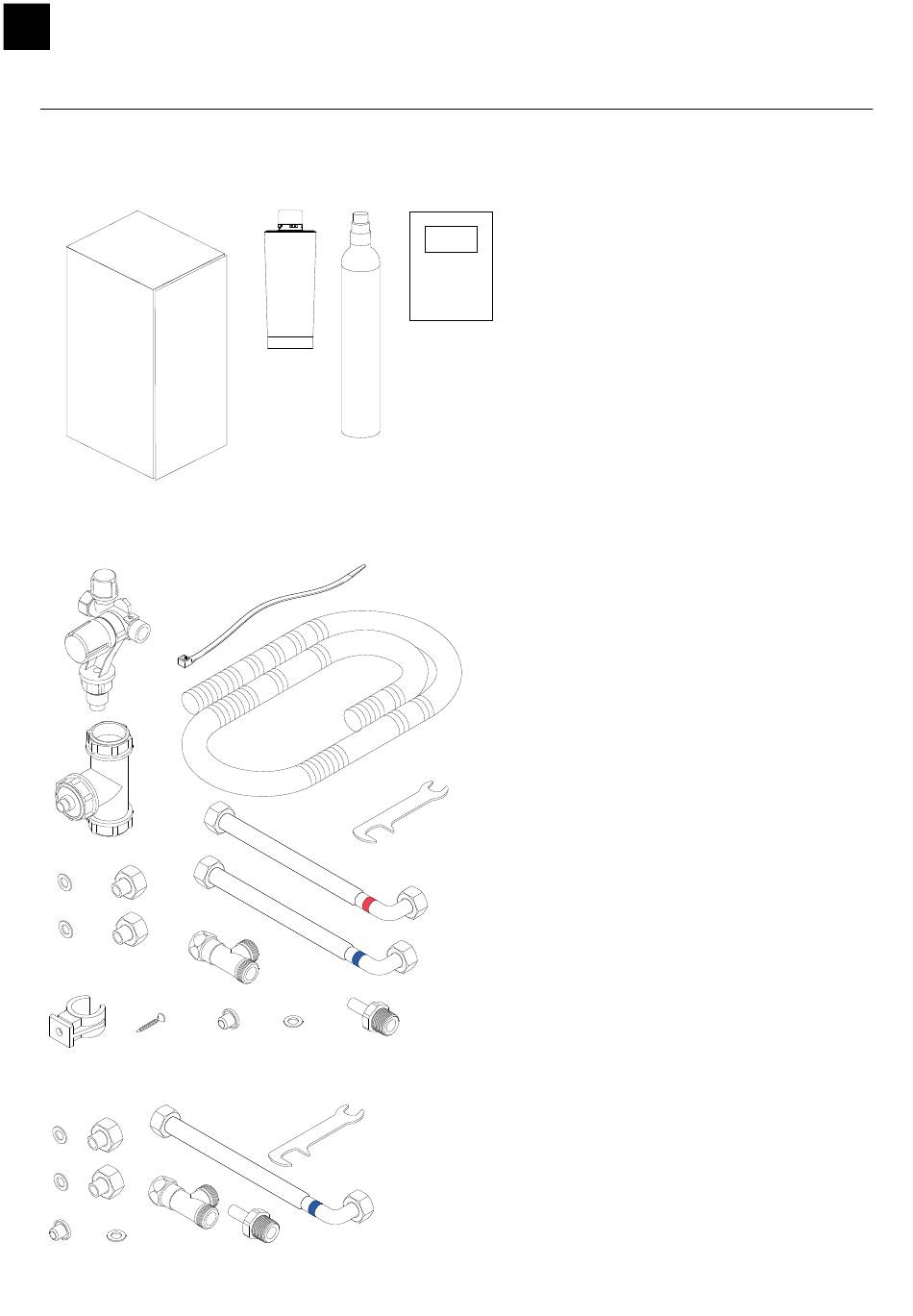

Overview
The package of Franke Mythos Water Hub contains
the following components:
1
Mythos Water Hub All-in-One - content
3
4
14
13
9
8
Mythos Water Hub Sparkling - content
13 14
10 11
2
1
5
6
7
10
11
6
15
7
12
3 4
1.
2. Water filter cartridge
3. CO₂ cylinder
4. Installation kit
2
15
12
10
Device
1. Tie-wrap
2. Expansion water hose
3. Safety valve flat in/out
4. T-Joint drain
5. Flexible water hose (red tag, 1 m,
M15, G1/2'')
6. Flexible water hose (blue tag,
1 m, G3/8'', G3/8'')
7. T-Piece 3/8''
8. Clamp 20/22 mm
9. Clipboard screw 4 × 25 pc.
10. Hat filter metal EU
11. Flat gasket G3/8''
12. Stem adapter ASA 0806M
13. Flat gasket G1/2'' (only for UK
version)
14. Adapter 1/2''F – 3/8''M (only for
UK version)
15. Sheet metal open-end wrench
20/13 mm
