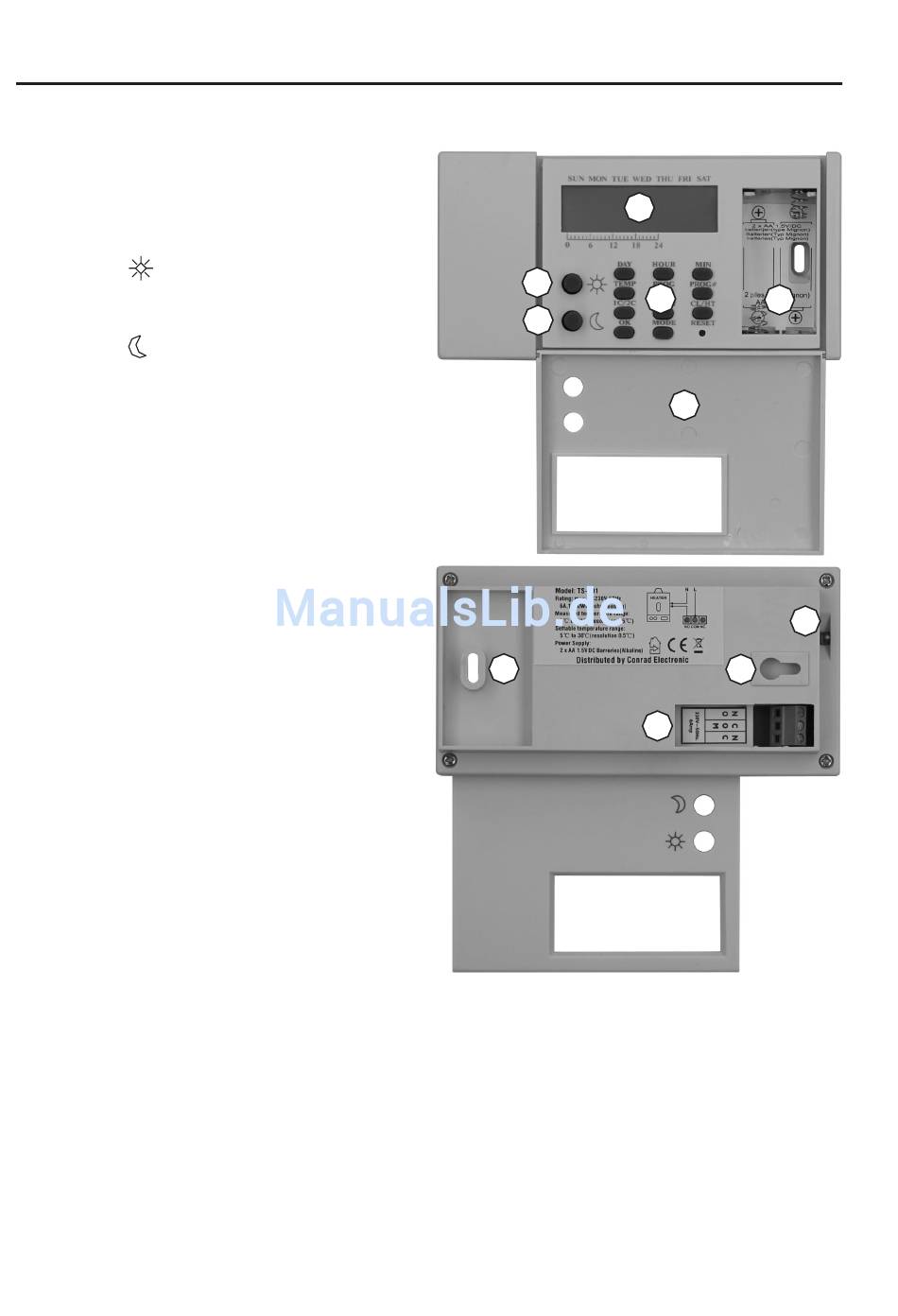

7. Control Elements and Connections

a) Front and Back

1 Folding lid for covering the keypad and
battery compartment
2 LC display
3 Button " " for comfort temperature
(regular temperature)
4 Button " " for savings temperature
(night reduction)
5 Operating buttons
6 Battery compartment for 2 batteries
type AA/mignon (figure without battery
compartment lid)
7 Attachment hole 1
8 Attachment hole 2
9 Temperature sensor
10 Relay screw terminals
NC/COM/NO
(for connection to heating or cooling
unit or external control)
