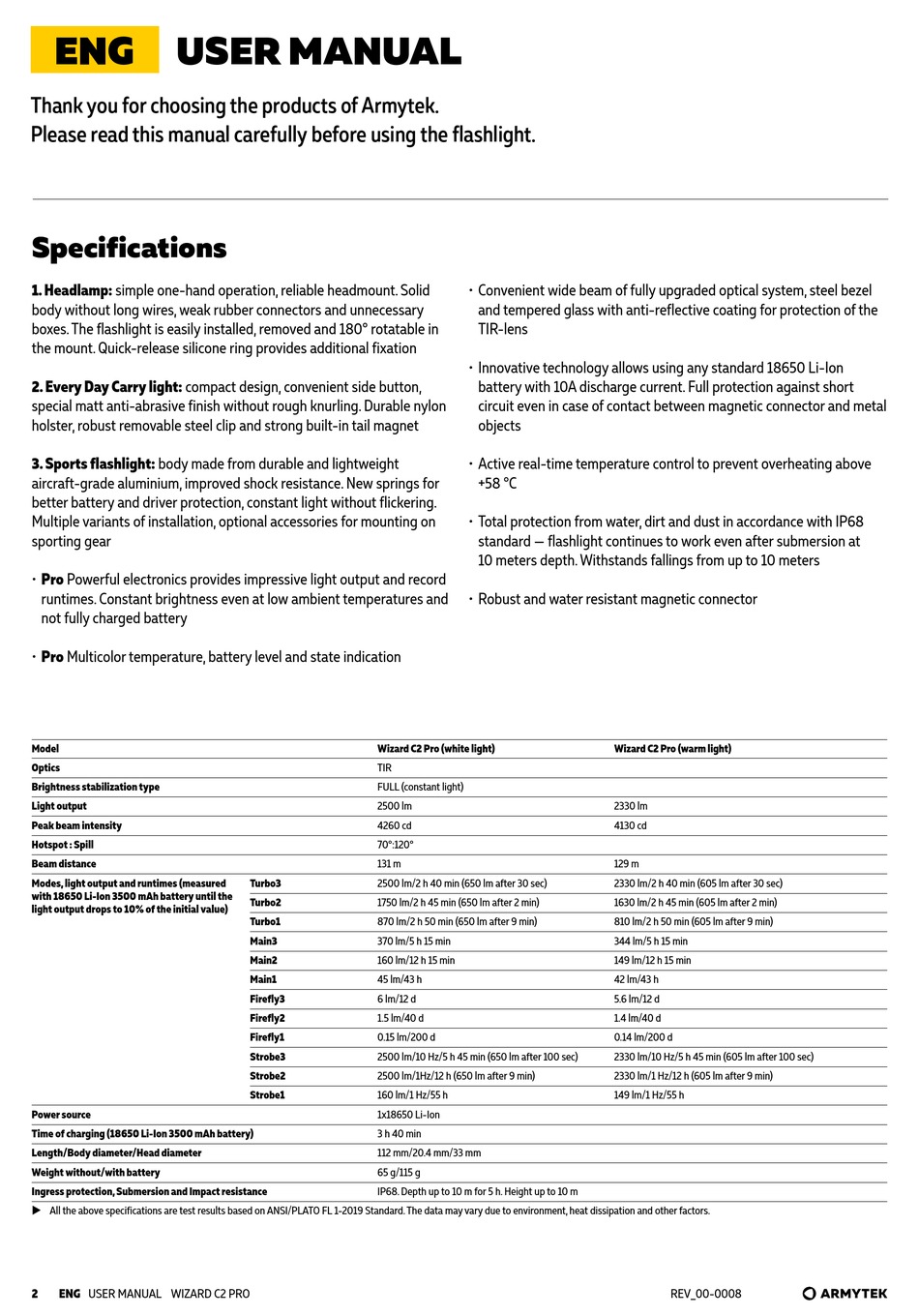

ENG USER MANUAL
Thank you for choosing the products of Armytek.
Please read this manual carefully before using the flashlight.
Specifications
1. Headlamp: simple one-hand operation, reliable headmount. Solid
body without long wires, weak rubber connectors and unnecessary
boxes. The flashlight is easily installed, removed and 180° rotatable in
the mount. Quick-release silicone ring provides additional fixation
2. Every Day Carry light: compact design, convenient side button,
special matt anti-abrasive finish without rough knurling. Durable nylon
holster, robust removable steel clip and strong built-in tail magnet
3. Sports flashlight: body made from durable and lightweight
aircraft-grade aluminium, improved shock resistance. New springs for
better battery and driver protection, constant light without flickering.
Multiple variants of installation, optional accessories for mounting on
sporting gear
• Pro Powerful electronics provides impressive light output and record
runtimes. Constant brightness even at low ambient temperatures and
not fully charged battery
• Pro Multicolor temperature, battery level and state indication
Model
Optics
Brightness stabilization type
Light output
Peak beam intensity
Hotspot : Spill
Beam distance
Modes, light output and runtimes (measured
with 18650 Li-Ion 3500 mAh battery until the
light output drops to 10% of the initial value)
Power source
Time of charging (18650 Li-Ion 3500 mAh battery)
Length/Body diameter/Head diameter
Weight without/with battery
Ingress protection, Submersion and Impact resistance
X All the above specifications are test results based on ANSI/PLATO FL 1-2019 Standard. The data may vary due to environment, heat dissipation and other factors.
2 ENG USER MANUAL WIZARD C2 PRO
Wizard C2 Pro (white light)
TIR
FULL (constant light)
2500 lm
4260 cd
70°:120°
131 m
Turbo3
2500 lm/2 h 40 min (650 lm after 30 sec)
Turbo2
1750 lm/2 h 45 min (650 lm after 2 min)
Turbo1
870 lm/2 h 50 min (650 lm after 9 min)
Main3
370 lm/5 h 15 min
Main2 160 lm/12 h 15 min
Main1 45 lm/43 h
Firefly3 6 lm/12 d
Firefly2 1.5 lm/40 d
Firefly1 0.15 lm/200 d
Strobe3 2500 lm/10 Hz/5 h 45 min (650 lm after 100 sec)
Strobe2 2500 lm/1Hz/12 h (650 lm after 9 min)
Strobe1 160 lm/1 Hz/55 h
1x18650 Li-Ion
3 h 40 min
112 mm/20.4 mm/33 mm
65 g/115 g
IP68. Depth up to 10 m for 5 h. Height up to 10 m
• Convenient wide beam of fully upgraded optical system, steel bezel
and tempered glass with anti-reflective coating for protection of the
TIR-lens
• Innovative technology allows using any standard 18650 Li-Ion
battery with 10A discharge current. Full protection against short
circuit even in case of contact between magnetic connector and metal
objects
• Active real-time temperature control to prevent overheating above
+58 °C
• Total protection from water, dirt and dust in accordance with IP68
standard — flashlight continues to work even after submersion at
10 meters depth. Withstands fallings from up to 10 meters
• Robust and water resistant magnetic connector
Wizard C2 Pro (warm light)
2330 lm
4130 cd
129 m
2330 lm/2 h 40 min (605 lm after 30 sec)
1630 lm/2 h 45 min (605 lm after 2 min)
810 lm/2 h 50 min (605 lm after 9 min)
344 lm/5 h 15 min
149 lm/12 h 15 min
42 lm/43 h
5.6 lm/12 d
1.4 lm/40 d
0.14 lm/200 d
2330 lm/10 Hz/5 h 45 min (605 lm after 100 sec)
2330 lm/1 Hz/12 h (605 lm after 9 min)
149 lm/1 Hz/55 h
REV_00-0008
