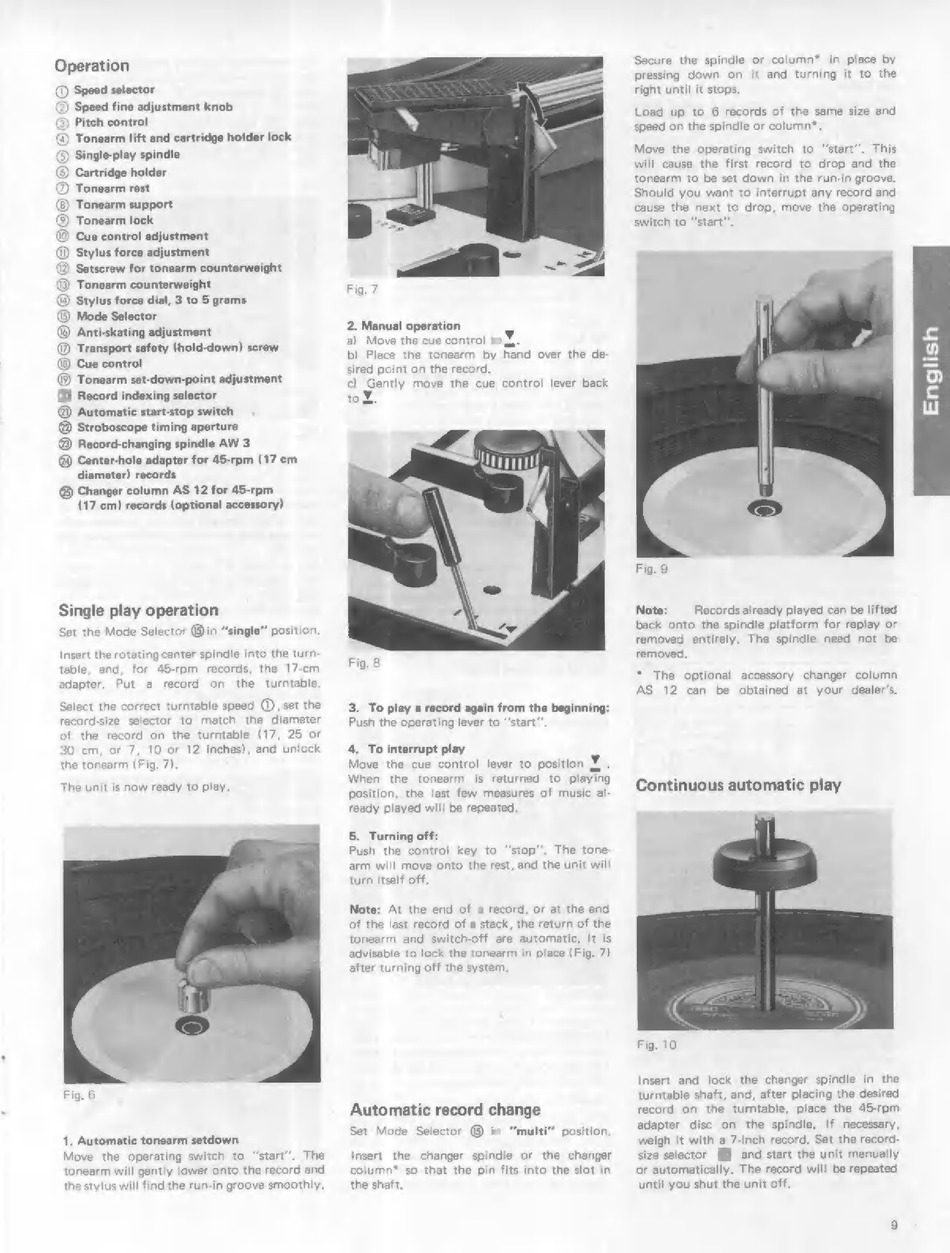

Operation
© Speed selector
( 2 ) Speed fine adjustment knob
@ Pitch control
4) Tonearm lift and cartridge holder lock
© Single-play spindle
© Cartridge holder
7) Tonearm rest
(8) Tonearm support
Tonearm lock
Cue control adjustment
Stylus force adjustment
Setscrew for tonearm counterweight
Tonearm counterweight
Stylus force d i a l ,
3 to 5 grams
Mode Selector
Anti-skating adjustment
Transport safety (hold-down) screw
Cue control
Tonearm set-down-point adjustment
@ Record indexing selector
@ Automatic start-stop switch
@ Stroboscope timing aperture
@ Record-changing spindle AW 3
@ Center-hole adapter for 45-rpm (17 cm
diameter) records
@ Changer column AS 12 for 45-rpm
(17 cm) records (optional accessory)
Single play operation
Set the Mode Selector ®in "single" position
Insert the rotating center spindle into the turn.
table, and,
for 45-rpm records, the 17-cm
adapter,
Put a record on the turntable.
Select the correct turntable speed (), set the
record-size
selector
to
match
the
diameter
of
the
record
on
the
turntable
(17,
25 or
30 cm, or 7, 10 or 12 inches), and unlock
the tonearm (Fig. 7)
The unit is now ready to play
Fig. 6
1. Automatic tonearm setdown
Move the operating switch to "start". The
tonearm will gently lower onto the record and
the stylus will find the run-in groove smoothly.
Fig. 7
2. Manual operation
a) Move the cue control to Y,.
b)
Place
the
tonearm
by hand
over
the de
sired point on the record.
c)
Gently
move
the
cue
control
lever
back
Fig. 8
3. To play a record again from the beginning:
Push the operating lever to "start".
4. To interrupt play
Move the cue control lever to position Y .
When
the tonearm
is returned
to playing
position, the last few measures of music al-
ready played will be repeated.
5. Turning off:
Push the control key to "stop".
The tone-
arm
will move
onto
the rest,
and the unit will
turn itself off,
Note: At the end of a record, or at the end
of the last record of a stack, the return of the
tonearm and switch-off are automatic, It is
advisable to lock the tonearm in place (Fig. 7)
after turning off the system,
Automatic record change
Set Mode
Selector ® in "mul
position.
Insert the changer spindle or the changer
column* so that the pin fits into the slot in
the shaft
Secure the spindle or column* in place by
pressing down on it and turning it to the
right until it stops,
Load up to 6 records of the same size and
speed on the spindle or column".
Move the operating switch to "start", This
will
cause
the
first
record
to
drop
and
the
tonearm to be set down in the run-in groove.
Should you want to interrupt any record and
cause the next to drop, move the operating
switch
to "start",
Fig. 9
Note:
Records already played can be lifted
back
onto
the spindle
platform
for replay
or
removed entirely. The spindle need not be
removed.
The optional accessory changer column
AS 12 can be obtained at your dealer's.
Continuous automatic play
Fig. 10
Insert and lock the changer spindie in the
turntable shaft, and, after placing the desired
record on the turntable, place the 45-rpm
adapter disc on the spindle. If necessary,
weigh it with a 7-inch record. Set the record-
size selector
@
and start the unit manually
or automatically. The record will be repeated
until you shut the unit off.
