5. OPERATING INSTRUCTIONS

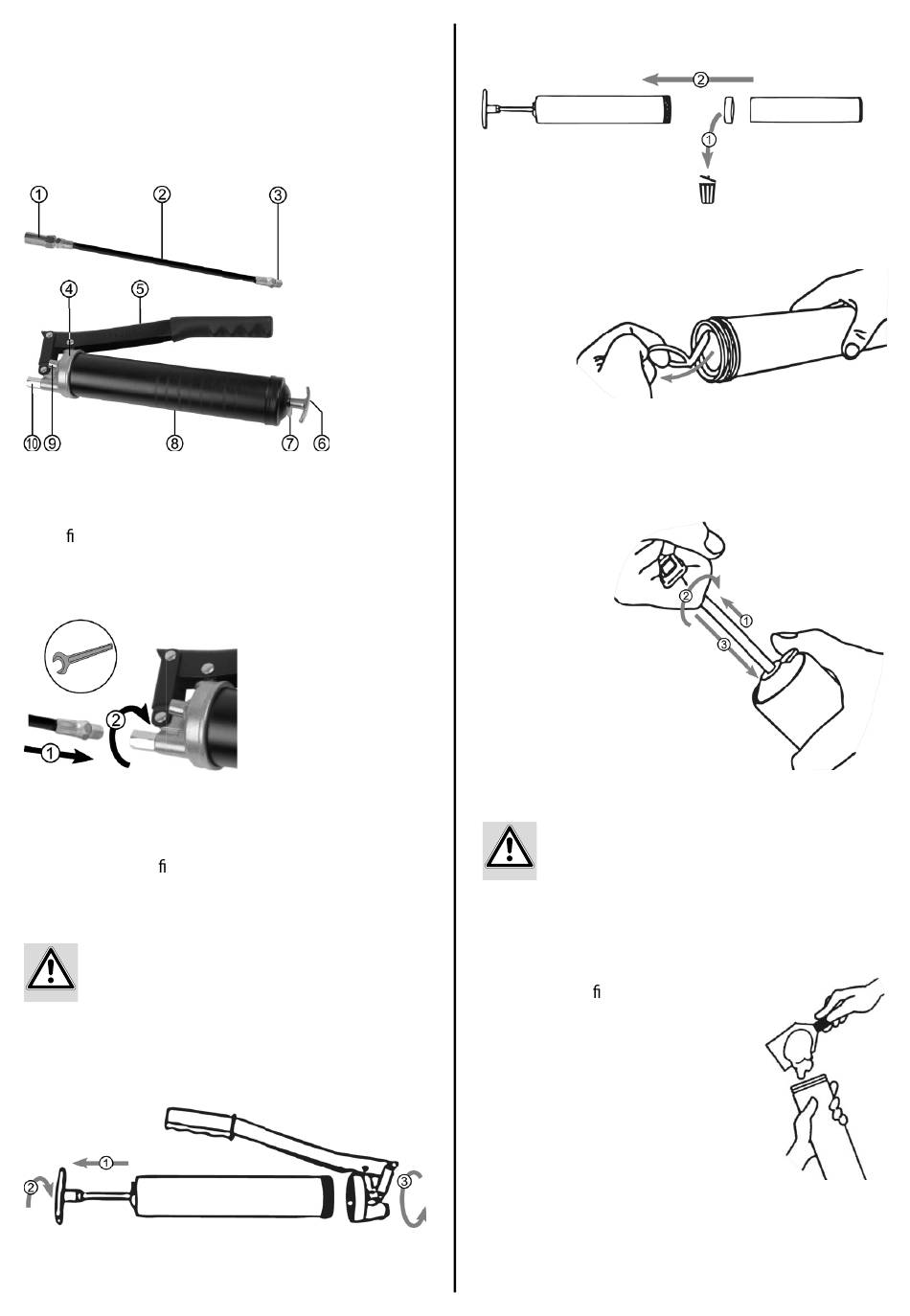

5.1 OVERVIEW
1 Coupling
2 High-pressure hose
3 Hose thread
4 Press head
5 Hand lever
Figure 1: Overview
5.2 BEFORE FIRST USE
Before rst use, the high-pressure hose (position 2 in the overview)
must be connected to the press head (position 4 in the overview). To
do this, screw the hose thread (position 3 in the overview) into the
hose connection (position 10 in the overview) and tighten it (Fig. 2).
Figure 2: Connecting the hose
5.3 FILLING THE GREASE GUN
The grease gun can be lled with a cartridge, manually or by suction.
5.3.1 FILLING WITH CARTRIDGE
Do not open the grease gun under pressure! Before
separating the gun head from the gun housing, the push
rod must be pulled back and locked in place by the pawl.
Pull back the push rod (position 5 in the overview). Lock the push
rod by turning it so that the pawl (position 6 in the overview) can
engage. Unscrew the press head (Fig. 3).
Figure 3: Unscrew the press head
6 Push rod
7 Pawl
8 Press housing
9 Pressure relief valve
10 Hose connection
Remove the sealing cap from the cartridge and insert the cartridge
into the press housing (Fig. 4).
Figure 4:Insert cartridge
Open the cartridge (Fig. 5) and then screw the press head back on.
Figure 5: Open cartridge
Pull the push rod out slightly to release the pawl, twist the push rod
and then push it back into the press housing (Fig. 6).
Figure 6: Push back the push rod
5.3.2 FILLING WITH LOOSE GREASE
Do not open the grease gun under pressure! Before
separating the gun head from the gun housing, the push
rod must be pulled back and locked in place by the pawl.
Pull back the push rod (position 5 in the overview). Lock the push
rod by turning it so that the pawl (position 6 in the overview) can
engage. Unscrew the press head (Fig. 2).
Use a spatula to ll loose grease into the
press housing (Fig. 7).
Then screw the press head back on.
Pull the push rod out slightly to release the
pawl.
Twist the push rod and then push it back into
the press housing (Fig. 6).
Figure 7: Pour in loose grease
