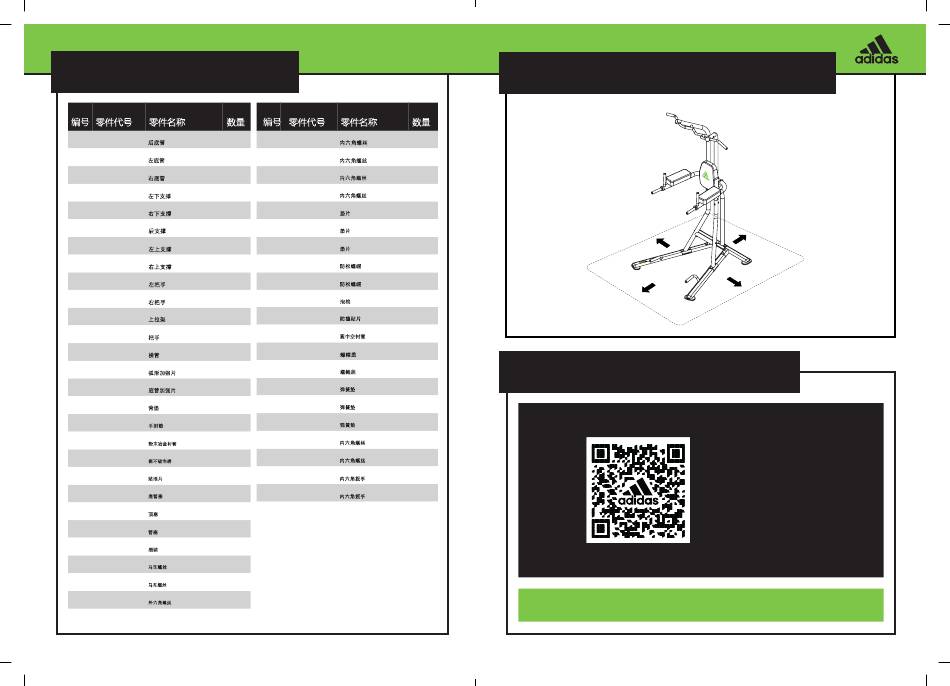

PA RT S L I ST
零件清单
No.
Code
Description
QTY
1
FMAD616-01
Rear Base Frame
1
2
FMAD616-02
Left Base Frame
1
3
FMAD616-03
Right Base Frame
1
4
FMAD616-04
Left Upright Beam
1
5
FMAD616-05
Right Upright Beam
1
6
FMAD616-06
Rear Support
1
7
FMAD616-07
Left Upper Frame
1
8
FMAD616-08
Right Upper Frame
1
9
FMAD616-09
Left Arm Support
1
10
FMAD616-10
Right Arm Support
1
11
FMAD616-11
Chin-Up Bar
1
12
FMAD616-12
Dip Handle
2
13
FMAD616-13
Cross Brace
1
14
FMAD616-14
Curved Bracket
2
15
FMAD616-15
Bracket
3
16
FMAD616-16
Backrest Board
1
17
FMAD616-17
Arm Pad
2
18
FMAD616-18
Bushing Ø25xØ12mm
4
19
FMAD616-19
Grip Griff 150mm
8
20
FMAD616-20
Base Frame Cap
4
21
FMAD616-21
End Cap PT40x80mm
4
22
FMAD616-22
Tube End Cap
2
23
PRK1-03
End Cap
8
24
FMAD616-23
Lock Pin
1
25
FMAD616-24
Carriage Bolt M10x75mm
8
26
PFM6240W-19
Carriage Bolt M10x65mm
10
27
FMAD616-25
HEX Bolt M12x90mm
2
12 POWER TOWER - ASSEMBLY MANUAL
No.
Code
Description
QTY
28
PFM2240-22
Allen Bolt M10x65mm
2
29
FMAD616-26
Allen Bolt M10x50mm
2
30
PFM404-18
Allen Bolt M10x25mm
7
31
PFMH1005-32
Allen Bolt M8x70mm
4
32
PRK3E-05
Washer Ø12mm
4
33
PRK1-06
Washer Ø10mm
36
34
PFM2006-27
Washer Ø8mm
8
35
PRK3E-04
Aircraft Nut M12
2
36
PRK1-05
Aircraft Nut M10
23
37
PFM504-16
Foam Grip
2
38
FMAD616-27
Sand Panel
2
39
FMAD616-28
Spacer
2
40
FMAD616-29
Bolt Cover Cap M12
4
41
FMAD614AB-23
Bolt Cover Cap M10
23
42
PFMCS704-12
Spring Washer M12
2
43
FMAD613-06
Spring Washer M10
31
44
FMAD613-07
Spring Washer M8
8
45
PFM2240-20
Allen Bolt M10x70mm
2
46
FMAD616-30
Allen Bolt M8x75mm
4
47
3B69E00009
Allen Wrench 5#
1
48
3B69E00010
Allen Wrench 6#
1
SA F E T Y P E R I M E T E R
1M
1M
CO R R E C T U SAG E
WWW.ADIDASHARDWARE.COM/PERFORMANCE-BENCHES
安全范围
1M
1M
正确使用
SCAN
TO
TRAIN
WWW.ADIDASHARDWARE.COM 13
