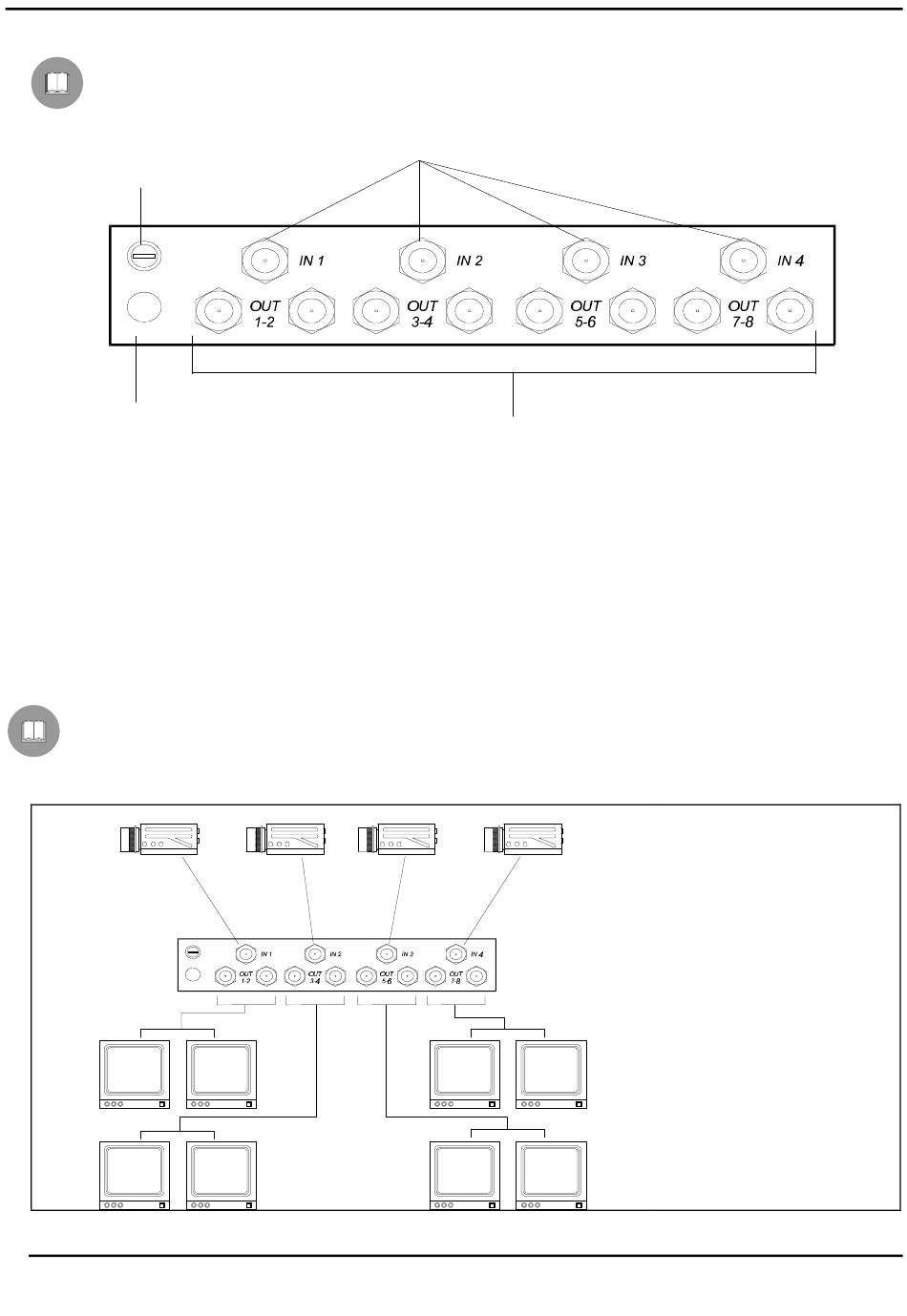

Connectors and connections
The VD48P unit features 12 BNC connectors located at the rear of the mechanics and 1 protection fuse:
Fuse 50 mAT 250V
Power supply
Connection of VD48P unit to the peripheral units
Video input connection
Where to operate :BNC IN1, IN2, IN3, IN4 connectors at the rear of the mechanics
Selections : connect the video signals coming from the telecameras to the connectors
Output connection
Where to operate: BNC OUT1..OUT8 connectors at the rear of the mechanics
Selections: connect the monitors, where the input video signals are displayed, to the connectors
Installation example
The video signal of each telecamera is displayed in the 2 monitors connected to the respective outputs:
Video inputs
Video outputs
Pag. 5
MATERIAL USED
Video part:
•
8 monitors
•
4 telecameras
•
1 video distributor VD48P
VD48P9828
