Technical specifications

Engine working temperature: -26°C ~ + 80°C
»
Control unit power supply: 230V
»
Power: 350W
»
Transmission mode output: M = 4
»
Torque: 30.0 N.m
»
Opening / closing speed: 12m / min
»
Rotations: 1400rpm
»
Pull force: 1100N (Newton)
»
Maximum load supported: 800 kg
»
Maximum communication distance with remote control: 50 m
»

Main features

Possibility to connect the photocell (included), access keyboard, access
»
button and other access control accessories
Possibility to connect the safety lamp (included)
»
Automatic closing
»
Adjustable sensitivity
»

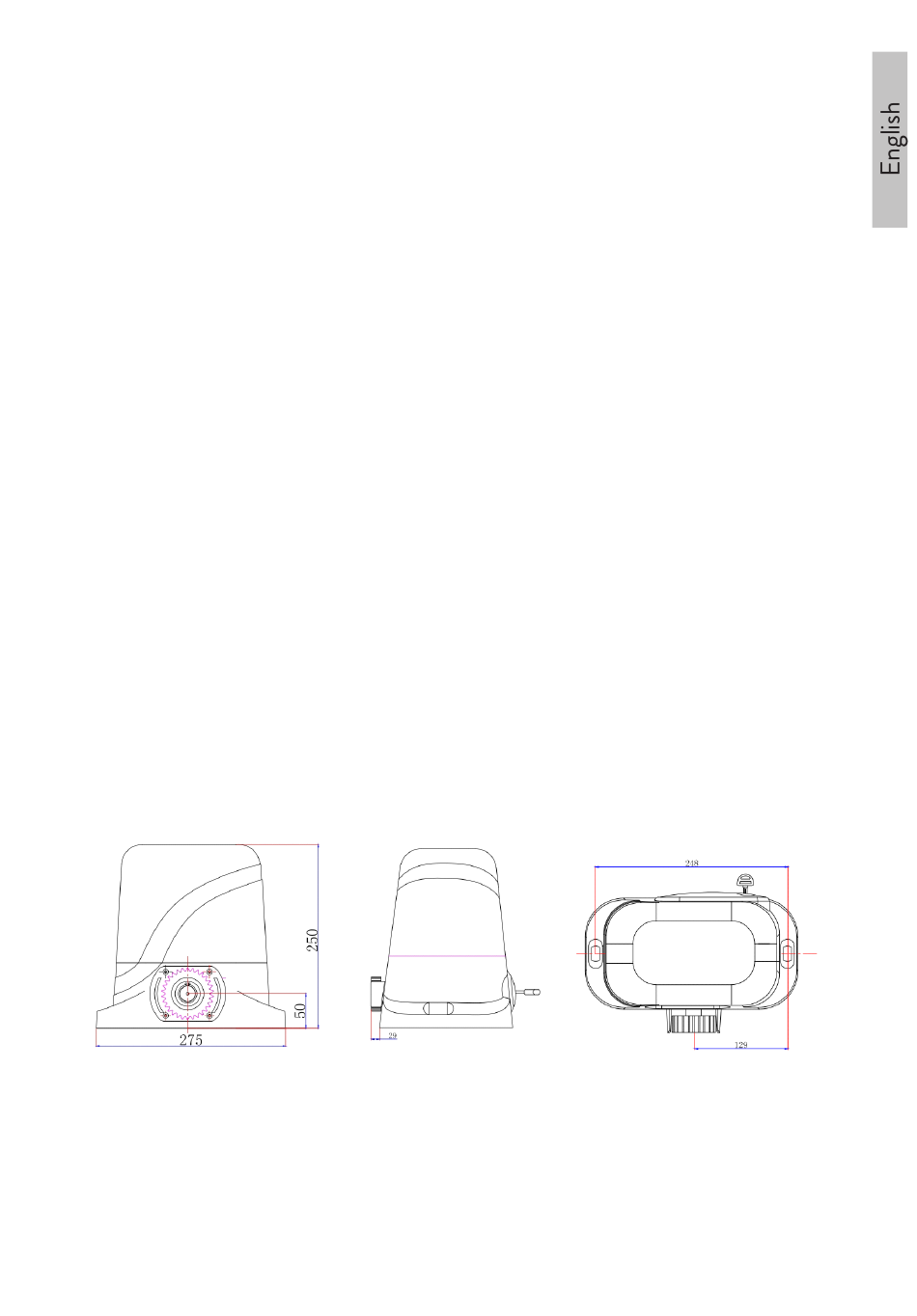

Dimensions:
Important notes
Power the control unit to a separate 10A power supply.
»
Keep a distance between the rack and the gear of the engine so as not to
»
overload the engine.
5 User manual
