IP66 COB 60/150W 4in1 RGBL architectural projectors

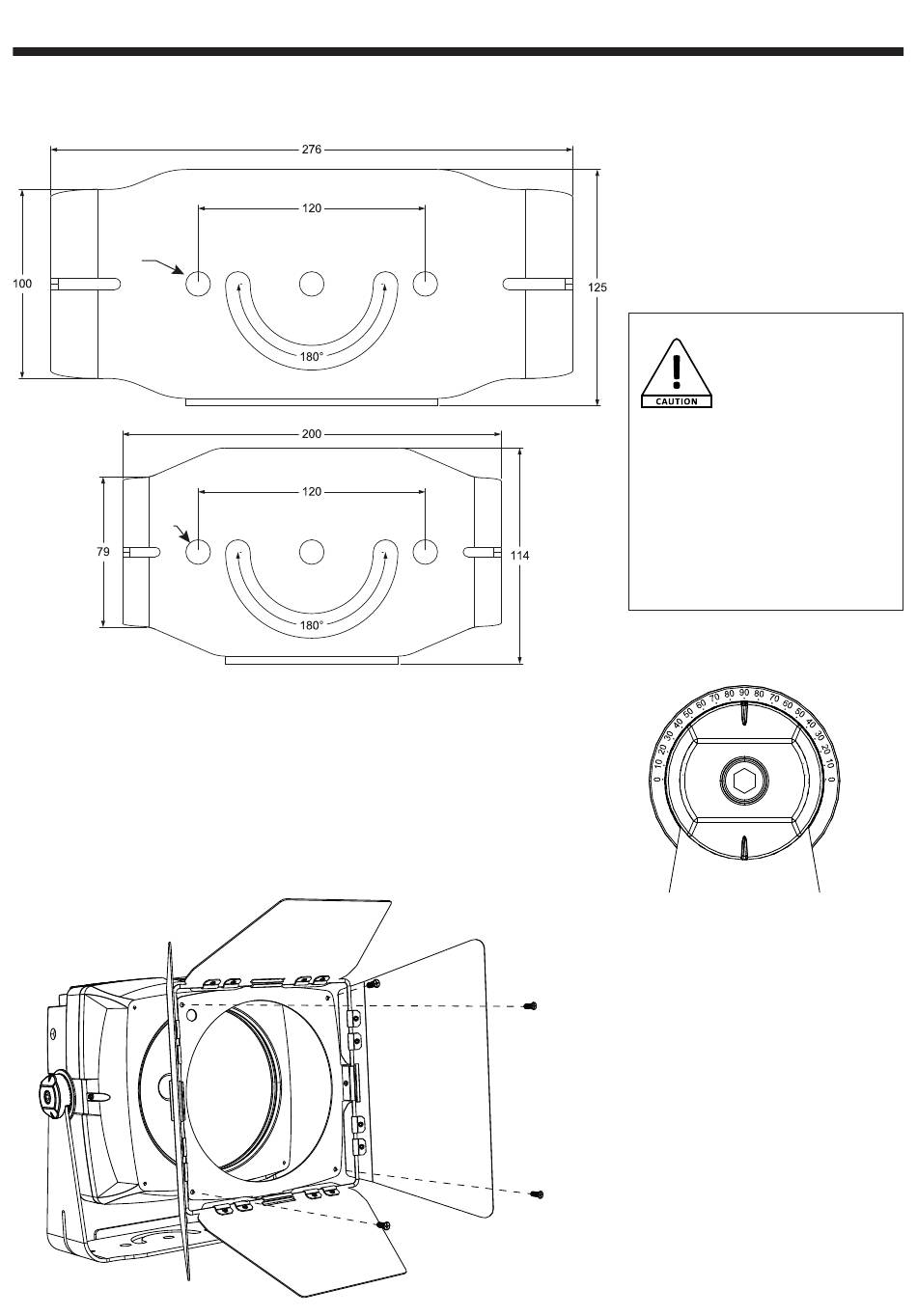

4 - Attaching the bracket and aiming the projector
Ø13
C
Ø13
C
To choose the tilt angle of your projector: loosen the central screw using a 6mm Allen key and
rotate the projector. The notched clamping part allows the projector to be positioned permanently
and the marking of the angles provides information on the direction of the beam (see figure
opposite).
5 - Shutter assembly
A
C
B
A
C
B
The projector can be fixed on a
suitable flat surface using three
attachment points A C C. The notch
B is used to lock the rotation of the
projector in Pan over 180°.
Temporary hanging is possible using
two clamps fixed through the external
holes C.
support. It is mandatory to install a
safety sling. When installing in a public
place, legislation requires each device
to have a double safety hook. This
security system must support 10 times
the weight of the device so you must
provide a sling capable of supporting at
least 37 kg for the VCOB-60 and 87 kg
for the VCOB-120.
The shutter is supplied in the device packaging. It is fixed
using 4 screws on the front of the projector.
English
CAUTION !
Ensure that the anchor
points are properly
tightened. Use 12mm
stainless screws and
check the solidity of the
