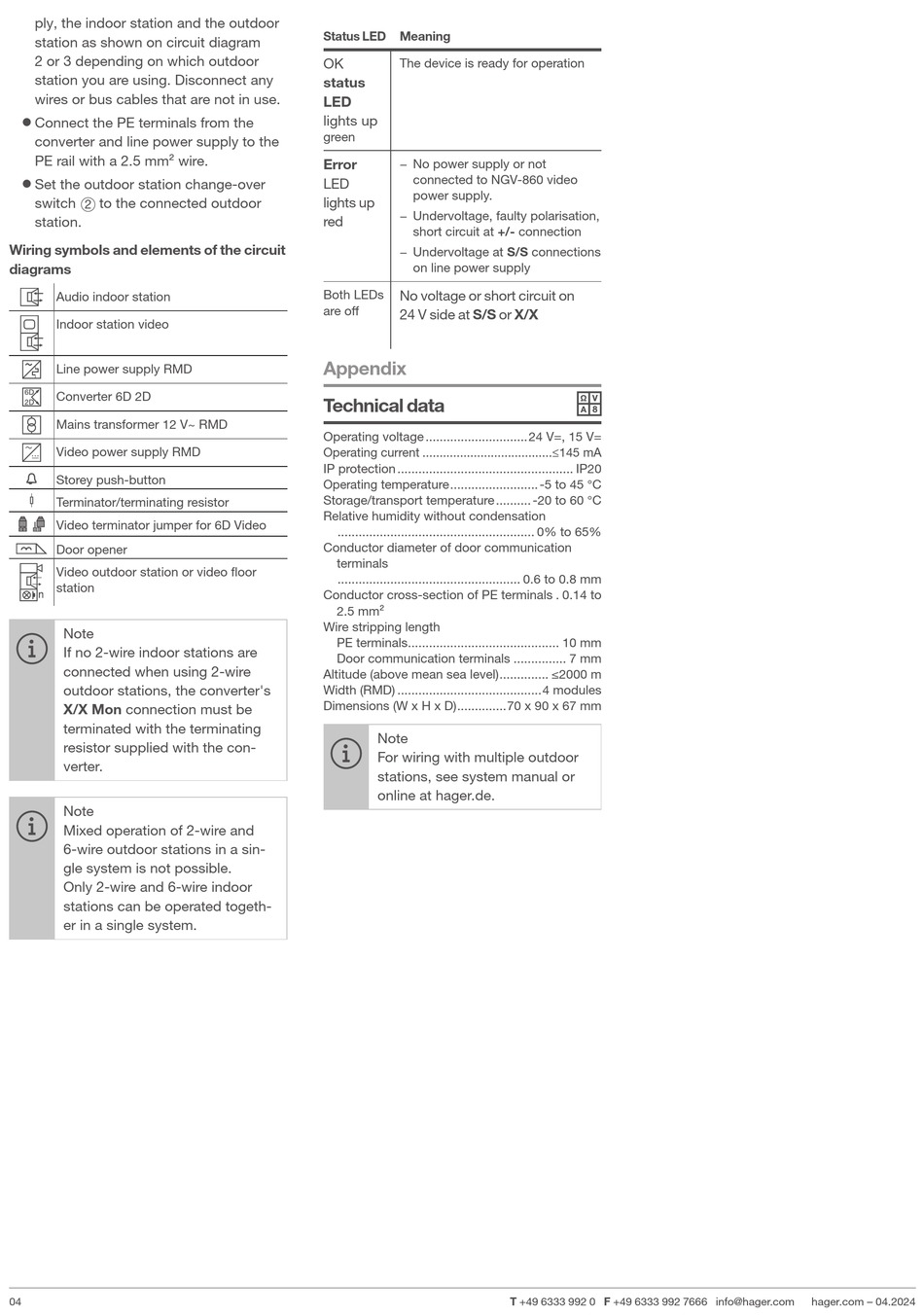

ply, the indoor station and the outdoor
station as shown on circuit diagram
2 or 3 depending on which outdoor
station you are using. Disconnect any
wires or bus cables that are not in use.
•
Connect the PE terminals from the
converter and line power supply to the
PE rail with a 2.5 mm² wire.
•
Set the outdoor station change-over
switch 2 to the connected outdoor
station.
Wiring symbols and elements of the circuit
diagrams
Audio indoor station
Indoor station video
Line power supply RMD
Converter 6D 2D
Mains transformer 12 V~ RMD
Video power supply RMD
Storey push-button
Terminator/terminating resistor
Video terminator jumper for 6D Video
Door opener
Video outdoor station or video floor
station
Note
If no 2-wire indoor stations are
connected when using 2-wire
outdoor stations, the converter's
X/X Mon connection must be
terminated with the terminating
resistor supplied with the con-
verter.
Note
Mixed operation of 2-wire and
6-wire outdoor stations in a sin-
gle system is not possible.
Only 2-wire and 6-wire indoor
stations can be operated togeth-
er in a single system.
04
Status LED
Meaning
OK
The device is ready for operation
status
LED
lights up
green
Error
− No power supply or not
connected to NGV-860 video
LED
power supply.
lights up
− Undervoltage, faulty polarisation,
red
short circuit at +/- connection
− Undervoltage at S/S connections
on line power supply
Both LEDs
No voltage or short circuit on
are off
24 V side at S/S or X/X
Appendix
Technical data
Operating voltage .............................24 V=, 15 V=
Operating current ......................................≤145 mA
IP protection .................................................. IP20
Operating temperature ......................... -5 to 45 °C
Storage/transport temperature .......... -20 to 60 °C
Relative humidity without condensation
........................................................ 0% to 65%
Conductor diameter of door communication
terminals
.................................................... 0.6 to 0.8 mm
Conductor cross-section of PE terminals . 0.14 to
2.5 mm²
Wire stripping length
PE terminals ........................................... 10 mm
Door communication terminals ............... 7 mm
Altitude (above mean sea level) .............. ≤2000 m
Width (RMD) .........................................4 modules
Dimensions (W x H x D) ..............70 x 90 x 67 mm
Note
For wiring with multiple outdoor
stations, see system manual or
online at hager.de.
T +49 6333 992 0 F +49 6333 992 7666 info@hager.com
hager.com – 04.2024
