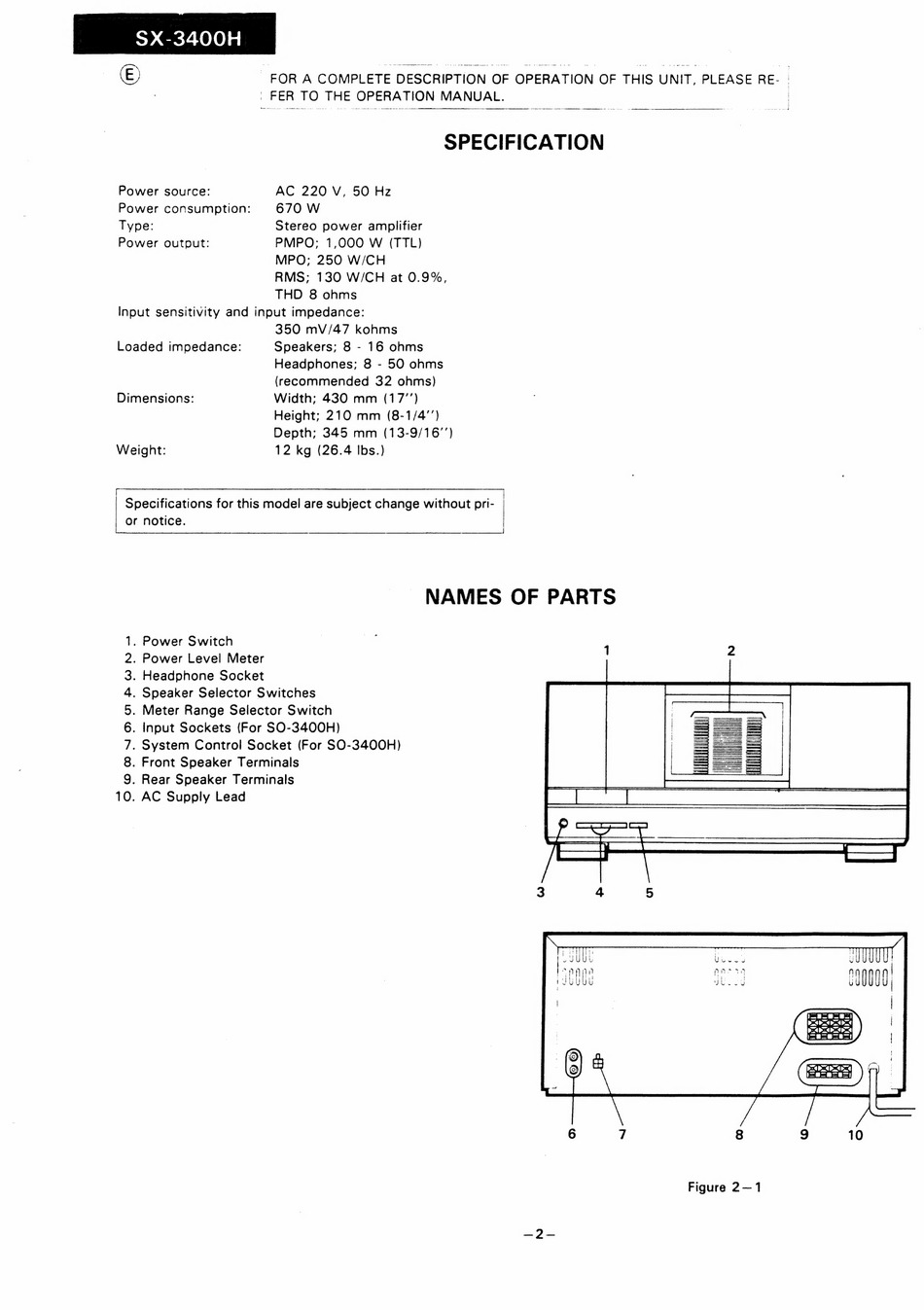

--§X-3400H
©)
| "FOR A COMPLETE DESCRIPTION OF OPERATION OF THIS UNIT, PLEASE RE-
_FER TO THE OPERATION MANUAL.
SPECIFICATION
Power source:
AC 220 V, 50 Hz
Power consumption:
670 W
Type:
Stereo power amplifier
Power output:
PMPO;
1,000 W (TTL)
MPO; 250 W/CH
RMS;
130 W/CH
at 0.9%,
THD 8 ohms
Input sensitivity and input impedance:
350 mV/47 kohms
Loaded impedance:
Speakers; 8 - 16 ohms
Headphones;
8 - 50 ohms
(recommended
32 ohms)
Dimensions:
Width; 430 mm
(17"')
Height; 210 mm
(8-1/4'')
Depth; 345 mm
(13-9/16"')
Weight:
12 kg (26.4 Ibs.)
Specifications for this model are subject change without pri-
or notice.
NAMES OF PARTS
. Power Switch
. Power Level Meter
. Headphone Socket
. Speaker Selector Switches
. Meter Range Selector Switch
Input Sockets (For SO-3400H)
System Control Socket (For SO-3400H)
. Front Speaker Terminals
. Rear Speaker Terminals
. AC Supply Lead
Ii
|
:
—S—
|
OCWOMDNATHARWHND
—
=
reyUUb
I
UH
Figure 2—1
