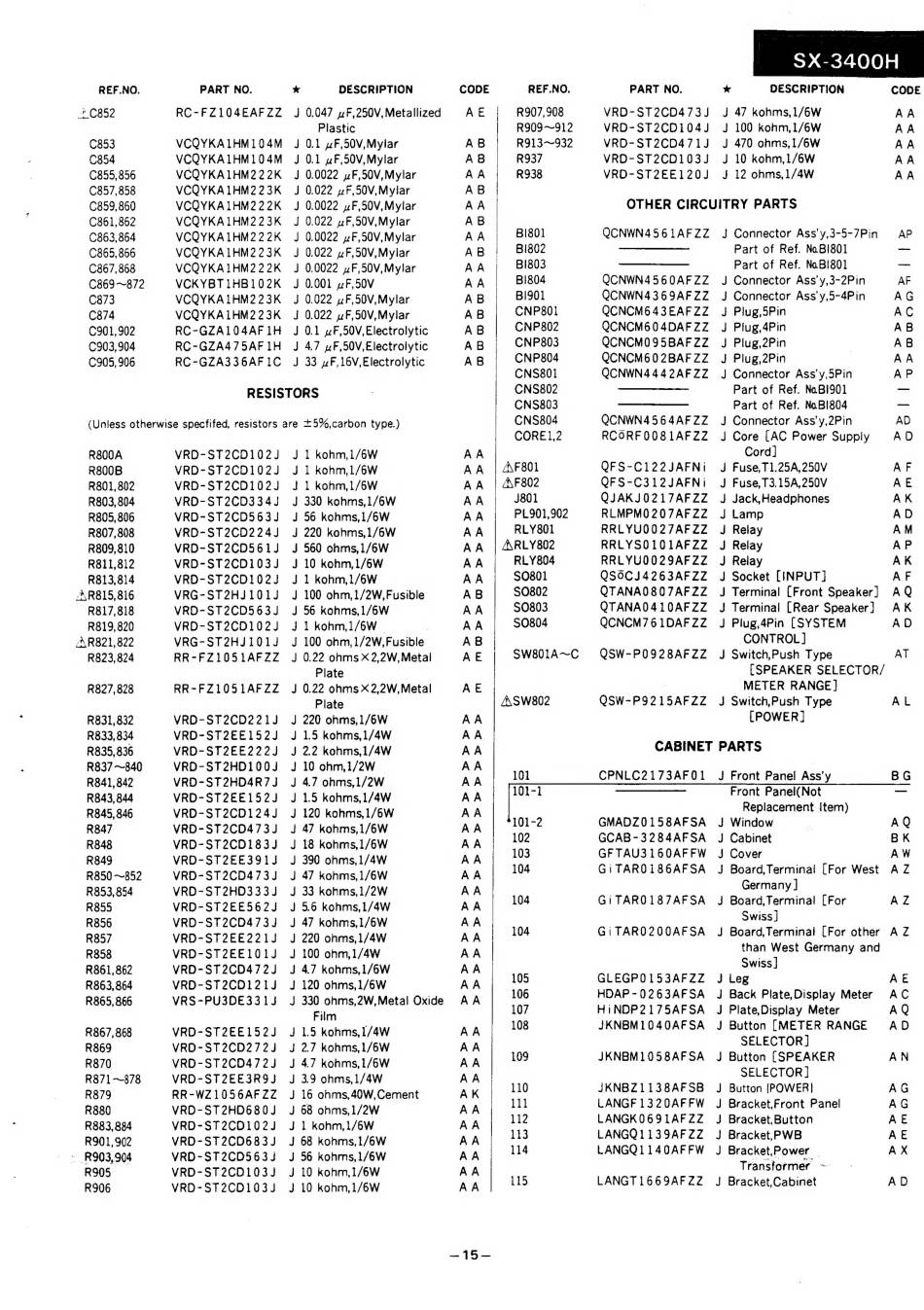

Sharp SX-3400H Serviceanleitung Seite 15

SX-3400H
S46 =
REF.NO. PART NO. * DESCRIPTION CODE REF.NO. PART NO. * DESCRIPTION CODE
+ C852 RC-FZ104EAFZZ J 0.047 wF,250V,Metallized AE | R907,908 VRD-ST2CD473J J 47 kohms,1/6W AA
Plastic R909~912 VRD-ST2CD104J J 100 kohm,1/6W AA
C853 VCQYKA1HM104M J 0.1 wF,50V,Myiar AB R913~932 VRD-ST2CD471J J 470 ohms,1/6W AA
C854 VCQYKALHM104M J 0.1 uF,50V,Mylar AB R937 VRD-ST2CD103J J 10 kohm,1/6W AA
C855,856 VCQYKALHM222K J 0.0022 4 F,50V,Mylar AA R938 VRD-ST2EE120J J 12 ohms,1/4W AA
C857,858 VCQYKA1HM223K J 0.022 uF,50V,Mylar AB |
C859,860 VCQYKALHM222K J 0.0022 uF,50V,Mylar AA OTHER CIRCUITRY PARTS
C861,862 VCQYKALHM223K J 0.022 uF,50V,Mylar AB
C863,864 VCQYKALHM222K J 0.0022 .F,50V,Mylar AA Bl801 QCNWN4561AFZZ J Connector Ass'y,3-5-7Pin AP
C865, 866 VCQYKALHM223K J 0.022 uF,50V,Mylar AB B1802 —— <= Part of Ref. NoBI801 =
C867, 868 VCQYKAIHM222K J 0.0022 uF,50V,Mylar AA BI803 —— Part of Ref. NoBI801 —
C869 -~872 VCKYBTIHB102K J 0.001 «F,50V AA Bi804 QCNWN4560AFZZ J Connector Ass'y,3-2Pin AF
C873 VCQYKA1HM223K J 0.022 uF,50V,Mylar AB BI901 QCNWN4369AFZZ J Connector Ass'y,5-4Pin AG
C874 VCQYKA1HM223K J 0.022 wF,50V,Mylar AB CNP801 QCNCM643EAFZZ J Plug,SPin AC
C901, 902 RC-GZA1O4AF1H J 0.1 uF,50V,Electrolytic AB CNP802 QCNCM604DAFZZ J Plug,4Pin AB
C903,904 RC-GZA475AF1H J 47 uF,50V,Electrolytic AB CNP803 QCNCMO95BAFZZ J Plug,2Pin AB
C905, 906 RC-GZA336AF1C J 33 uF,16V,Electrolytic AB CNP804 QCNCM602BAFZZ J Plug,2Pin AA
CNS801 QCNWN4442AFZZ J Connector Ass'y,5Pin AP
RESISTORS CNS802 ———--__— Part of Ref. NoBi901 _
CNS803 ——— Part of Ref. NaBi804 =
(Unless otherwise specfifed, resistors are +5%,carbon type.) CNS804 QCNWN4564AFZZ J Connector Ass'y,2Pin AD
CORE1,2 RCORFOO81AFZZ J Core [AC Power Supply AD
R800A VRD-ST2CD102J J 1 kohm1/6W AA Cord]
R800B VRD-ST2CD102J J 1 kohm,1/6W AA | AF801 QFS-C122JAFNi J Fuse,T1.25A,250V AF
R801, 802 VRD-ST2CD102J J 1 kohm,1/6W AA | {\F802 QFS-C312JAFNi J Fuse,73.15A,250V AE
R803, 804 VRD-ST2CD334J J 330 kohms,1/6W AA J801 QJAKJO2Z17AFZZ J Jack,Headphones AK
R805, 806 VRD-ST2CD563J J 56 kohms,1/6W AA PL901,902 RLMPMO207AFZZ J Lamp AD
R807,808 VRD-ST2CD224J J 220 kohms,1/6W AA RLY801 RRLYUOO27AFZZ J Relay AM
R809, 810 VRD-ST2CD561J J 560 ohms,1/6W AA | ARLY802 RRLYSOLOIAFZZ J Relay AP
R811,812 VRD-ST2CD103J J 10 kohm,1/6W AA RLY804 RRLYUOO29AFZZ J Relay AK
R813,814 VRD-ST2CD1025 J 1 kohm,1/6W AA $0801 QSOCJ4263AFZZ J Socket [INPUT] AF
R815, 816 VRG-ST2HJ1014 J 100 ohm1/2W,Fusible AB $0802 QTANAO807AFZZ J Terminal [Front Speaker] AQ
R817,818 VRD-ST2CD563J J 56 kohms,1/6W AA $0803 QTANAD410AFZZ J Terminal [Rear Speaker] AK
R819, 820 VRD-ST2CD102J J 1 kohm,1/6W ~ AA $0804 QCNCM761DAFZZ J Piug,4Pin [SYSTEM AD
ARB21,822
VRG-ST2HJ101J
J 100 ohm,1/2W,Fusible
AB
CONTROL]
R823,824 RR-FZ1051AFZZ J 0.22 ohms X2,2W,Metal AE SW80IA~C QSW-P0928AFZZ J Switch,Push Type AT
| Plate [SPEAKER SELECTOR/
R827,828 RR-FZ1051AFZZ J 0.22 ohmsX2,2W,Metal AE 7 METER RANGE]
Plate A\SW802 QSW-P9215AFZZ J Switch,Push Type AL
R831, 832 VRD-ST2CD221J J 220 ohms,1/6W AA [POWER]
R833, 834 VRD-ST2EE152J J 1.5 kohms,1/4W AA
R835, 836 VRD-ST2EE222J J 22 kohms,1/4W AA CABINET PARTS
R837 ~840 VRD-ST2HD100J J 10 ohm,1/2W AA
R841, 842 VRD-ST2HD4R7J3 J 4.7 ohms,1/2W AA | ,t01 CPNLC2173AF01 J Front Panel Ass'y BG
R843,844 VRD-ST2EE152J J 15 kohms,1/4W AA {| [101-1 <a Front Panel(Not a
R845, 846 VRD-ST2CD124J J 120 kohms,1/6W AA Replacement Item)
R847 VRD-ST2CD473J J 47 kohms,1/6W aA | 101-2 GMADZ0158AFSA J Window | AQ
R848 VRD-ST2CD183J J 18 kohms,1/6W Aa | 102 GCAB-3284AFSA J Cabinet BK
R849 VRD-ST2EE391J J 390 ohms,1/4W Aa | 103 GFTAUSIGOOAFFW J Cover AW
R850-~852 VRD-ST2CD473J J 47 kohms1/6W AA 104 GiTAROL86AFSA J Board,Terminai [For West A Z
R853,854 VRD-ST2HD333J J 33 kohms,1/2W AA | Germany ]
RBS5 VRD-ST2EE562J J 5.6 kohms1/4W AA | 104 GiTAROQ187AFSA J Board,Terminal {For Az
R856 VRD-ST2CD473J J 47 kohms,1/6W AA | Swiss]
Rae VRD-ST2EE221J J 220 ohms1/4W ag | 104 GiTARO200AFSA J Board,Terminal [For other A Z
R858 VRD-ST2EE101J J 100 ohm,1/4W AA than West Germany and
R861,862 VRD-ST2CD472J J 47 kohms,1/6W AA Swiss]
R863,864 VRD-ST2CD121J J 120 ohms,1/6W aA | 108 GLEGPOLS3AFZZ J Leg | AE
R865, 866 VRS-PU3DE3315 J 330 ohms,2W.Metal Oxide AA | 10 HDAP-0263AFSA J Back Plate,Display Meter AC
Eilm 107 HiNDP2175AFSA J Plate,Display Meter AQ
R867. 868 VRD-ST2EE152J J 15 kohms,1/4W re 108 JKNBMLO4OAFSA J Button [METER RANGE AD
R869 VRD-ST2CD272J J 27 kohms,1/6W AA SELECTOR]
R870 VRD-$T2CD472) J 47 kohms.1/6W aw 109 JKNBM1058AFSA J Button [SPEAKER AN
R871~878 VRD-ST2EE3R9J J 29 ohms,1/4W AA SELECTOR]
R879 RR-WZ1056AFZZ J 16 ohms,40W,Cement ak | 110 JKNBZ1138AFSB J Button [POWER] AG
R880 VRD-ST2HD680J J 68 ohms.1/2W AA 111 LANGFI1320AFFW J Bracket,Front Panel AG
R883.884 VRD-ST2CD102 J 1 kohm.1/6W fen 112 LANGKO691AFZZ J Bracket,Button AE
R901,902 VRD-ST2CD683J J 68 kohms,1/6W aa | ils LANGQII39AFZZ J Bracket,PWB AE
- 903,904 VRD-ST2CD563J J 56 kohms,1/6W aa | 114 LANGQLI40AFFW J Bracket,Power AX
R905 VRD-ST2CD103J J 10 kohm,1/6W AA Transformer ~
R906 VRD-ST2CD103J J 10 kohm,1/6W AA 115 LANGTI669AFZZ J Bracket,Cabinet AD
