1.0 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. Shipping
damage is not covered by warranty. If shipping damage is
found, notify carrier at once. The carrier is responsible for
all repair and replacement costs resulting from damage in
shipment.
SAFETY FIRST
Read all instructions, warnings and cautions carefully. Follow all
safety precautions to avoid personal injury or property damage
during system operation. Enerpac cannot be responsible for
damage or injury resulting from unsafe product use, lack of
maintenance or incorrect product and/or system operation.
Contact Enerpac when in doubt as to the safety precautions
and applications.
TO PROTECT YOUR WARRANTY, USE ONLY ENERPAC
HYDRAULIC OIL.
2.0 PRODUCT DESCRIPTION
Single-acting, load return cylinders with an overflow oilport
for stroke restriction. CLP cylinders are provided with a fully
threaded plunger and a safety lock nut for positive loadholding
operations. CLP cylinders do not have a stopring. See illustration
1. For specifications and dimensions see page 4.
3.0 GENERAL SAFETY ISSUES
Failure to comply with following cautions and warnings could
cause equipment damage or personal injury.
WARNING: CLP cylinders are NOT equipped with a
stopring to retain the plunger. To prevent plunger
over-extension, a port is provided to vent the oil out of
the cylinder as the plunger reaches the maximum stroke. When
the RED LINE around the plunger becomes visible, the plunger
is at maximum extension. Further extension could result in the
plunger being forced out of the cylinder. See illustration 1.
WARNING: NEVER remove the plug or substitute a
conventional pipe plug from the plunger travel restriction
port.
05/2019
Instruction Sheet
CLP-Series Cylinders
maximum pressure 700 bar [10,000 psi]

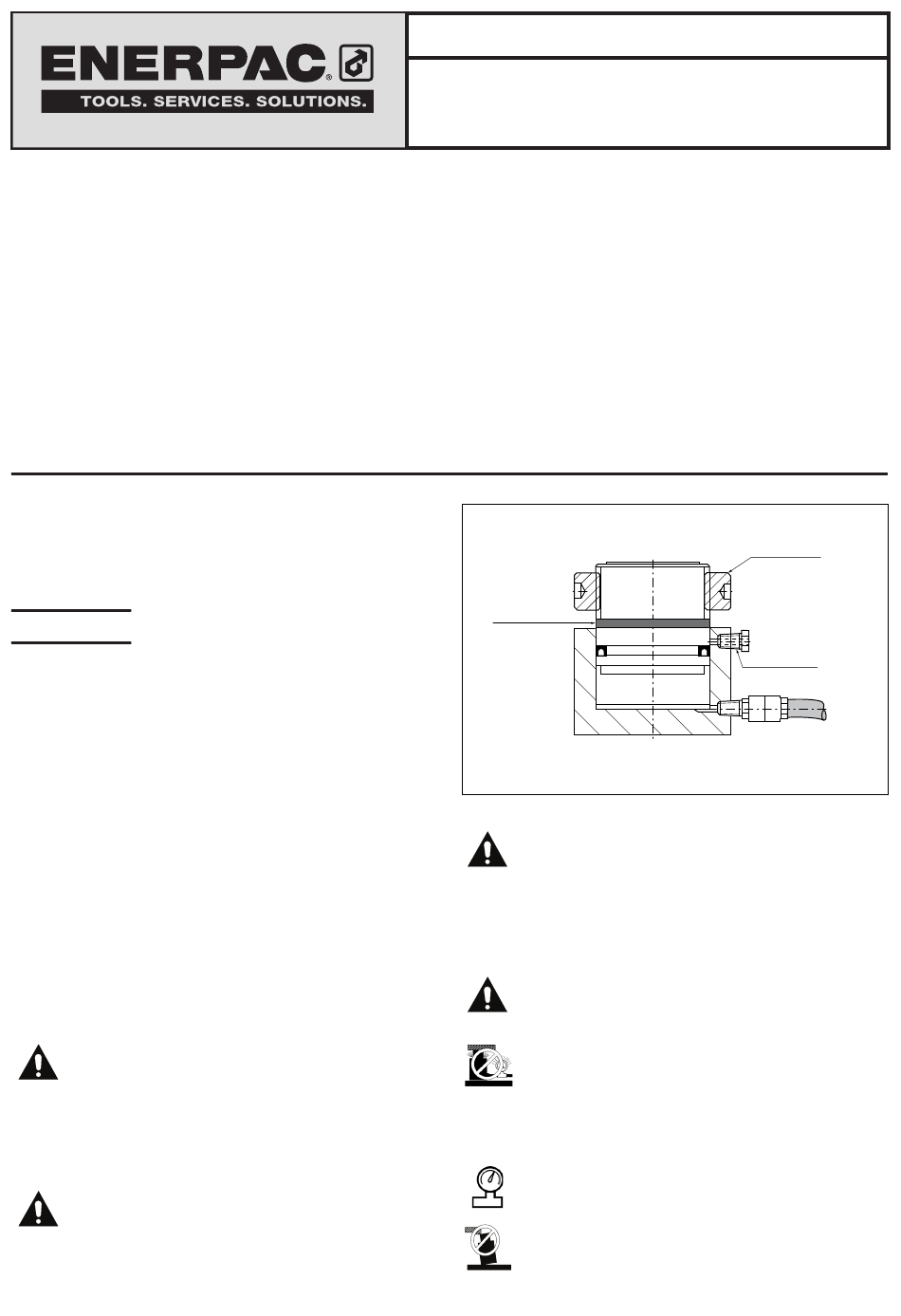

Illustration 1 - CLP cylinders
RED LINE
Plunger shown at maximum extension
WARNING: USE EXTREME CAUTION when using
high oil flow pumps with CLP cylinders. Oil flow from
pump into cylinder may be higher than the oil flow
capacity of the plunger travel restriction port. Oil flow at the
plunger travel restriction port indicates that maximum plunger
travel has been reached. DO NOT exceed maximum plunger
extension with CLP cylinders.
WARNING: CLP cylinders do not have a stopring.
Use these cylinders only in vertical position with the
plunger pointing upwards.
WARNING: DO NOT EXCEED EQUIPMENT RATINGS.
Never attemp to lift a load weighing more than the
capacity of the cylinder. Overloading causes equipment
failure and possible personal injury. These cylinders are designed
for a maximum pressure of 700 bar [10.000 psi]. Do not connect
these cylinders to a pump with a higher pressure rating.
IMPORTANT: Use hydraulic gauges in each hydraulic
system to indicate safe operating loads.
WARNING: Off-center loads produce unnecessary
strain on cylinders. Avoid point loading. Distribute the
load evenly across the entire plunger surface.
Lock Nut
Plunger Travel
Restriction Port
