DESCRIPTION OF THE SAPHYR® PROCESSOR

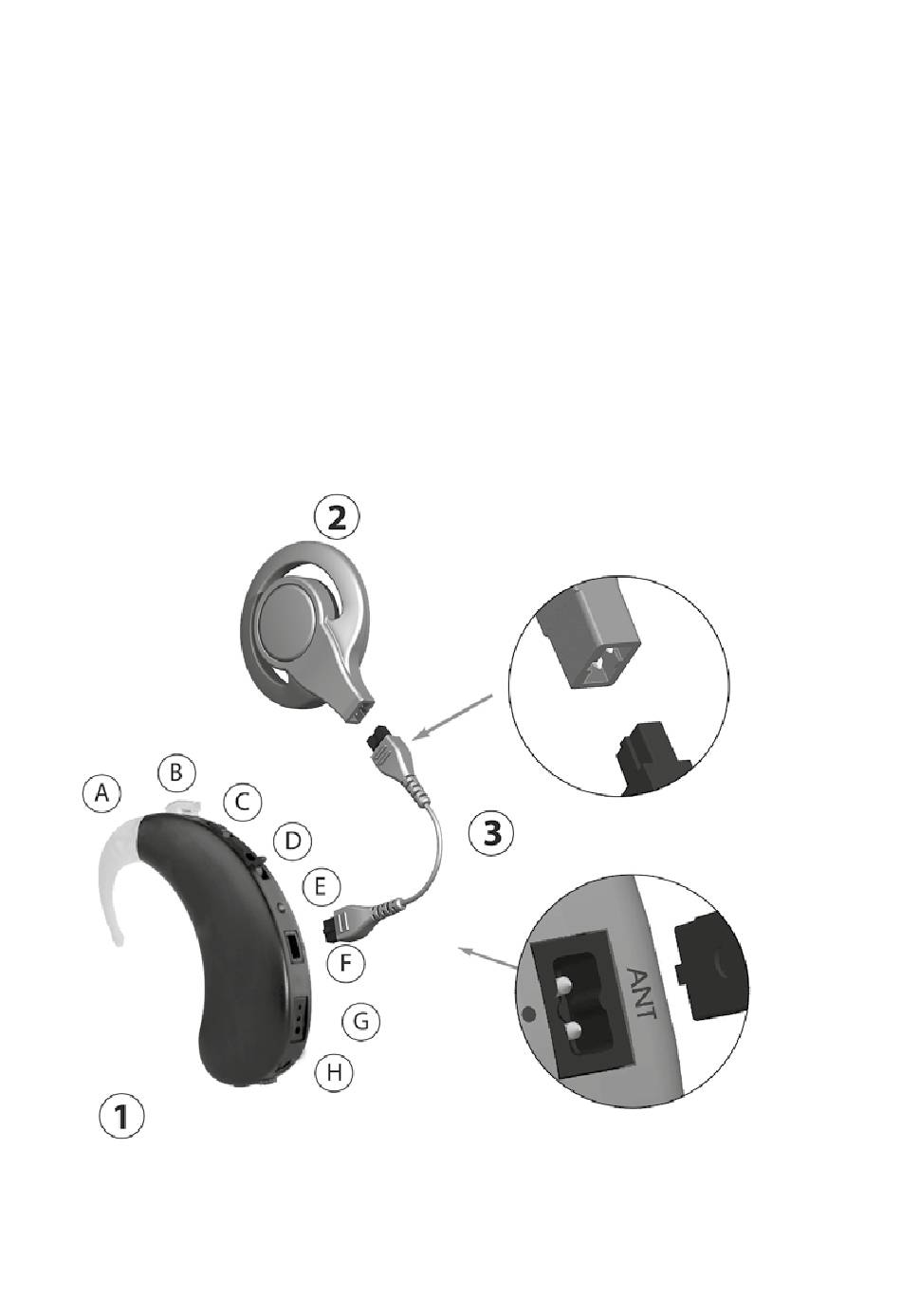

• Microphone 1 (A)
• Microphone 2 (B)
• Selector wheel with switch (C)
0: Turn off - 1: Position 1 - 2: Position 2 - 3: Position 3
• 4-position program selector (D):
P1: Program 1 - P2: Program 2 - P3: Program 3 - P4: Program 4
• Two-color indicator light (E)
• "ANT" socket (F): for connecting the antenna wire
• "AUX" socket (G): for connecting external accessories (FM system, earphones, etc.)
• Connection socket in order to program settings (H)
The Saphyr® SP and Saphyr® CX processors are visually distinguishable by their markings, how
the serial numbers are identified, and some of their accessories (antenna, magnet, and antenna
wire). The illustrations and descriptions of each product below explain these differences.
Saphyr® SP
Saphyr® SP processor
The serial number for your Saphyr® SP processor is located inside the battery compartment:
"N1495" for example (N = processor generation / XXXX = manufacturing no.).
You should write this number down and save it, as you may be asked for it later.
Antenna with keyed connector
Antenna wire with keyed connector
