Lector DIGICODE S-192 Bedienungsanleitung Seite 13

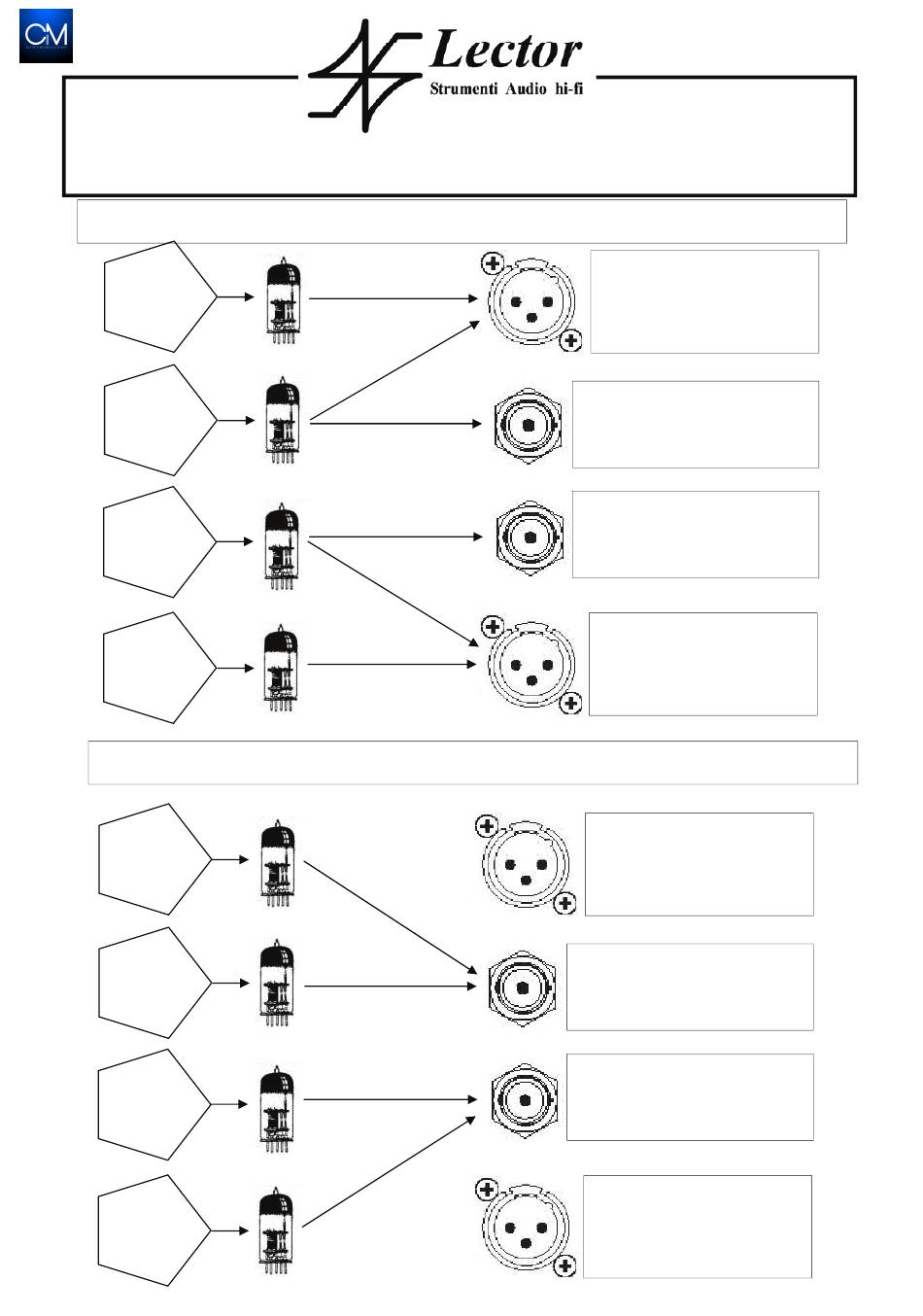

DIGICODE 704/2 & DIGICODE S-192 ( SETUP )
Dac -
R
Dac +
R
Dac +
L
Dac -
L
Full Unbalanced set up by internal dip sw as full phase out
Dac +
R
Dac +
R
Dac +
L
Dac +
L
Real Balanced set up
Output R
real balanced
RECHTER Kanal
Output R
unbalanced
RECHTER Kanal
Output L
unbalanced
LINKER Kanal
Output L
real balanced
LINKER Kanal
Mute XLR
mit Adapter
Output R
unbalanced
RECHTER Kanal
Output L
unbalanced
LINKER Kanal
Mute XLR
mit Adapter
