05 - Preparation for installation

EN
05.1 - Package contents
1

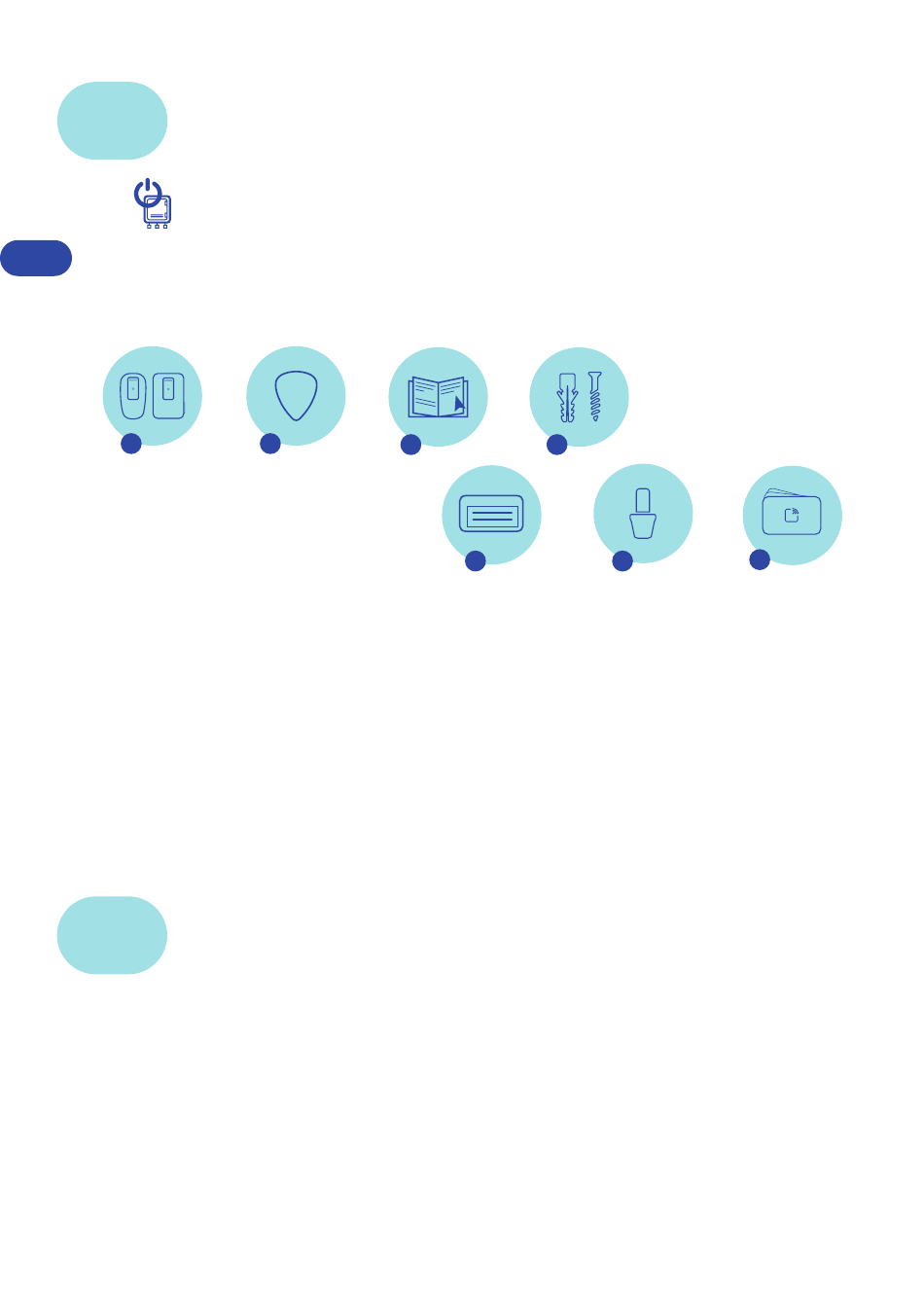

Inside the package is provided:
1. Dazebox
2. Opening key (guitar pick)
3. Installation manual
4. Ø5 screws and Ø8 dowels
5. Serial card and PUK
6. Bushing terminals
7. 3 RFID cards
05.2 - Equipment needed
To install Dazebox Home, the following equipment is required, which is not supplied:
1. Drill with wall bit Ø8 mm
2. Pencil, hammer, spirit level, tape measure
3. Phillips screwdriver

06 - System configuration

Installation requirements
Dazebox Home can be used in installations with the following earthing systems: TT, TN. For the correct operation of the charger
with all vehicles, it is necessary to verify that the earth resistance of the system is less than 100 Ω.
The Dazebox power supply line must be dedicated and protected by:
1. residual current circuit breaker type A 40A,
tripping current 30 mA;
2. magneto-thermal circuit breaker 40 A, curve C.
Note: Dazebox Home single-phase versions are only compatible with single-phase systems, while three-phase versions are
only compatible with three-phase systems.
8.
Installation should be carried out after disconnecting the power supply by acting on the
upstream switch.
