Programmable 2-channel light control
plant
1. Technical Data
- 24 V safety voltage
- Dimensions: 7.4 x 7.4 x 1.5 cm
2. Unpacking
On unpacking, please check the light control immediately for any damage. In case of any problems,
please contact your dealer directly.
3. Included in shipment
Qube control
•
Remote control
•
24 V power cable
•
4. Installation and programming

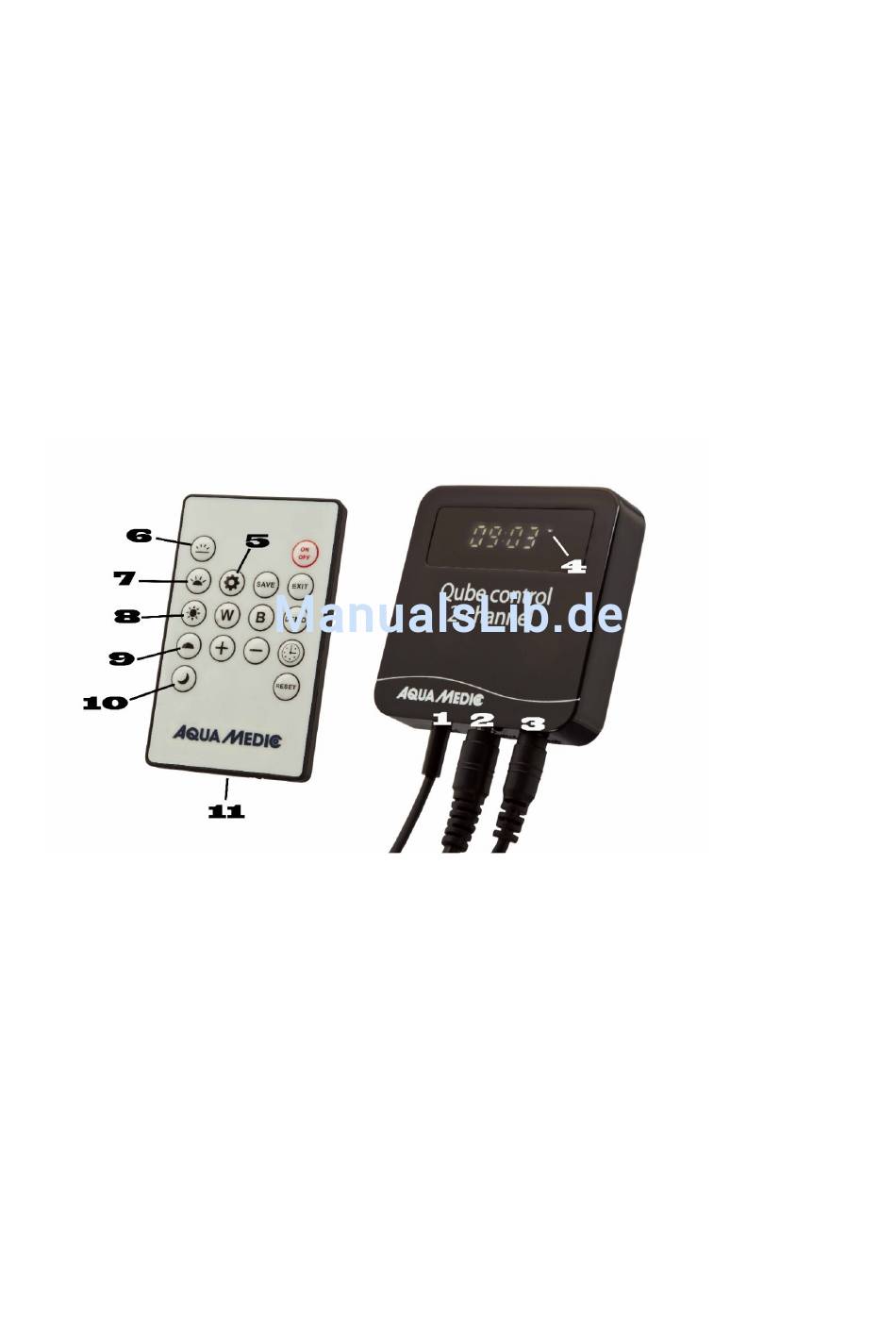

Fig. 1: Qube control and remote control
1 - Connection for control cable 0 – 10 V
power cable
2 - Connection for
power supply
3 - Connection for
4 - Program's symbol
5 - Adjust setting
6 - Twilight phase
7 - Sunrise
8 - Daylight phase
9 - Sunset
10 - Moonlight
11 - Removable battery compartment (rear)
6
(0 - 10 V) for Aqua Medic Qube 50 and Qube 50
to the Qube
