Mounting options

Mounting options

01 | Desktop installation

All of our monitors come ready to use on a desktop with an adjustable stand.

02 | Wall mounting

All of our monitors are ready to accommodate a 75mm or 100mm VESA mount with the help of four screw points located on the
back of each monitor and touchscreen.
Wall Mount Installation (using VWB1):
1. Begin by removing the monitor's stand. Take out the 4 screws that secure the stand to the screen.
2. Use the 4 screws from the monitor's stand to attach the VESA baseplate to the monitor.
3. Proceed to secure the other half of the VESA mount onto the wall where you intend to mount the monitor. Ensure the mount is

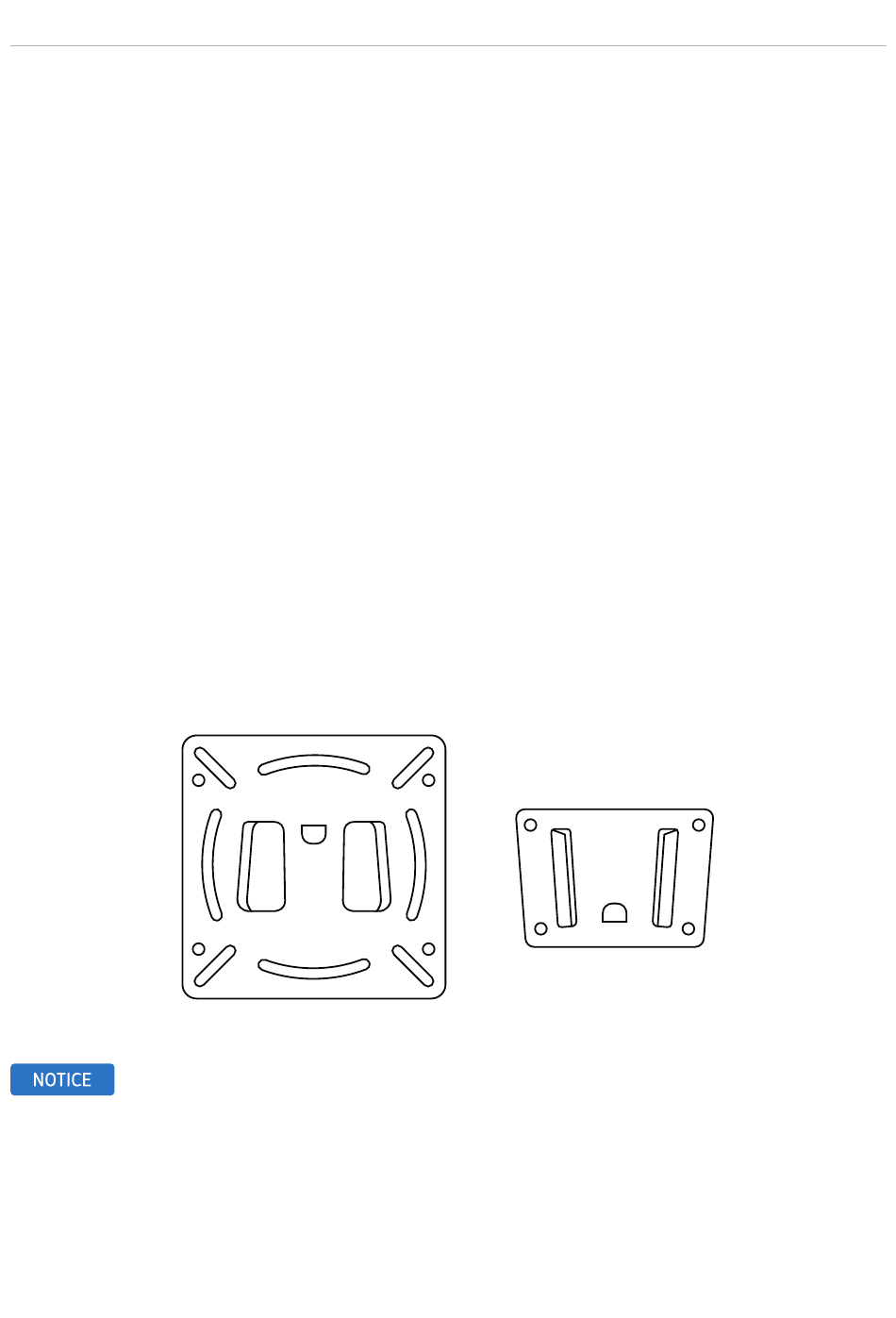

oriented correctly (refer to the image on the bottom right for guidance).
4. Once both sides of the wall mount bracket are secured, slide the section connected to the display over the part attached to the
wall to complete the installation. For added security, you have the option to fasten both parts together using a screw, preventing
the monitor from being easily lifted off.
NOTICE! The VWB1 wall bracket is optional and is not included as a standard accessory.
