Input Parameters:
Decsription
Nominal input voltage
Input frequency range
Maximum inrush current
* see datasheet for specific models
Output Parameters:
Model Vout (V)
DPP15-24
DPP25-5
DPP30-12
DPP30-24
DPP50-15
DPP50-24
DPP50-48
DPP100-24
Adjusting output voltage beyond the stated range may cause overvoltage protection (OVP) to operate, whereby the
output will latch off. To reset for normal operation simply adjust the potentiometer to reduce the output voltage to
within its range and cycle the input off then on.
All outputs are SELV except under the following circumstance: Outputs connected in series are non-SELV if the total
output voltage exceeds 60Vdc
If the total voltage of outputs connected in series exceed the 60Vdc SELV limit then all outputs must be considered
non-SELV.
Non-SELV outputs are hazardous and must not be made user accessible. Consideration must be given to service
engineers making inadvertent contact with the output terminals in the end equipment.
All outputs have functional spacing to earth, and due consideration must be given to this in the end product design.

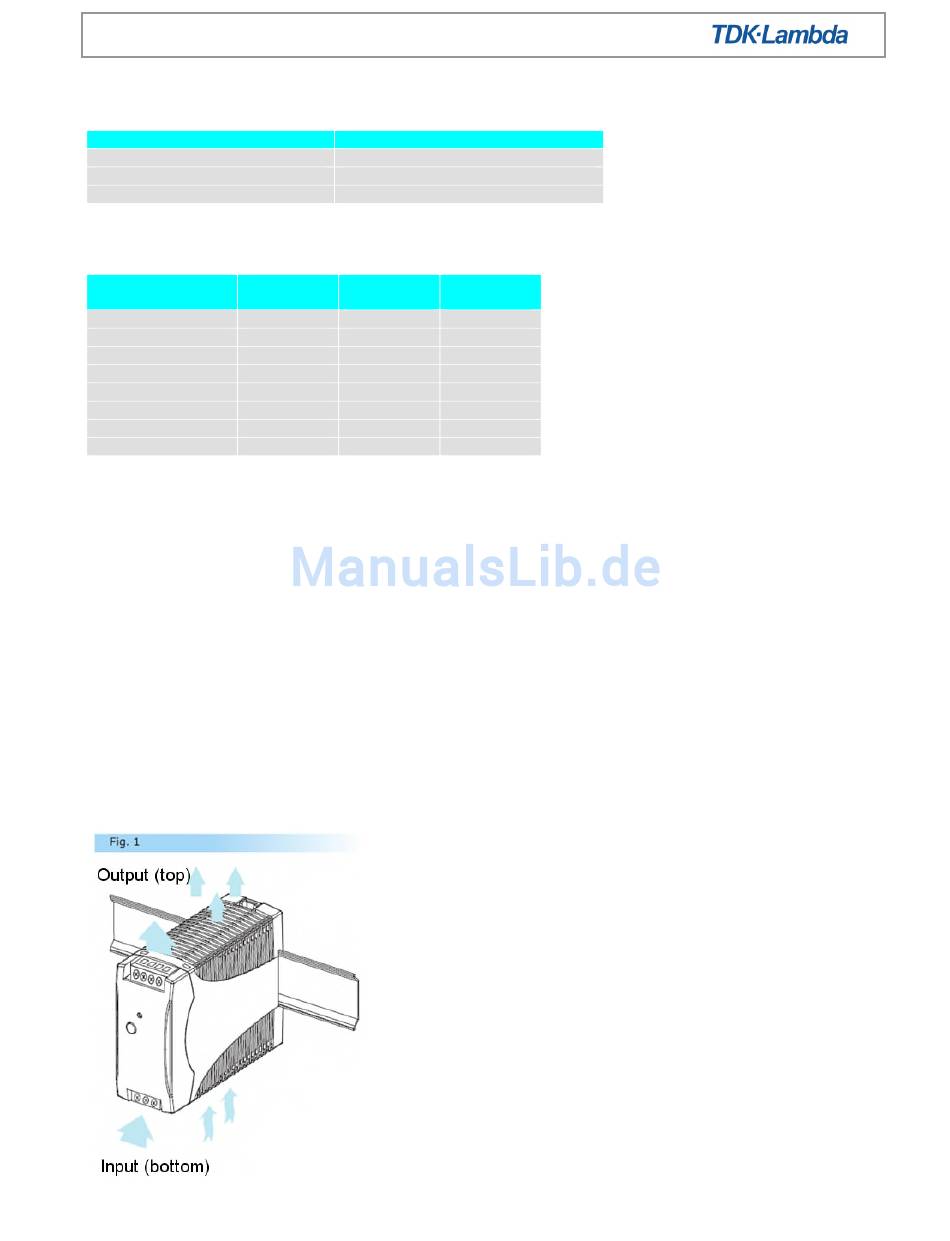

Cooling for unit
The unit must be mounted on a DIN rail and must not be inverted, the output connection uppermost.
Page 14 of 17
Operation
85 -264VAc
47 – 63Hz
55A*
Adjustment
range (V) current (A)
24 22.5 – 28.5
5 5 – 6
12 9.9 – 12.1
24 22.5 – 28.5
15 11.9 – 15.1
24 22.5 – 28.5
48 48 – 56
24 22.5 – 28.5
Output
0.63
5
2.5
1.3
3.4
2.1
1.05
4.2
23414 issue 03 Sept 2016
