ISTRUZIONI PER L'INSTALLAZIONE DELLA RUBINETTERIA
INSTRUCTIONS FOR THE INSTALLATION OF THE FAUCETS
INSTRUCTIONS POUR L'INSTALLATION DE LA ROBINETTERIE
MONTAGEANLEITUNGEN ZUR INSTALLATION DER ARMATUREN
INSTRUCCIONES PARA LA INSTALACION DE LA GRIFERIA
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
INSTRUKCJE INSTALACJI ARMATURY
Zucchetti Rubinetteria S.p.A.
Werbung
Verwandte Anleitungen für ZUCCHETTI Z94147
Inhaltszusammenfassung für ZUCCHETTI Z94147

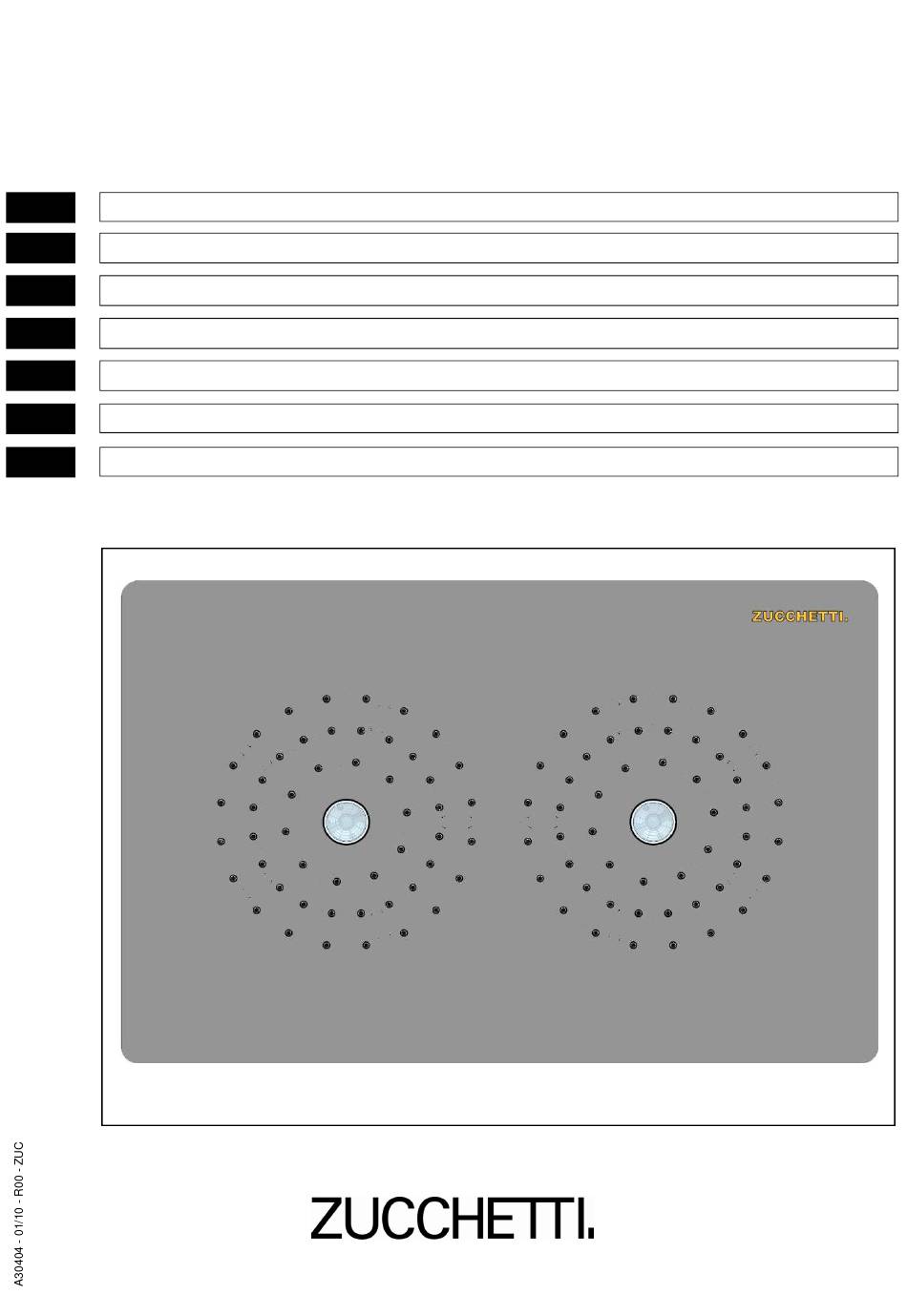

- Seite 1 Z94147 - Z94148 ISTRUZIONI PER L’INSTALLAZIONE DELLA RUBINETTERIA INSTRUCTIONS FOR THE INSTALLATION OF THE FAUCETS INSTRUCTIONS POUR L’INSTALLATION DE LA ROBINETTERIE MONTAGEANLEITUNGEN ZUR INSTALLATION DER ARMATUREN INSTRUCCIONES PARA LA INSTALACION DE LA GRIFERIA ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ INSTRUKCJE INSTALACJI ARMATURY Zucchetti Rubinetteria S.p.A.
- Seite 2 Z94147– Z94148 INSTALLAZIONE / INSTALLATION...
- Seite 3 If this occurs, loosen the cable grommet PG7 and the rear ring nut as shown in the figure, remove the LED plate, desolder it, solder the new one obtained from the market or from Zucchetti. At the end of this operation reposition the spotlight as before.
- Seite 4 Z94147– Z94148 INSTALLAZIONE / INSTALLATION G 1/2” G 1/2” G 1/2” G 1/2” 50L/’ 220 V...
- Seite 5 Z94147– Z94148 INSTALLAZIONE / INSTALLATION...
- Seite 6 Z94147 INSTALLAZIONE / INSTALLATION 20 L/’ G 1/2” G 1/2”...
- Seite 7 Z94147 INSTALLAZIONE / INSTALLATION...
- Seite 8 Z94148 INSTALLAZIONE / INSTALLATION 20 L/’ G 1/2” G 1/2”...
- Seite 9 Z94148 INSTALLAZIONE / INSTALLATION DATI TECNICI: Potenza max: 1 watt (Z94156) 3 watt (Z94155-Z94157) Lumen: 60 (Z94155) Lux: ad un metro 560 (Z94155) - a due metri 130 (Z94155) Tensione nominale: 2,7 volt Durata media della lampada a Led circa 100.000 ore INDICAZIONI DI MONTAGGIO: •...
